# Azure Monitor

### Description

The Azure Monitor Metrics action allows users to fetch and visualize metrics from Azure Monitor for a specified resource.

### Display Criteria

By default, this Action is disabled and when enabled will appear for all the `azurerm` resources. If you want to display this action only for certain resources, please check [display criteria](#display-criteria).

### Setup

This action requires the following variables as [Workspace Variables](https://docs.terrakube.io/user-guide/variables#workspace-specific-variables) or [Global Variables](https://docs.terrakube.io/user-guide/organizations/global-variables) in the Workspace Organization:

* `ARM_CLIENT_ID`: The Azure Client ID used for authentication.
* `ARM_CLIENT_SECRET`: The Azure Client Secret used for authentication.
* `ARM_TENANT_ID`: The Azure Tenant ID associated with your subscription.
* `ARM_SUBSCRIPTION_ID`: The Azure Subscription ID where the VM is located.

{% hint style="info" %}
The Client ID should have at least **Monitoring Reader** or **Reader** access on resource group or subscription.
{% endhint %}

### Usage

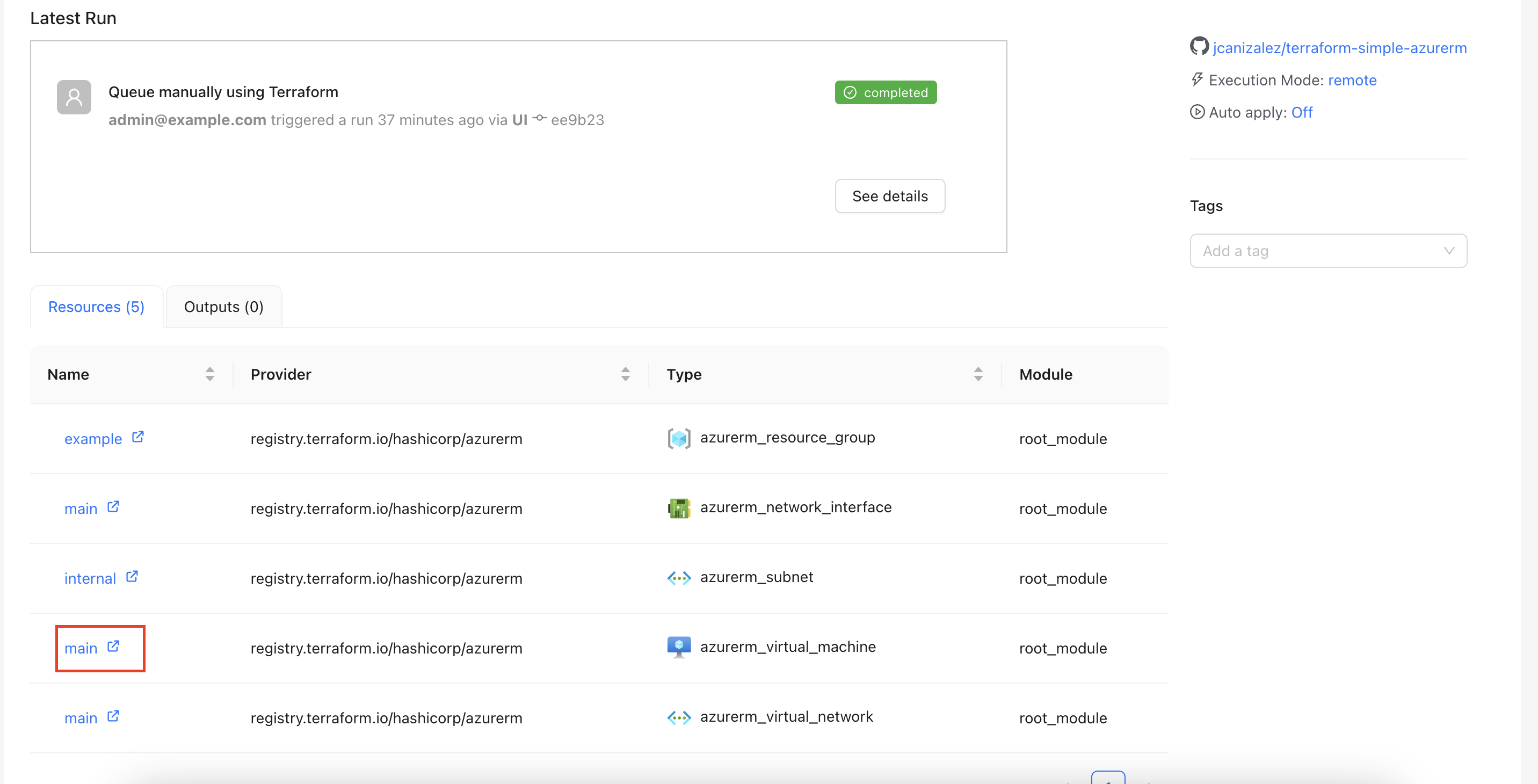

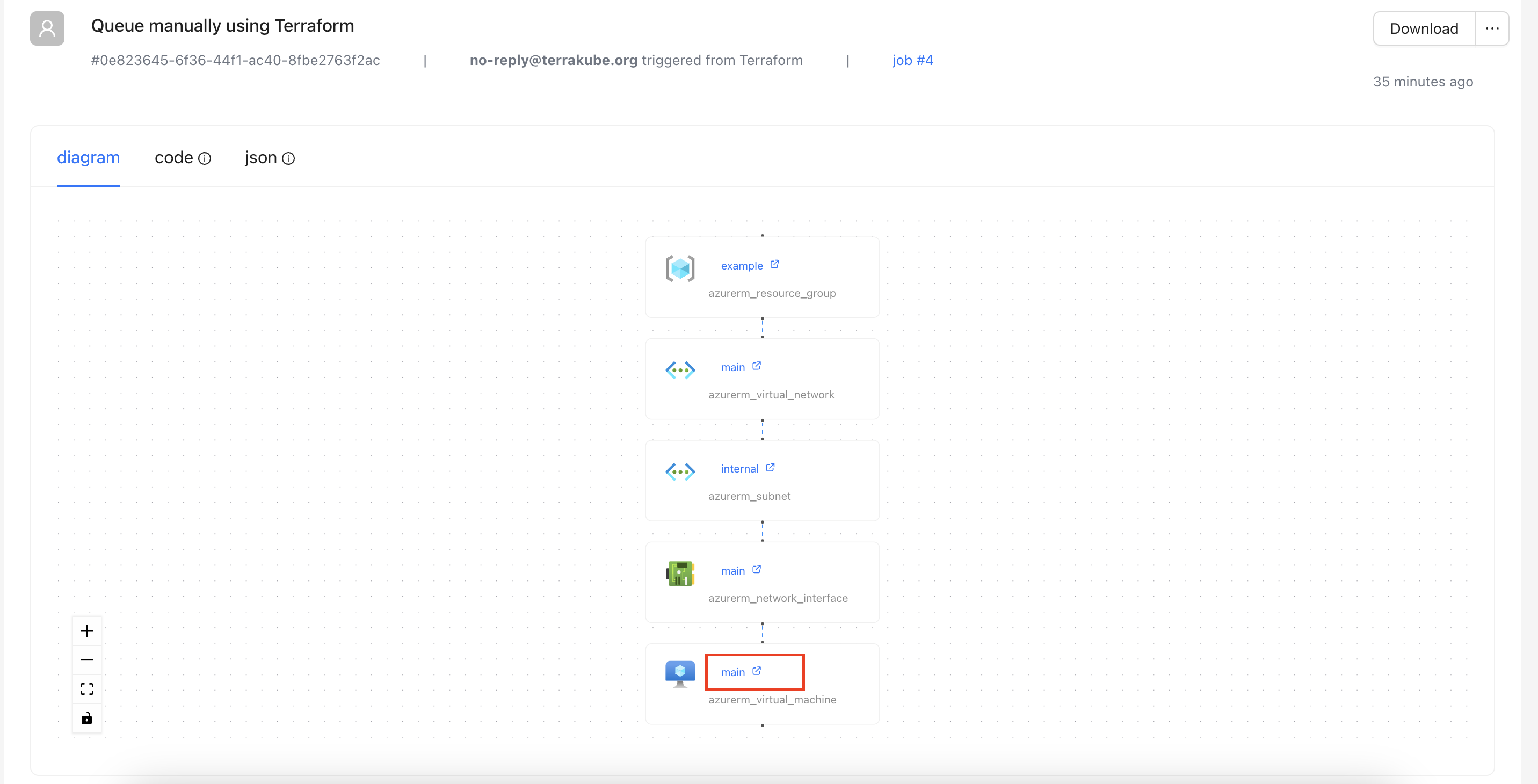

* Navigate to the `Workspace Overview` or the `Visual State` and click on a resource name.

<figure><img src="https://4014930676-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfAN3V983Y82_trlbcu%2Fuploads%2Fgit-blob-49f6e6461608af5dd24670981261715280988e97%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://4014930676-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfAN3V983Y82_trlbcu%2Fuploads%2Fgit-blob-a2b272541fbfb839191ddeea47bf1b8868ff3541%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

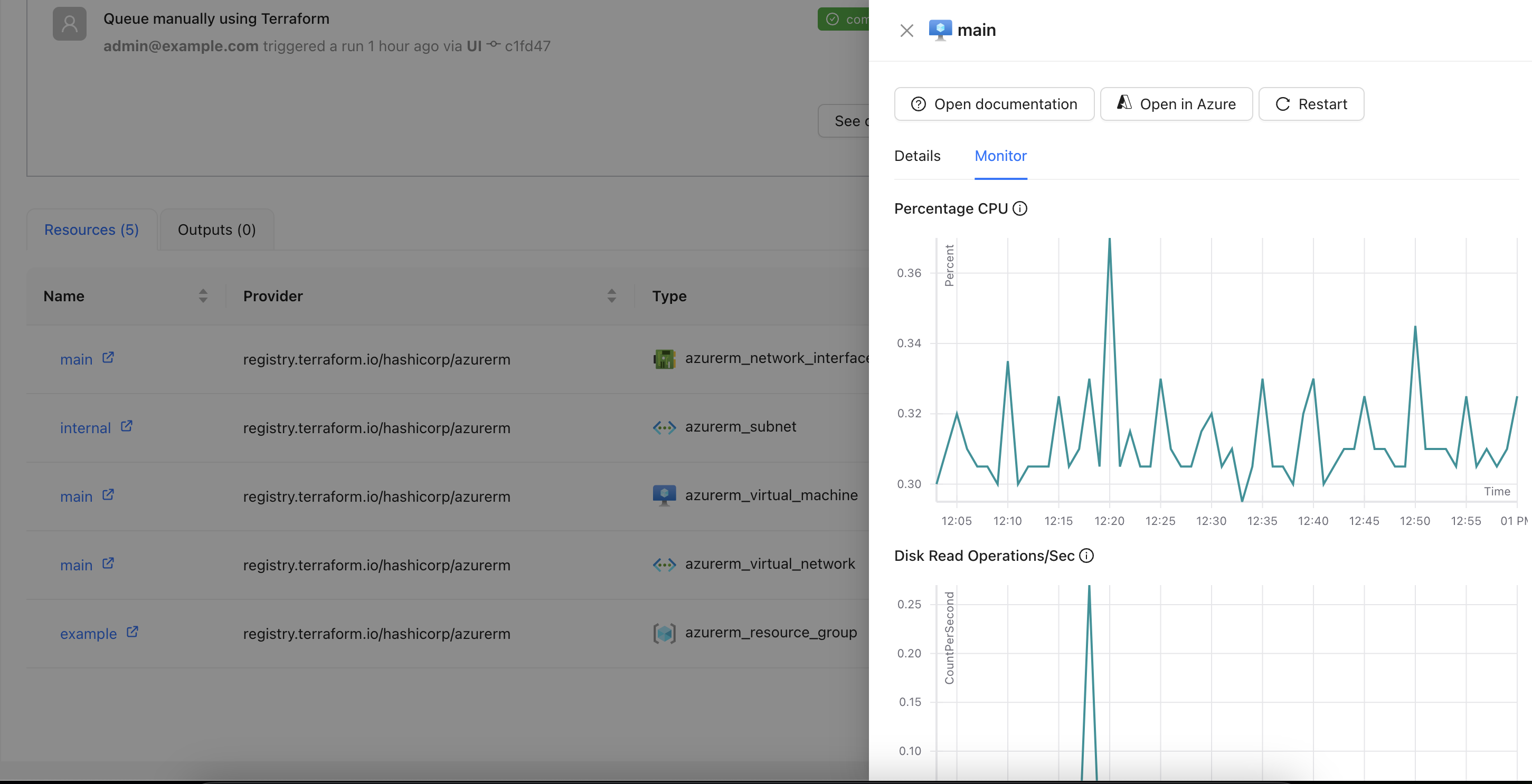

* Click the **Monitor** tab to view metrics for the selected resource.

<figure><img src="https://4014930676-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfAN3V983Y82_trlbcu%2Fuploads%2Fgit-blob-a0e0385c63573fd244231ed00a9edee45c3c2d3f%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

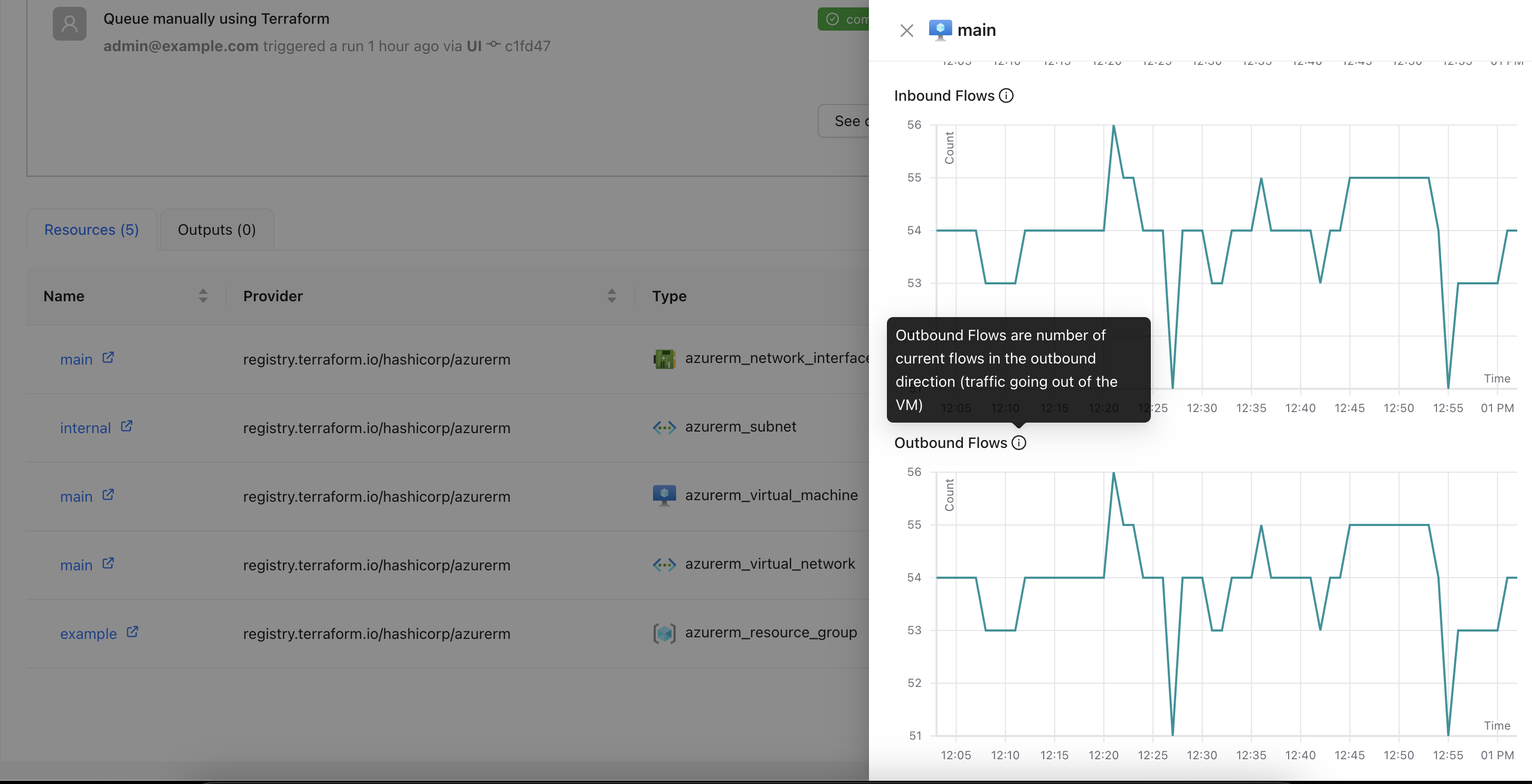

* You can view additional details for the metrics using the tooltip.

<figure><img src="https://4014930676-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfAN3V983Y82_trlbcu%2Fuploads%2Fgit-blob-5fe80fe735b65b67ffb4e642c96500703d86ba28%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

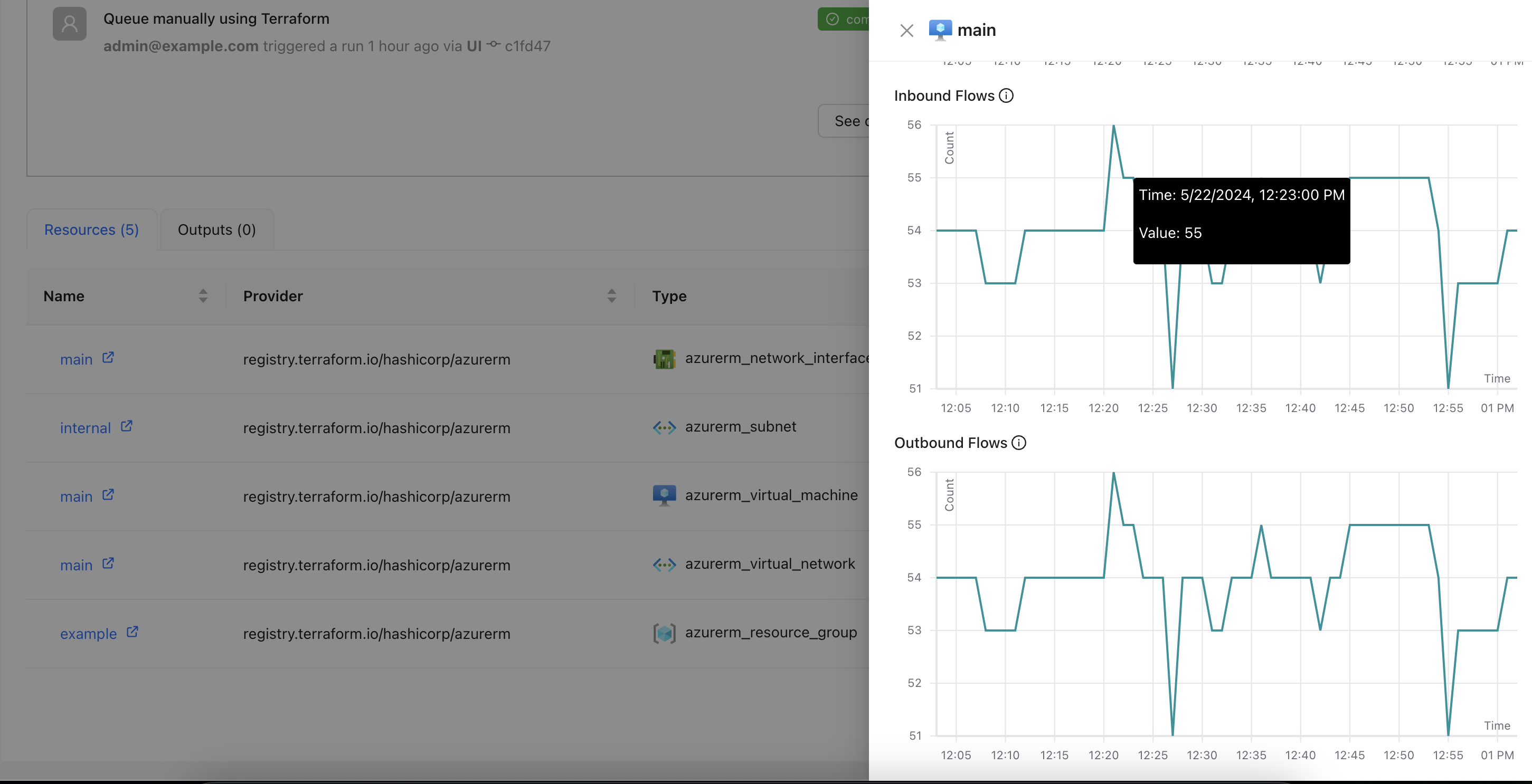

* You can see more details for each chart by navigating through it.

<figure><img src="https://4014930676-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfAN3V983Y82_trlbcu%2Fuploads%2Fgit-blob-16ac0f06d5a121d31ca0566ee6836d1a4a37798c%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>
