# Google Cloud Identity

{% hint style="warning" %}
Google Identity Authentication with Dex connector require Terrakube >= 2.6.0 and Helm Chart >= 2.0.0
{% endhint %}

### Requirements

* Google Cloud Identity [here](https://cloud.google.com/identity/docs/set-up-cloud-identity-admin#sign-up-for-cloud-identity-free)
* Gooble Storage Bucket

For this example lets image that you will be using the following domains to deploy Terrakube.

* registry.terrakube.gcp.com
* ui.terrakube.gcp.com
* api.terrakube.gcp.com

### Setup Google Authentication

You need to complete the Google authentication setup for Dex. You can found information in this [link](https://dexidp.io/docs/connectors/google/)

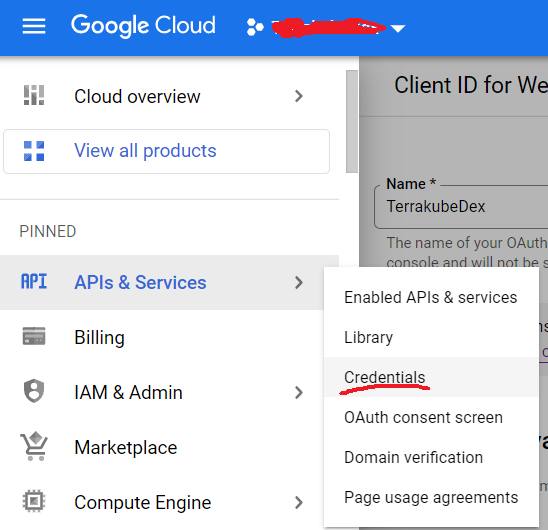

You need to go to your GCP projet and create a new OAuth Application you can follow this steps: firts select "APIs & Services => Credentials"

<figure><img src="/files/GoYqmF29lAiSRwTiebJ6" alt=""><figcaption></figcaption></figure>

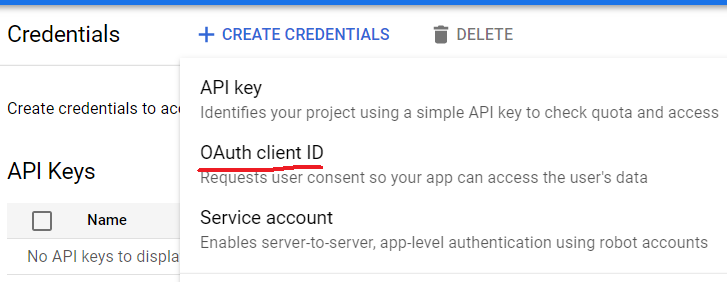

Once inside the "Credentials" page, you will have to create a new OAuth Client

<figure><img src="/files/2ttH6HrZUDjTTD85Gh83" alt=""><figcaption></figcaption></figure>

The OAuth application should look like this with the redirect URL "[https://api.terrakube.gcp.com/dex/callback](https://api.terrakube.docker.com/dex/callback)"

<figure><img src="/files/cO4W8OdMFEpLItJFA5mb" alt=""><figcaption></figcaption></figure>

For Google authentication we need to get the GCP groups so you need to complete [this setup](https://dexidp.io/docs/connectors/google/#fetching-groups-from-google).

Include the Domain Wide Delegation inside the admin consol <https://admin.google.com/> for the OAuth application

<figure><img src="/files/ByJZEC5V8hJNaxZIHqkR" alt=""><figcaption></figcaption></figure>

Using the following permission "<https://www.googleapis.com/auth/admin.directory.group.readonly>"

<figure><img src="/files/pVefCYjdqgrZAPHMCdcg" alt=""><figcaption></figcaption></figure>

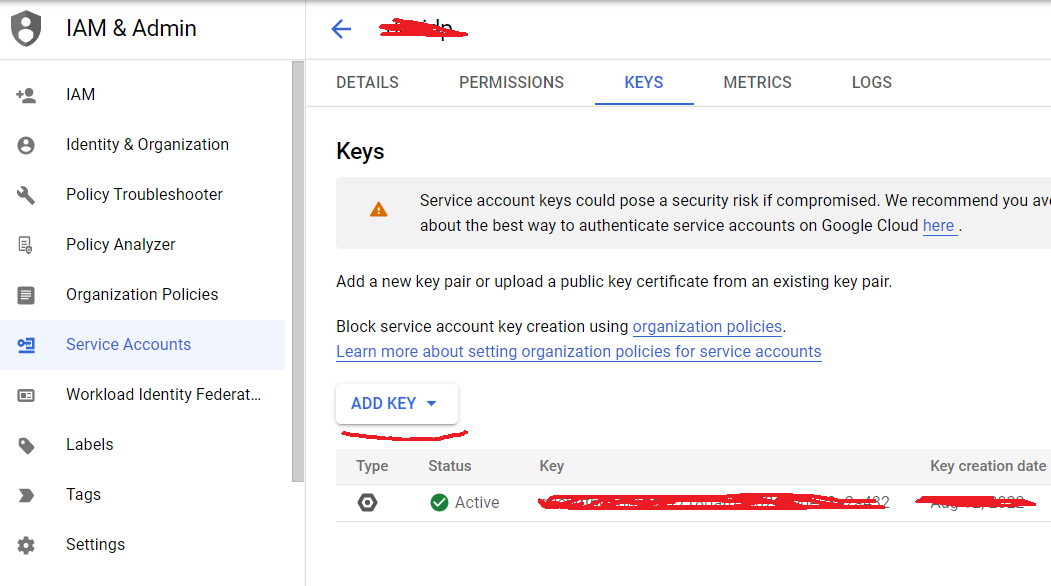

You can now generate the JSON credentials file for your application, you will use this file later in the helm chart.

<figure><img src="/files/enUofsVJaVpsi714Eq2h" alt=""><figcaption></figcaption></figure>

Now you can create the DEX configuration, you will use this config later when deploying the helm chart.

```
## Dex
dex:
  enabled: true
  config:
    issuer: https://api.terrakube.gcp.com/dex #<<CHANGE_THIS>>
    storage:
      type: memory
    oauth2:
      responseTypes: ["code", "token", "id_token"]
    web:
      allowedOrigins: ["*"]

    staticClients:
    - id: google
      redirectURIs:
      - 'https://ui.terrakube.gcp.com' #<<CHANGE_THIS>>
      - 'http://localhost:3000'
      - 'http://localhost:10001/login'
      - 'http://localhost:10000/login'
      - '/device/callback'
      name: 'google'
      public: true

    connectors:
    - type: google
      id: google
      name: google
      config:
        clientID: "<<CHANGE_THIS>>"
        clientSecret: "<<CHANGE_THIS>>"
        redirectURI: "https://api.terrakube.gcp.com/dex/callback"
        serviceAccountFilePath: "/etc/gcp/secret/gcp-credentials" # GCP CREDENTIAL FILE WILL BE IN THIS PATH
        adminEmail: "<<CHANGE_THIS>>"
```

The firt step is to clone the repository.

```
git clone https://github.com/AzBuilder/terrakube-helm-chart.git
```

Replace *<\<CHANGE\_THIS>>* with the real values, create the values.yaml file and run the helm install

```
## Global Name
name: "terrakube"

## Terrakube Security
security:
  adminGroup: "<<CHANGE_THIS>>" # The value should be a gcp group (format: group_name@yourdomain.com example: terrakube_admin@terrakube.io)
  patSecret: "<<CHANGE_THIS>>"  # Sample Key 32 characters z6QHX!y@Nep2QDT!53vgH43^PjRXyC3X
  internalSecret: "<<CHANGE_THIS>>" # Sample Key 32 characters Kb^8cMerPNZV6hS!9!kcD*KuUPUBa^B3
  dexClientId: "google"
  dexClientScope: "email openid profile offline_access groups"
  gcpCredentials: |
    ## GCP JSON CREDENTIALS for service account with API Scope https://www.googleapis.com/auth/admin.directory.group.readonly
    {
      "type": "service_account",
      "project_id": "",
      "private_key_id": "",
      "private_key": "",
      "client_email": "",
      "client_id": "",
      "auth_uri": "",
      "token_uri": "",
      "auth_provider_x509_cert_url": "",
      "client_x509_cert_url": ""
    }


## Terraform Storage
storage:
  gcp:
    projectId: "<<CHANGE_THIS>>"
    bucketName: "<<CHANGE_THIS>>"
    credentials: |
      ## GCP JSON CREDENTIALS for service account with access to write to the storage bucket
      {
        "type": "service_account",
        "project_id": "",
        "private_key_id": "",
        "private_key": "",
        "client_email": "",
        "client_id": "",
        "auth_uri": "",
        "token_uri": "",
        "auth_provider_x509_cert_url": "",
        "client_x509_cert_url": ""
      }

## Dex
dex:
  enabled: true
  config:
    issuer: https://api.terrakube.gcp.com/dex #<<CHANGE_THIS>>
    storage:
      type: memory
    oauth2:
      responseTypes: ["code", "token", "id_token"]
    web:
      allowedOrigins: ["*"]

    staticClients:
    - id: google
      redirectURIs:
      - 'https://ui.terrakube.gcp.com' #<<CHANGE_THIS>>
      - 'http://localhost:3000'
      - 'http://localhost:10001/login'
      - 'http://localhost:10000/login'
      - '/device/callback'
      name: 'google'
      public: true

    connectors:
    - type: google
      id: google
      name: google
      config:
        clientID: "<<CHANGE_THIS>>"
        clientSecret: "<<CHANGE_THIS>>"
        redirectURI: "https://api.terrakube.gcp.com/dex/callback"
        serviceAccountFilePath: "/etc/gcp/secret/gcp-credentials" # GCP CREDENTIAL FILE WILL BE IN THIS PATH
        adminEmail: "<<CHANGE_THIS>>"

## API properties
api:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"
  properties:
    databaseType: "H2"

## Executor properties
executor:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"
  properties:
    toolsRepository: "https://github.com/AzBuilder/terrakube-extensions"
    toolsBranch: "main"

## Registry properties
registry:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"

## UI Properties
ui:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"

## Ingress properties
ingress:
  useTls: true
  ui:
    enabled: true
    domain: "terrakube-ui.yourdomain.com"
    path: "/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      cert-manager.io/cluster-issuer: letsencrypt
  api:
    enabled: true
    domain: "terrakube-api.yourdomain.com"
    path: "/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/configuration-snippet: "proxy_set_header Authorization $http_authorization;"
      cert-manager.io/cluster-issuer: letsencrypt
  registry:
    enabled: true
    domain: "terrakube-reg.yourdomain.com"
    path: "/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/configuration-snippet: "proxy_set_header Authorization $http_authorization;"
      cert-manager.io/cluster-issuer: letsencrypt
  dex:
    enabled: true
    path: "/dex/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/configuration-snippet: "proxy_set_header Authorization $http_authorization;"
      cert-manager.io/cluster-issuer: letsencrypt
```

Run the installation

```bash
helm install --debug --values ./values.yaml terrakube ./terrakube-helm-chart/ -n terrakube
```

{% hint style="warning" %}
For any question or feedback please open an issue in our [helm chart repository](https://github.com/AzBuilder/terrakube-helm-chart)
{% endhint %}


---
