Azure Active Directory

Azure Authentication with Dex Connecor require Terrakube >= 2.6.0 and Helm Chart >= 2.0.0
Requirements
Azure Active Directory here​
Azure Storage Account
For this example lets image that you will be using the following domains to deploy Terrakube.
registry.terrakube.azure.com
ui.terrakube.azure.com
api.terrakube.azure.com
Setup Azure Authentication
You need to complete the Azure authentication setup for Dex. You can found information in this link​
You need to go to your Azure and create a new Application
After the application is created you need to add the redirect URL.

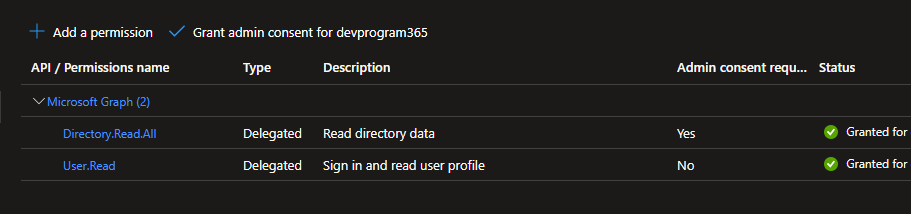

You will also need to add the permission Directory.Read.All and ask a Azure administrator to approve the permission.
Now you can create the DEX configuration, you will use this config later when deploying the helm chart.
## Dex
dex:
  config:
    issuer: https://api.terrakube.azure.com/dex
    storage:
      type: memory
    oauth2:
      responseTypes: ["code", "token", "id_token"]
      skipApprovalScreen: true
    web:
      allowedOrigins: ['*']

    staticClients:
    - id: microsoft
      redirectURIs:
      - 'https://ui.terrakube.azure.com'
      - 'http://localhost:10001/login'
      - 'http://localhost:10000/login'
      - '/device/callback'
      name: 'microsoft'
      public: true
​
    connectors:
    - type: microsoft
      id: microsoft
      name: microsoft
      config:
        clientID: "<<CHANGE_THIS>>"
        clientSecret: "<<CHANGE_THIS>>"
        redirectURI: "https://api.terrakube.azure.com/dex/callback"
        tenant: "<<CHANGE_THIS>>"
The firt step is to clone the repository.
git clone https://github.com/AzBuilder/terrakube-helm-chart.git
Replace <<CHANGE_THIS>> with the real values, create the values.yaml file and run the helm install
## Global Name
name: "terrakube"
​
## Terrakube Security
security:
  adminGroup: "<<CHANGE_THIS>>" # The value should be a valida azure ad group (example: TERRAKUBE_ADMIN)
  patSecret: "<<CHANGE_THIS>>"  # Sample Key 32 characters z6QHX!y@Nep2QDT!53vgH43^PjRXyC3X
  internalSecret: "<<CHANGE_THIS>>" # Sample Key 32 characters Kb^8cMerPNZV6hS!9!kcD*KuUPUBa^B3
  dexClientId: "microsoft"
  dexClientScope: "email openid profile offline_access groups"

## Terraform Storage
storage:
  azure:
    storageAccountName: "XXXXXXX" # <<CHANGE_THIS>>
    storageAccountResourceGroup: "XXXXXXX" # <<CHANGE_THIS>>
    storageAccountAccessKey: "XXXXXXX" # <<CHANGE_THIS>>
​
## Dex
dex:
  config:
    issuer: https://api.terrakube.azure.com/dex
    storage:
      type: memory
    oauth2:
      responseTypes: ["code", "token", "id_token"]
      skipApprovalScreen: true
    web:
      allowedOrigins: ['*']

    staticClients:
    - id: microsoft
      redirectURIs:
      - 'https://ui.terrakube.azure.com'
      - 'http://localhost:10001/login'
      - 'http://localhost:10000/login'
      - '/device/callback'
      name: 'microsoft'
      public: true
​
    connectors:
    - type: microsoft
      id: microsoft
      name: microsoft
      config:
        clientID: "<<CHANGE_THIS>>"
        clientSecret: "<<CHANGE_THIS>>"
        redirectURI: "https://api.terrakube.azure.com/dex/callback"
        tenant: "<<CHANGE_THIS>>"
​
## API properties
api:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"
  properties:
    databaseType: "H2"
​
## Executor properties
executor:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"
  properties:
    toolsRepository: "https://github.com/AzBuilder/terrakube-extensions"
    toolsBranch: "main"
​
## Registry properties
registry:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"
​
## UI Properties
ui:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"
​
## Ingress properties
ingress:
  useTls: true
  ui:
    enabled: true
    domain: "ui.terrakube.azure.com"
    path: "/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      cert-manager.io/cluster-issuer: letsencrypt
  api:
    enabled: true
    domain: "api.terrakube.azure.com"
    path: "/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/configuration-snippet: "proxy_set_header Authorization $http_authorization;"
      cert-manager.io/cluster-issuer: letsencrypt
  registry:
    enabled: true
    domain: "registry.terrakube.azure.com"
    path: "/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/configuration-snippet: "proxy_set_header Authorization $http_authorization;"
      cert-manager.io/cluster-issuer: letsencrypt
  dex:
    enabled: true
    path: "/dex/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/configuration-snippet: "proxy_set_header Authorization $http_authorization;"
      cert-manager.io/cluster-issuer: letsencrypt
​
Run the installation
helm install --debug --values ./values.yaml terrakube ./terrakube-helm-chart/ -n terrakube
For any question or feedback please open an issue in our helm chart repository​
