Amazon Cognito

AWS Cognito Authentication with Dex Connecor require Terrakube >= 2.6.0 and Helm Chart >= 2.0.0
Requirements
AWS Cognito
AWS S3 Bucket
For this example lets image that you will be using the following domains to deploy Terrakube.
registry.terrakube.aws.com
ui.terrakube.aws.com
api.terrakube.aws.com
Setup AWS Cognito Authentication
You need to complete the AWS Cognito authentication setup for Dex using the OIDC connector. You can found information in this link​
You need to create a new Cognito user pool
You can keep the default values

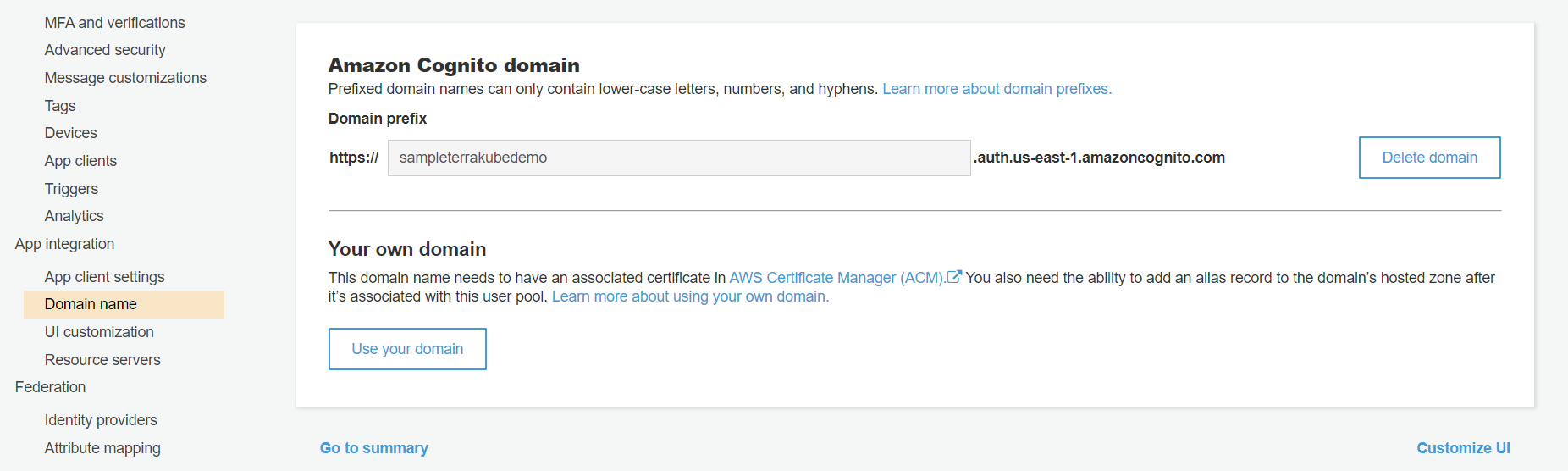

Add the domain name to cognito

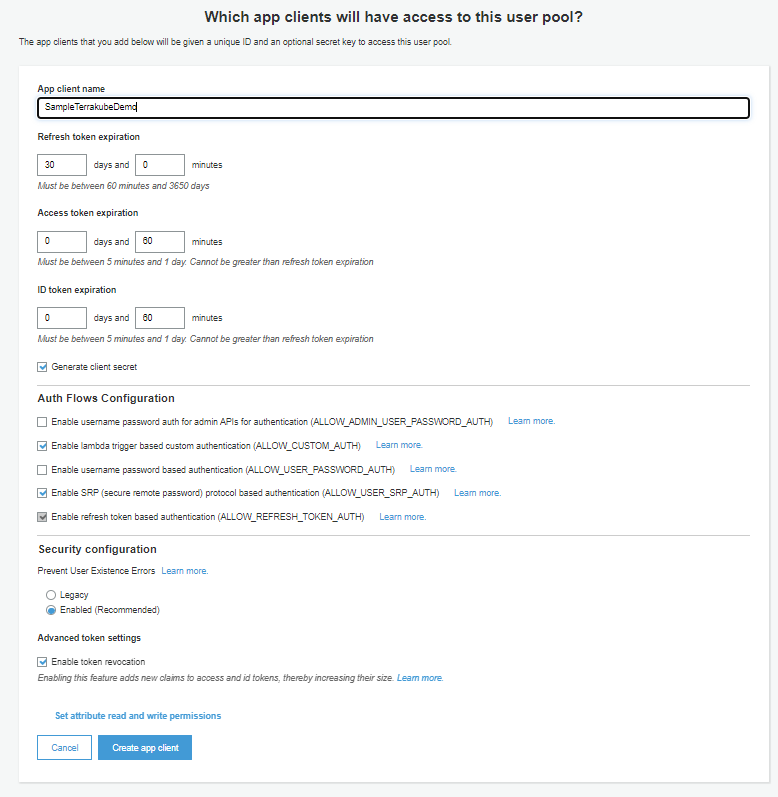

Once the user pool is created you will need to create a new application.

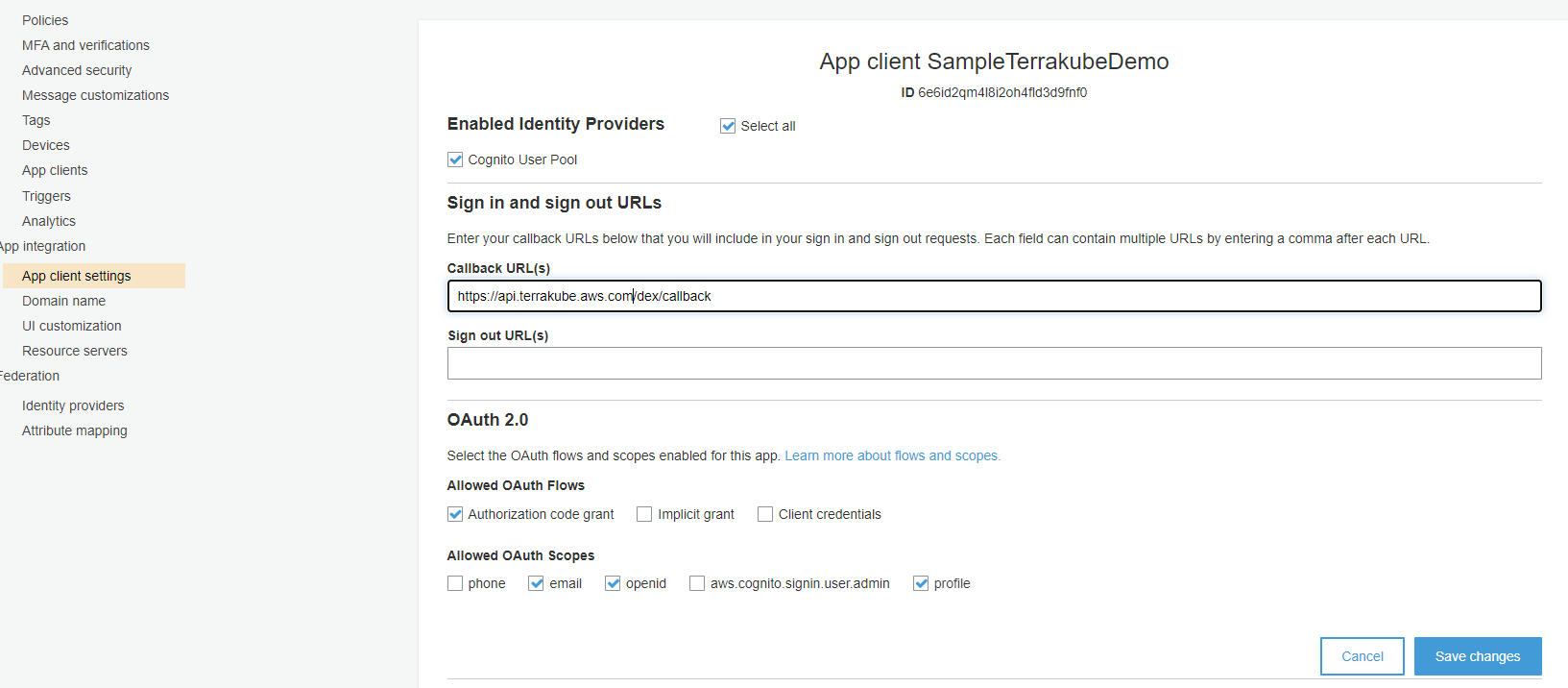

Update the application configuration and update the redirect URL configuration.
Now you can create the DEX configuration, you will use this config later when deploying the helm chart.
## Dex
dex:
  config:
    issuer: https://terrakube-api.yourdomain.com/dex #<<CHANGE_THIS>>
    storage:
      type: memory
    oauth2:
      responseTypes: ["code", "token", "id_token"]
      skipApprovalScreen: true
    web:
      allowedOrigins: ["*"]
​
    staticClients:
    - id: cognito
      redirectURIs:
      - 'https://ui.yourdomain.com' #<<CHANGE_THIS>>
      - 'http://localhost:3000'
      - 'http://localhost:10001/login'
      - 'http://localhost:10000/login'
      - '/device/callback'
      name: 'cognito'
      public: true
​
    connectors:
    - type: oidc
      id: cognito
      name: cognito
      config:
        issuer: "https://cognito-idp.XXXXX.amazonaws.com/XXXXXXX" #<<CHANGE_THIS>>
        clientID: "XXXX" #<<CHANGE_THIS>>
        clientSecret: "XXXXX" #<<CHANGE_THIS>>
        redirectURI: "https://terrakube-api.yourdomain.com/dex/callback" #<<CHANGE_THIS>>
        scopes:
          - openid
          - email
          - profile
        insecureSkipEmailVerified: true
        insecureEnableGroups: true
        userNameKey: "cognito:username"
        claimMapping:
          groups: "cognito:groups"
The firt step is to clone the repository.
git clone https://github.com/AzBuilder/terrakube-helm-chart.git
Replace <<CHANGE_THIS>> with the real values, create the values.yaml file and run the helm install
## Global Name
name: "terrakube"
​
## Terrakube Security
security:
  adminGroup: "<<CHANGE_THIS>>" # The value should be a valida azure ad group (example: TERRAKUBE_ADMIN)
  patSecret: "<<CHANGE_THIS>>"  # Sample Key 32 characters z6QHX!y@Nep2QDT!53vgH43^PjRXyC3X
  internalSecret: "<<CHANGE_THIS>>" # Sample Key 32 characters Kb^8cMerPNZV6hS!9!kcD*KuUPUBa^B3
  dexClientId: "cognito"
  dexClientScope: "email openid profile offline_access groups"

## Terraform Storage
storage:
  aws:
    accessKey: "XXXXX" #<<CHANGE_THIS>>
    secretKey: "XXXXX" #<<CHANGE_THIS>>
    bucketName: "XXXXX" #<<CHANGE_THIS>>
    region: "XXXXX" #<<CHANGE_THIS>>
​
## Dex
dex:
  config:
    issuer: https://terrakube-api.yourdomain.com/dex #<<CHANGE_THIS>>
    storage:
      type: memory
    oauth2:
      responseTypes: ["code", "token", "id_token"]
      skipApprovalScreen: true
    web:
      allowedOrigins: ["*"]
​
    staticClients:
    - id: cognito
      redirectURIs:
      - 'https://ui.yourdomain.com' #<<CHANGE_THIS>>
      - 'http://localhost:3000'
      - 'http://localhost:10001/login'
      - 'http://localhost:10000/login'
      - '/device/callback'
      name: 'cognito'
      public: true
​
    connectors:
    - type: oidc
      id: cognito
      name: cognito
      config:
        issuer: "https://cognito-idp.XXXXX.amazonaws.com/XXXXXXX" #<<CHANGE_THIS>>
        clientID: "XXXX" #<<CHANGE_THIS>>
        clientSecret: "XXXXX" #<<CHANGE_THIS>>
        redirectURI: "https://terrakube-api.yourdomain.com/dex/callback" #<<CHANGE_THIS>>
        scopes:
          - openid
          - email
          - profile
        insecureSkipEmailVerified: true
        insecureEnableGroups: true
        userNameKey: "cognito:username"
        claimMapping:
          groups: "cognito:groups"
​
## API properties
api:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"
  properties:
    databaseType: "H2"
​
## Executor properties
executor:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"
  properties:
    toolsRepository: "https://github.com/AzBuilder/terrakube-extensions"
    toolsBranch: "main"
​
## Registry properties
registry:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"
​
## UI Properties
ui:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"
​
## Ingress properties
ingress:
  useTls: true
  ui:
    enabled: true
    domain: "ui.terrakube.azure.com"
    path: "/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      cert-manager.io/cluster-issuer: letsencrypt
  api:
    enabled: true
    domain: "api.terrakube.azure.com"
    path: "/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/configuration-snippet: "proxy_set_header Authorization $http_authorization;"
      cert-manager.io/cluster-issuer: letsencrypt
  registry:
    enabled: true
    domain: "registry.terrakube.azure.com"
    path: "/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/configuration-snippet: "proxy_set_header Authorization $http_authorization;"
      cert-manager.io/cluster-issuer: letsencrypt
  dex:
    enabled: true
    path: "/dex/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/configuration-snippet: "proxy_set_header Authorization $http_authorization;"
      cert-manager.io/cluster-issuer: letsencrypt
​
Run the installation
helm install --debug --values ./values.yaml terrakube ./terrakube-helm-chart/ -n terrakube
For any question or feedback please open an issue in our helm chart repository​
