Getting started

You can have a complete development environment to test the API with one click with Gitpod using the following button.
Gitpod ready-to-code
Gitpod is free for 50 hours every month, so you dont have to worry for testing the application.

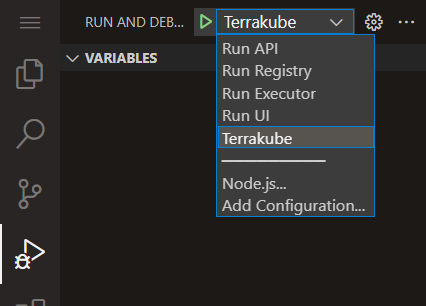

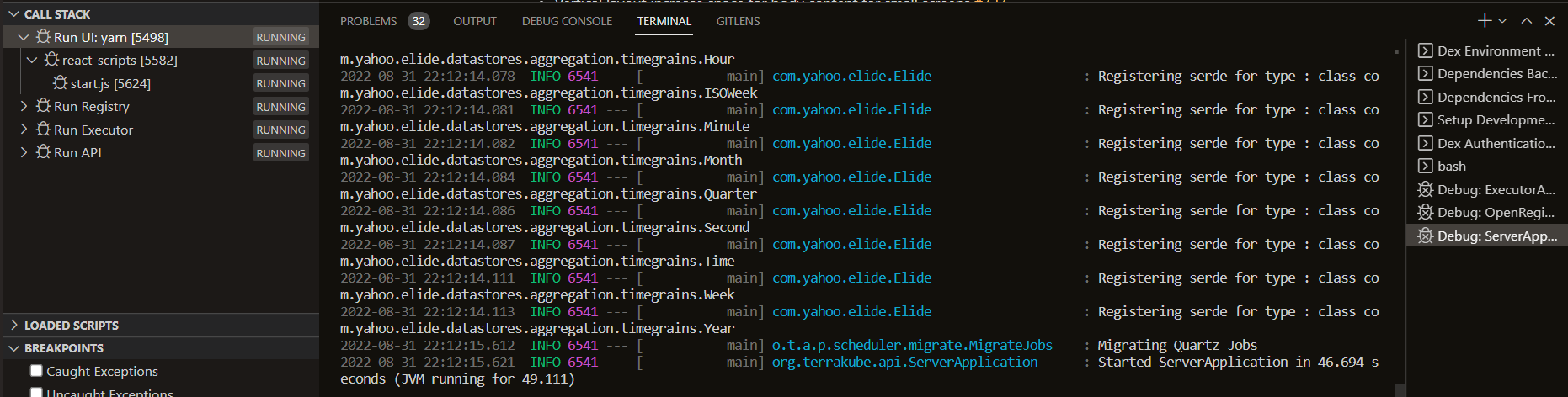

After a couple of seconds the Gitpod environment will be ready and you will need to start the API, to do this just select "Run and Debug" in the left menu in VS Code and start the application using the "Terrakube" option
After some seconds Terrakube API will be up and running.

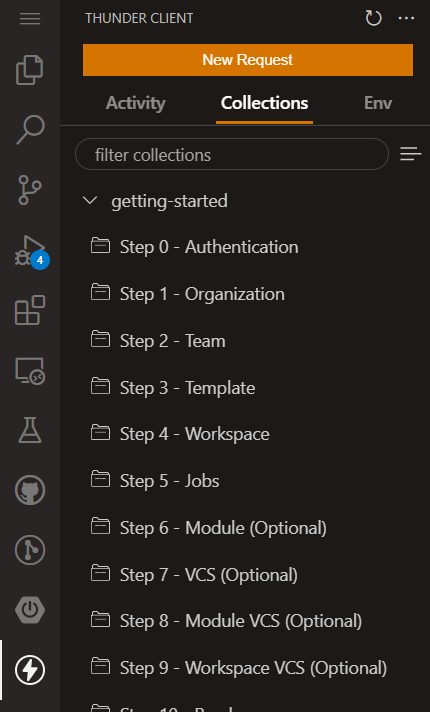

Now you can select the "Thunder Client" and open the "Getting Started" collection to test the API

Authentication

The firt step wil be to get the authorization token for the Terrakube API.

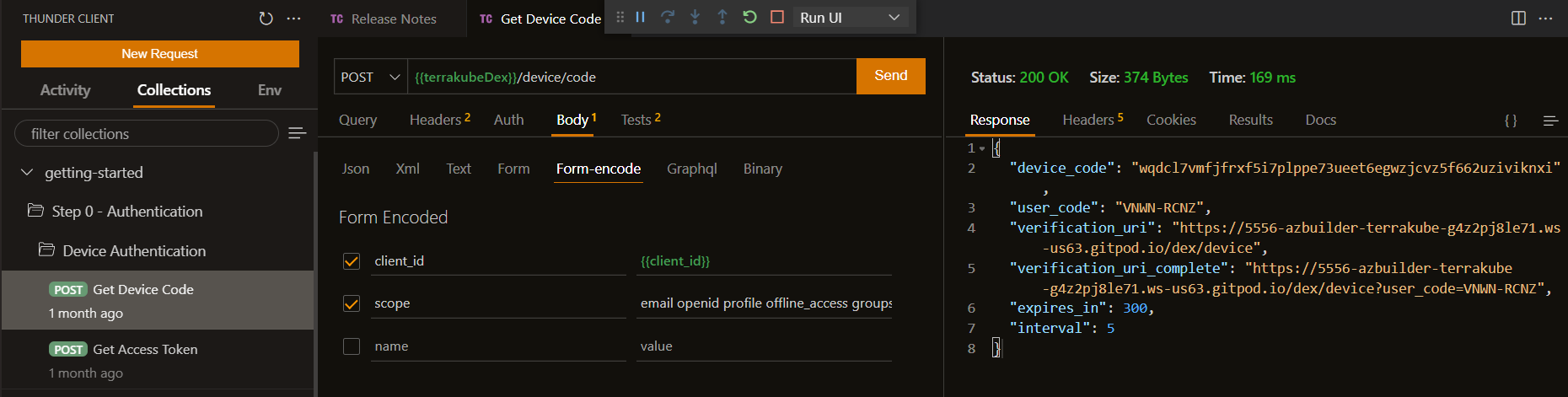

Execute the request "Get Device Code" and open the URL in field "verification_uri_complete" inside the response to get the authentication token

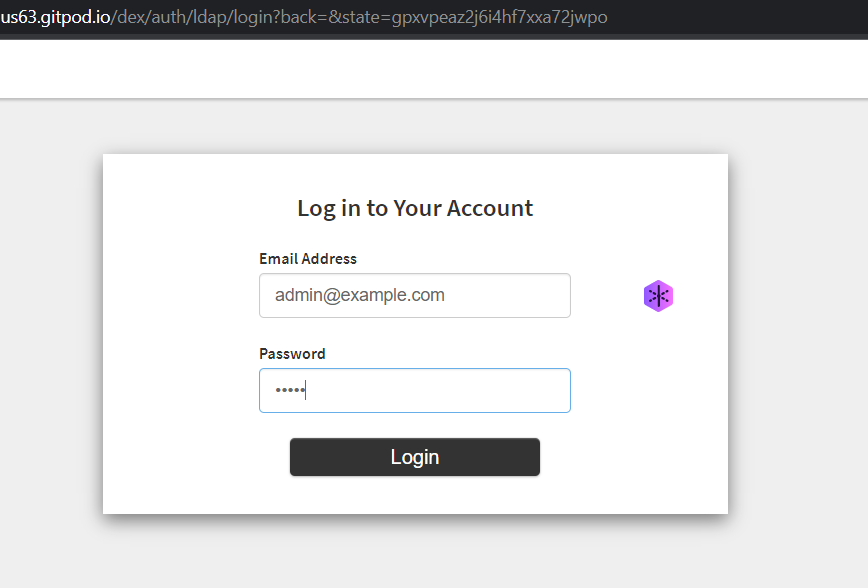

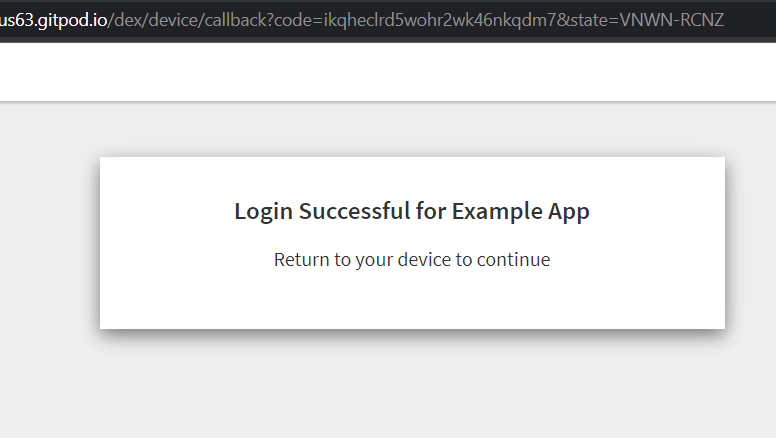

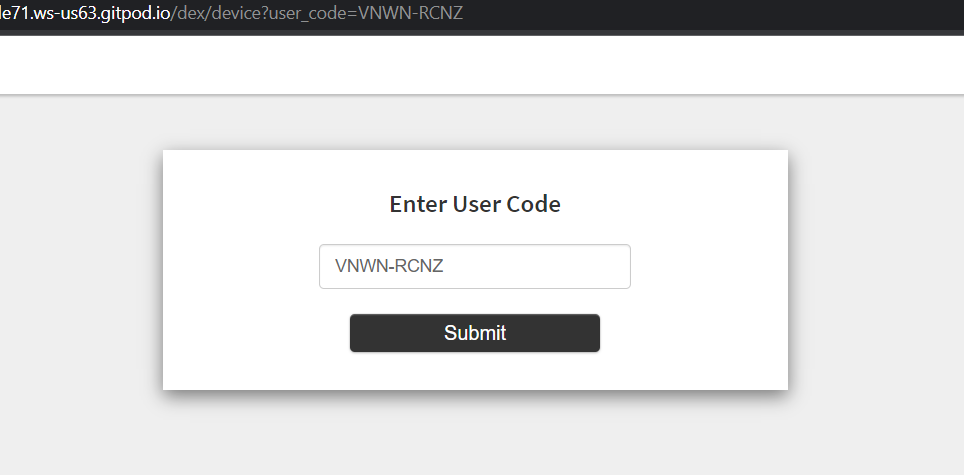

When you open the "verification_uri_complete" field you should see a similar page.
Authenticate using the user "[email protected]" with password "admin"

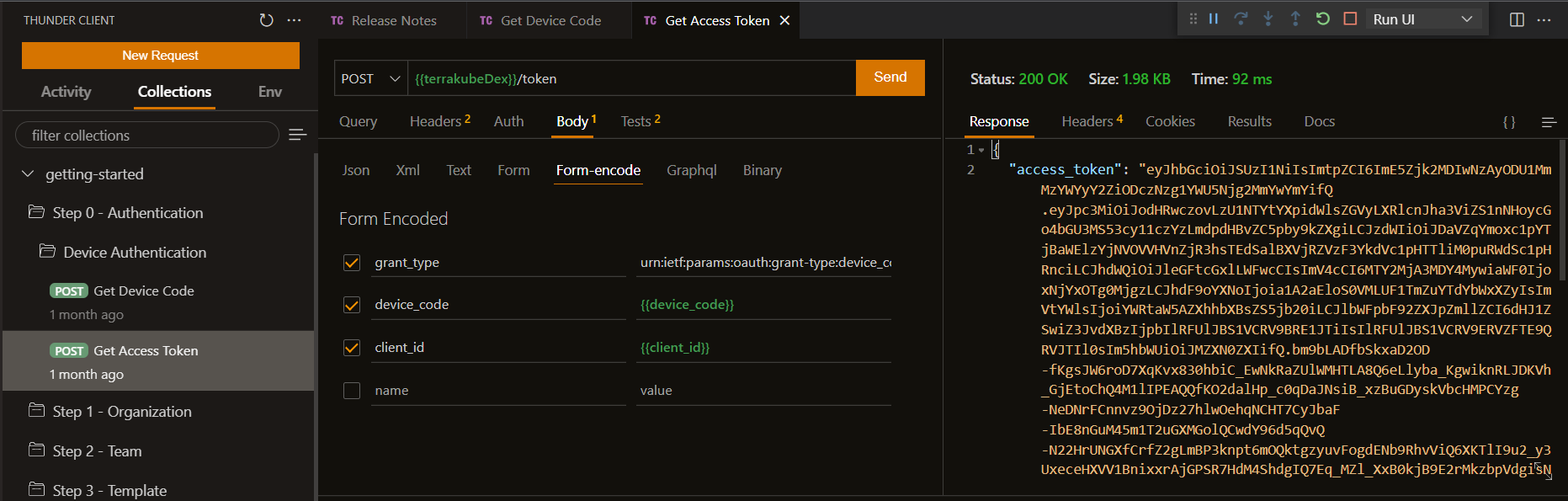

Finally get the access token for the API using the request "Get Access Token"
Now we can start using the API

Organizations

Terrakube is based on Organization, we can have one or multiple organizations inside Terrakube and we use an organization to save workspaces, jobs, templates, modules, providers and teams.
To create it we will use the request inside the collection "Step 1 - Organization"

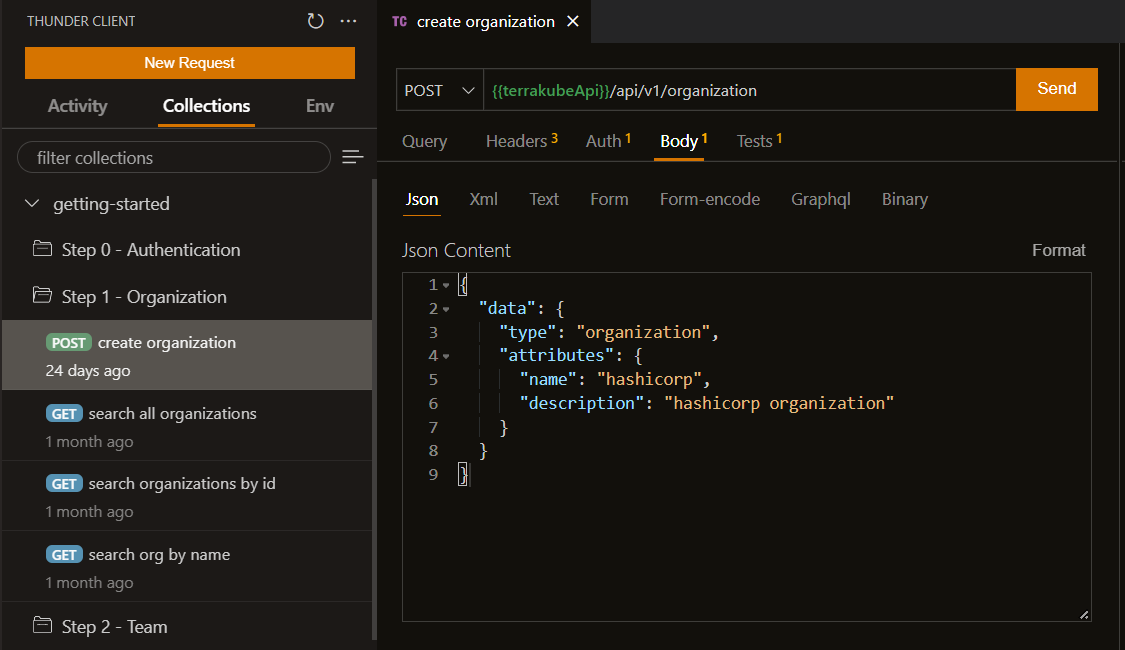

Request to create an Organization called "Hashicorp":

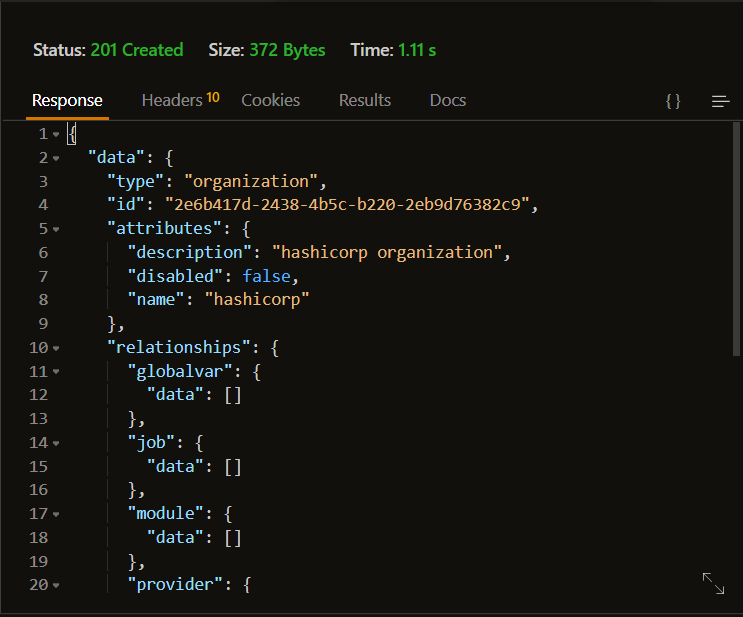

We should receive a response like the following:
Now we have the basic element in Terrakube to start testing all the endpoints.

Teams.

Inside an Organization we can have multiple teams working, each team can have access to different features inside an organization.
To create it we will use the request inside the collection "Step 2 - Teams"

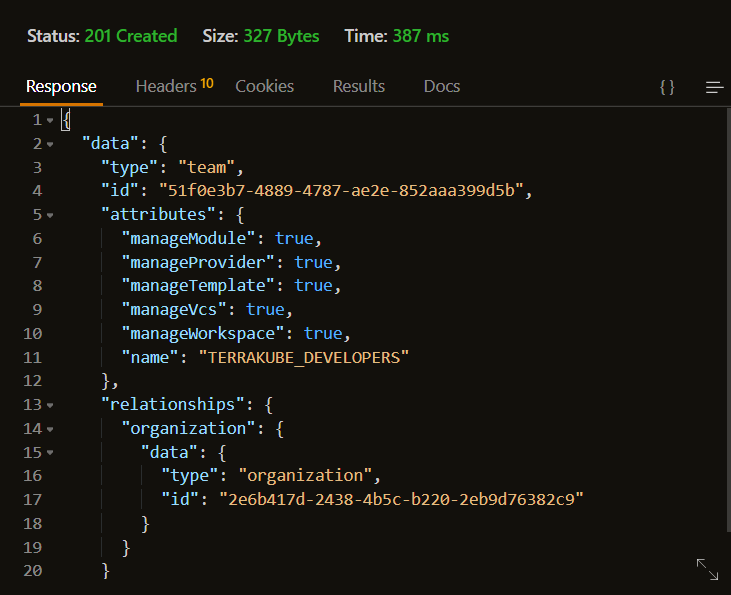

This will create a team called "TERRAKUBE_DEVELOPERS" with access to all the features and you should get a response like the following:
The team name should be a valid "group" name in Azure Active Directory, Google Cloud Identity, Github, Gitlab, OIDC, Amazon Cognito, etc. This will be based on Dex Configuration. For this example we are using Terrakube with a preconfigured LDAP.

Templates

This is the basic flow a job inside Terrakube will execute when running a workspace jobs. Templates allows you to define different logic using "Terrakube Configuration Language" using a yaml and small scripts written in Bash or Groovy that can be reused accross an organization. To understand better templates lets create some examples:
Templates are sent to the API in base64 encoding.

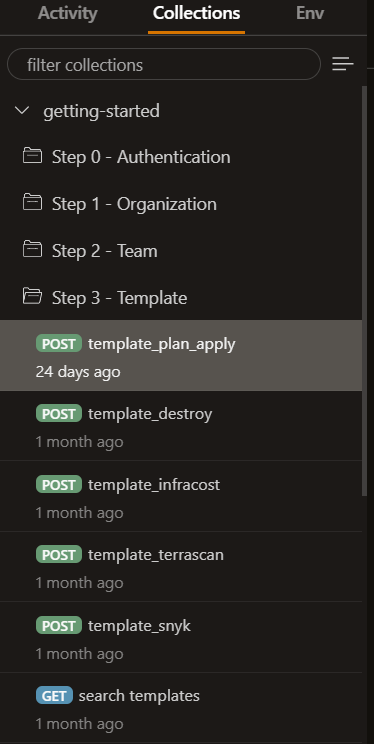

To create it we will use the request inside the postman collection "Step 3 - Templates"

Template 1 - Basic Terraform Plan-Apply

This is an small template that can be used to run a terraform plan and later run a terraform apply:
Teamplate body:
flow:
- type: "terraformPlan"
step: 100
- type: "terraformApply"
step: 200

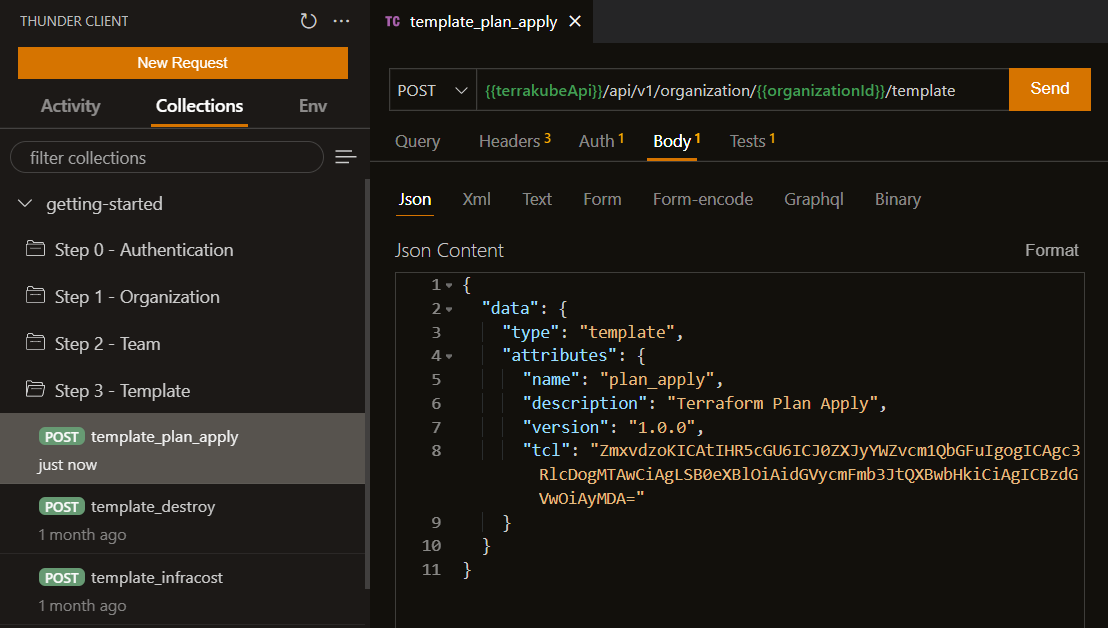

Request:

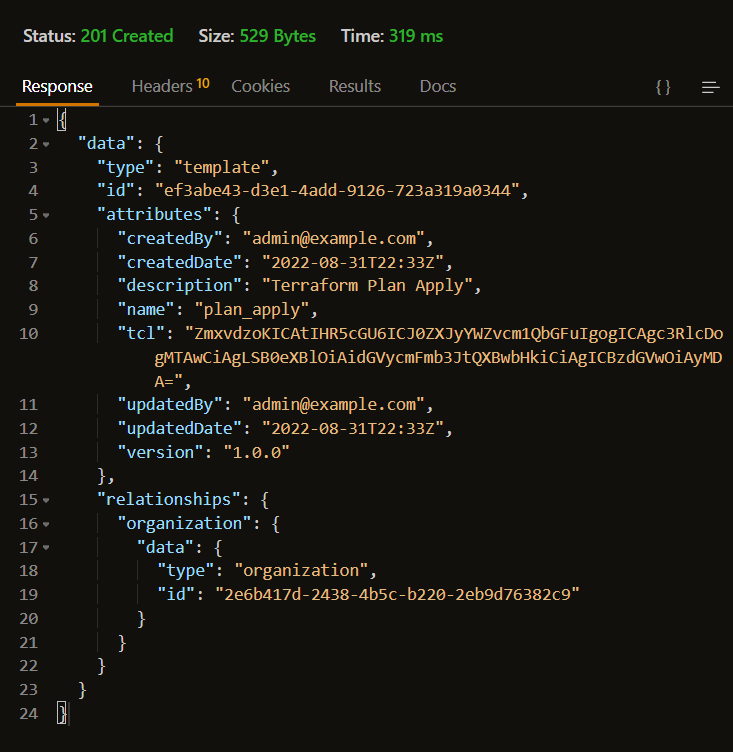

Response:
Now we have a template that we can reuse when running jobs accross an organization, lets define a couple of more templates.

Template 2 - Terraform Basic Destroy.

This is a small template that can be used to destoy the terraform infraestructure.
Template body:
flow:
- type: "terraformDestroy"
step: 100

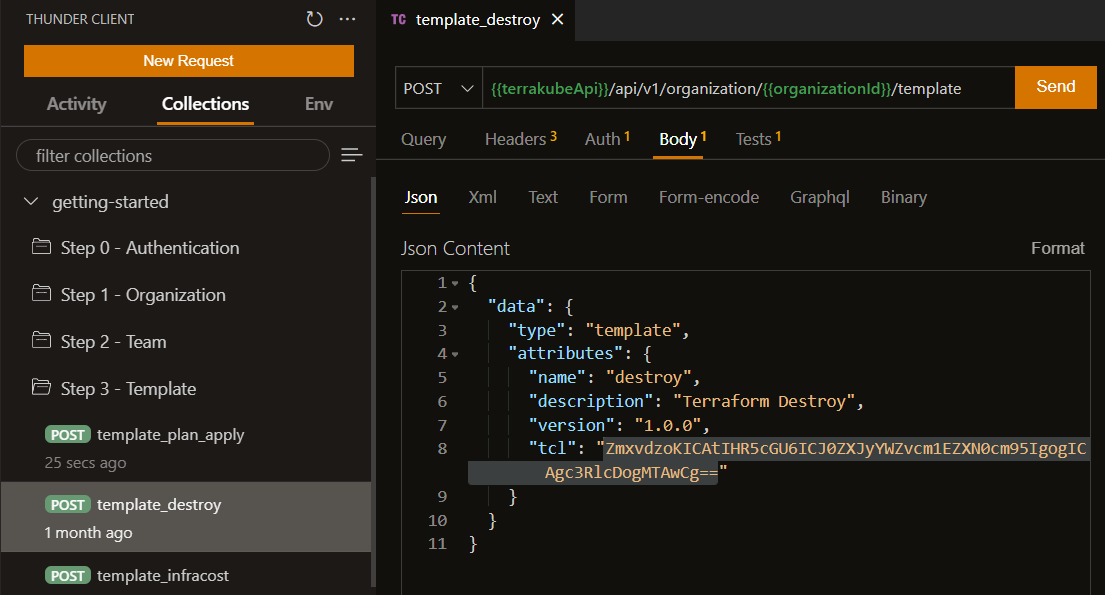

Request:

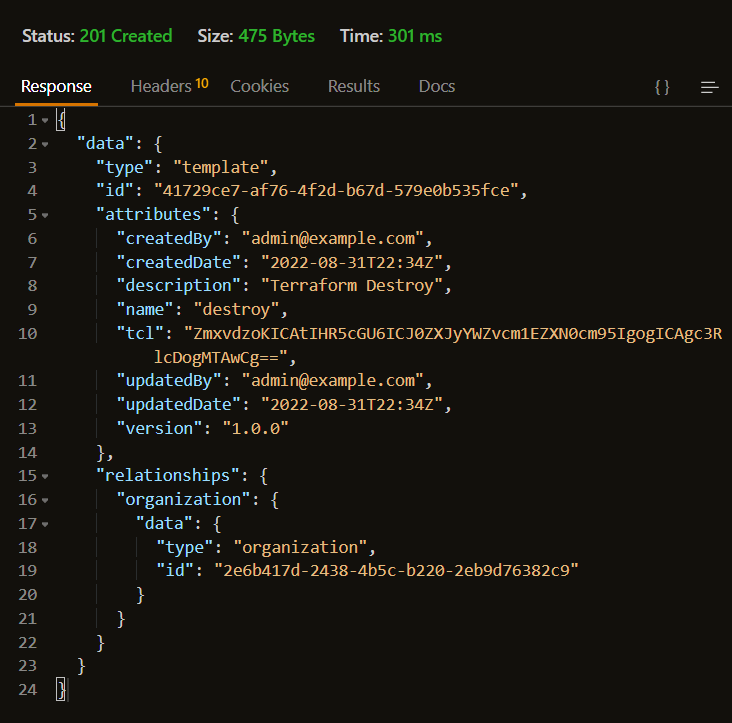

Response:
Now our firts organization have to templates, one to run a terraform plan/apply and one for a terraform destroy. Lets create a couple of more templates.

Template 3 - Calculate cost with Infracost Template

Terraform has a lot of open source tools that we can use inside Terrakube using template extensions, Terrakube has an open source repository where extension can be created and share between our community. Lets use some of the available extension to create a template that can calculate the cost of our infrastructure using "Infracost".
Template body:
flow:
- type: "terraformPlan"
step: 100
commands:
- runtime: "GROOVY"
priority: 100
after: true
script: |
import Infracost
String credentials = "version: \"0.1\"\n" +
"api_key: $INFRACOST_KEY \n" +
"pricing_api_endpoint: https://pricing.api.infracost.io"
new Infracost().loadTool(
"$workingDirectory",
"$bashToolsDirectory",
"0.9.11",
credentials)
"Infracost Download Completed..."
- runtime: "BASH"
priority: 200
after: true
script: |
terraform show -json terraformLibrary.tfPlan > plan.json
infracost breakdown --path plan.json
In this template we are defining a flow where a terraform plan will be executed for the workspace, once the terraform plan is finished Terrakube will import the Infracost extension from the open source repository and calculate the cost.

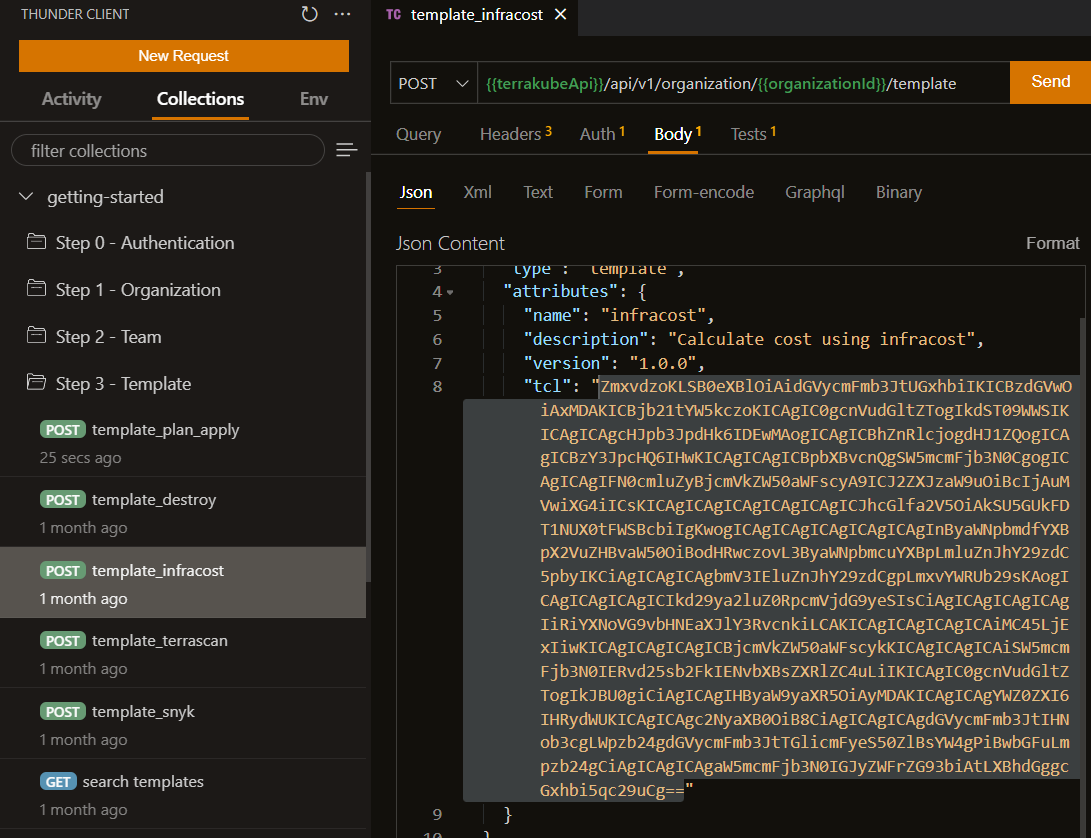

Request:

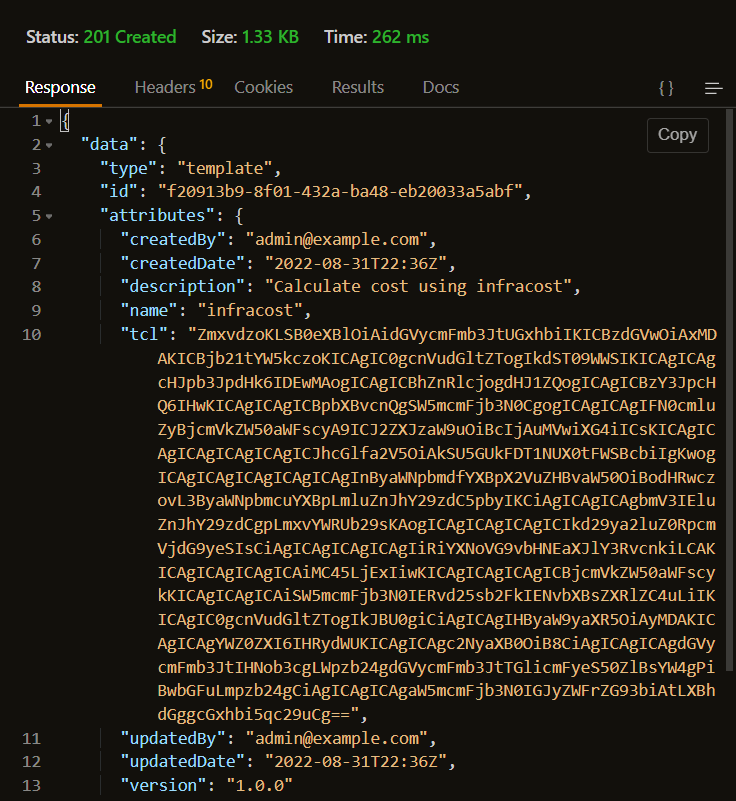

Response:

Template 4 - Static Code Analysis Terrascan

Lets define a new template that use Terrascan open source tool to run a static code analisys of our terraform code.
Template body:
flow:
- type: "customScripts"
step: 100
commands:
- runtime: "GROOVY"
priority: 100
after: true
script: |
import Terrascan
new Terrascan().loadTool(
"$workingDirectory",
"$bashToolsDirectory",
"1.12.0")
"Terrascan Download Completed..."
- runtime: "BASH"
priority: 200
after: true
script: |
cd $workingDirectory;
terrascan scan -i terraform -t azure;

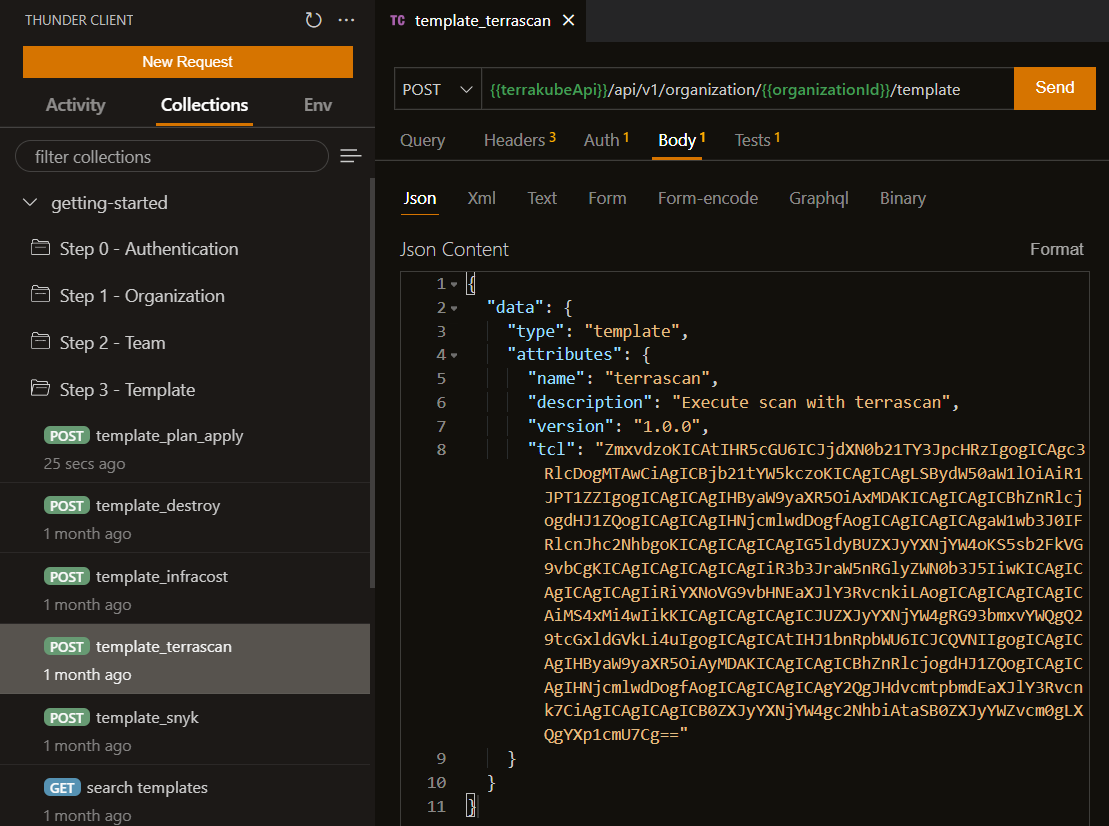

Request:

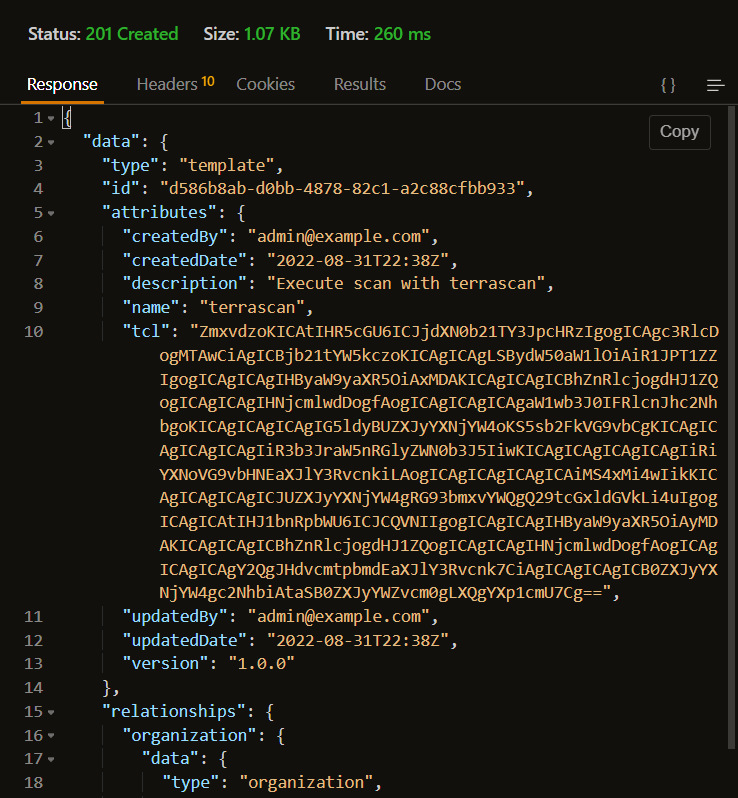

Response:
This template is importing the Terrascan extension and running a analisys for one particular workspace.
Template 5 - Static Code Analysis Snyk
Lets create a template that is using Snyk open source to run an analysis of our terraform code.
Template body:
flow:
- type: "customScripts"
step: 100
commands:
- runtime: "GROOVY"
priority: 100
after: true
script: |
import Snyk
new Snyk().loadTool(
"$workingDirectory",
"$bashToolsDirectory",
"1.831.0")
"Snyk Download Completed..."
- runtime: "BASH"
priority: 200
after: true
script: |
cd $workingDirectory;
snyk iac test .;

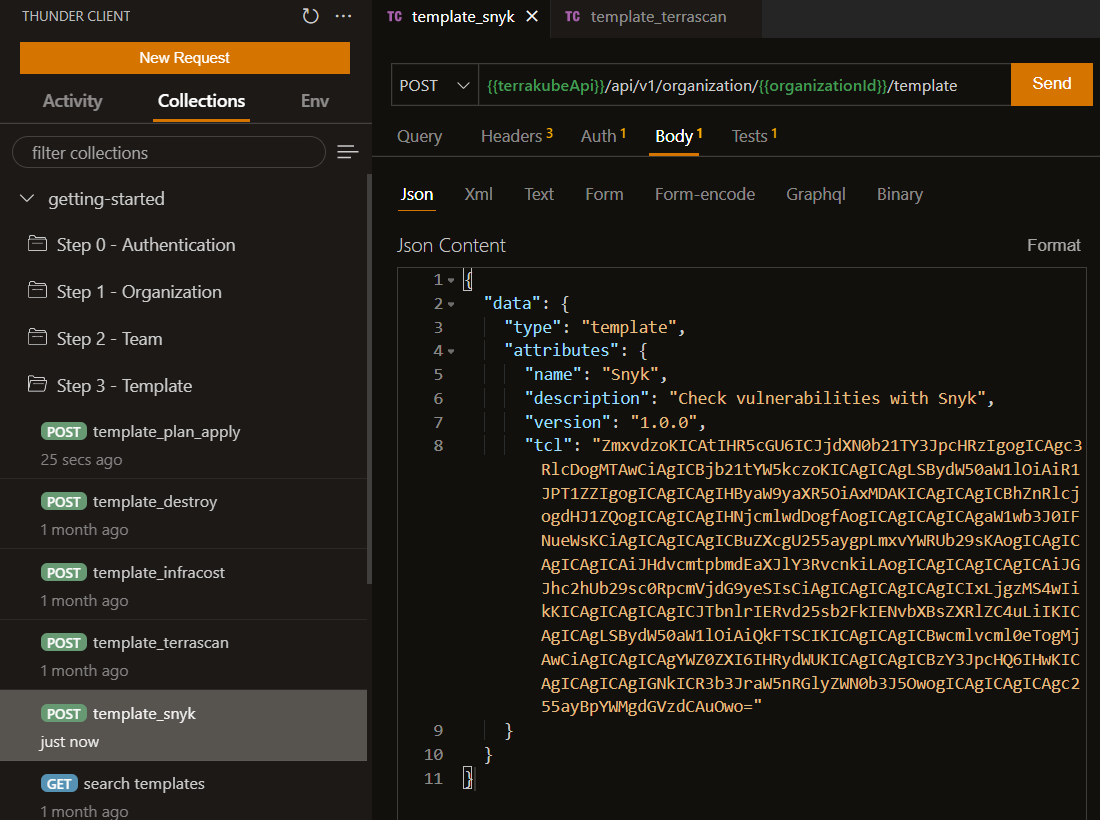

Request:
Response:
Now we have the following template available inside our organization:
  • Terraform Plan/Apply
  • Terraform Destroy
  • Terraform Cost with Infracost
  • Terraform Static Code Analysis with Terrascan
  • Terraform Static Code Analysis with Snyk
Lets create some workspace where we can use our templates.
For more information about Terrakube extension please refer to the followin Github repository. If you want to create a new extension feel free to create an issue and send a pull request. You can even for the repository and create some private extension.

Worspaces

A workspace is a folder inside a git repository where we store our terraform code, we can define all the terraform resources or we can just call a terraform module that is available inside Terrakube modules.
Workspace Git repository can be public or private using the following providers: Github, Gitlab, Azure DevOps, Bitbucket or SSH keys (rsa and ed25519). If you are using a private git respository please refer to the following document.

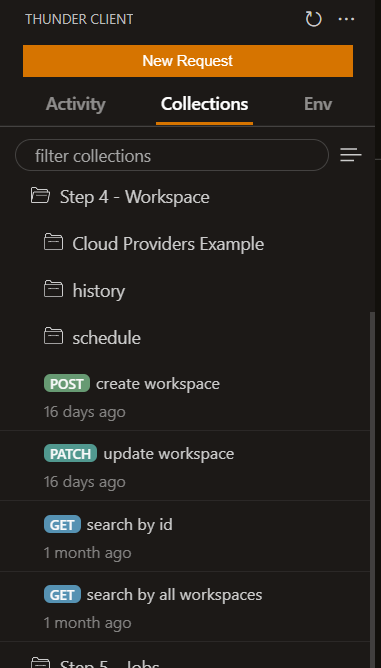

To create it we will use the request inside the postman collection "Step 4 - Worspace"
Lets create a very simple workspace using the following terraform code inside this public git repository "https://github.com/AzBuilder/terrakube-docker-compose.git" using the root folder "/"
# This resource will destroy (potentially immediately) after null_resource.next
resource "null_resource" "previous" {}
resource "time_sleep" "wait_30_seconds" {
depends_on = [null_resource.previous]
create_duration = "30s"
}
# This resource will create (at least) 30 seconds after null_resource.previous
resource "null_resource" "next" {
depends_on = [time_sleep.wait_30_seconds]
}
You can have multiple workspaces using a single git repository using folders and changing the field "folder" in the request.

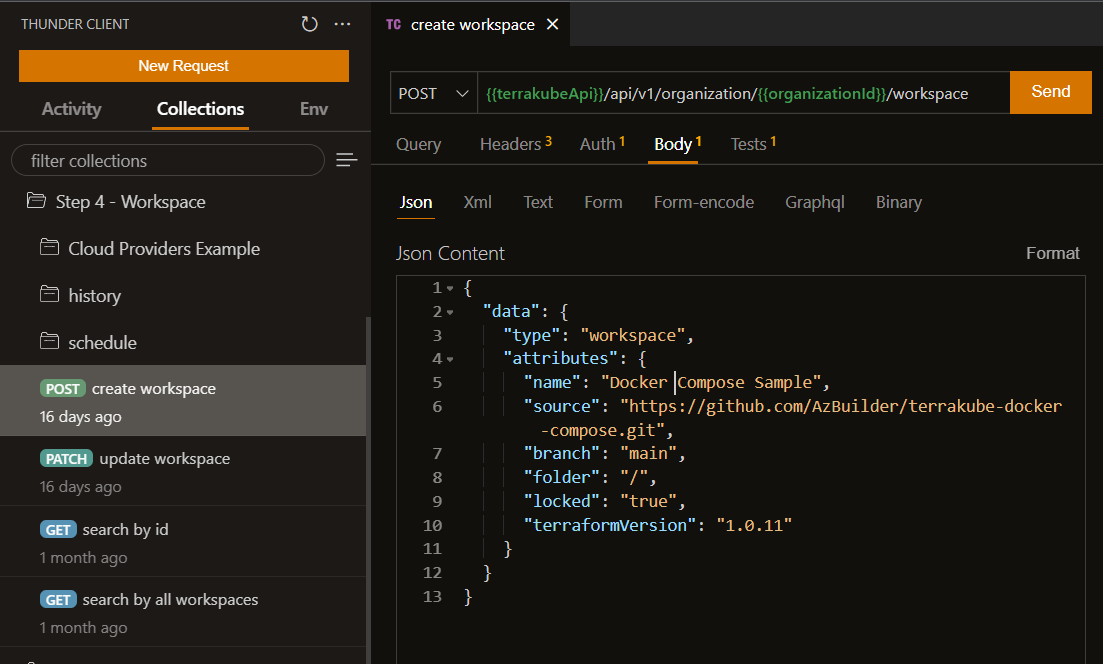

Request.

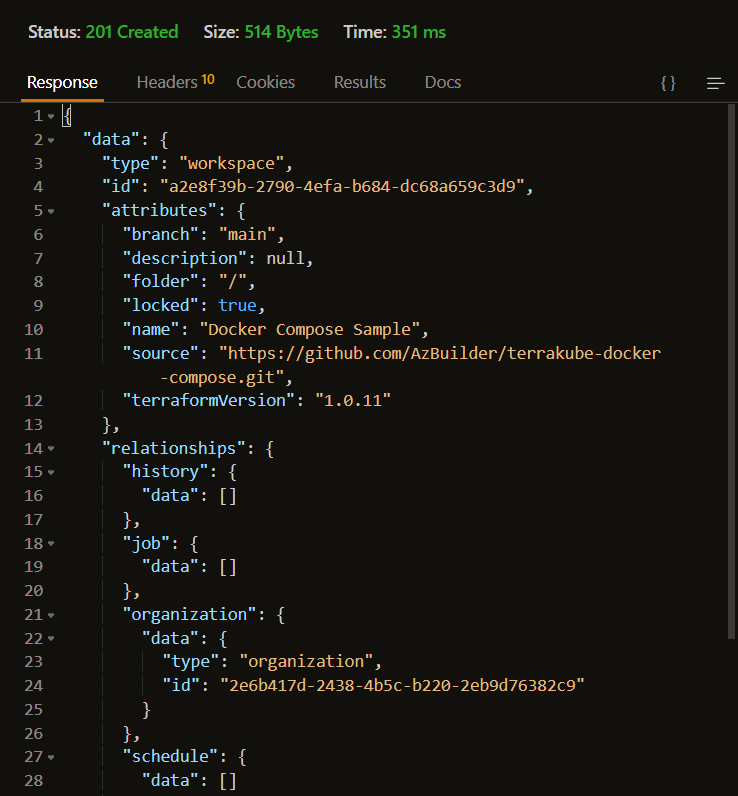

Response.

Worspaces Schedule

When a workspace is created inside Terrakube we can define some schedules, this can be usefull for example when running cloud infrastructure and we need to create some development environment every day at 8 AM and destroy the environment every day at 5 PM when our IT team stop working.

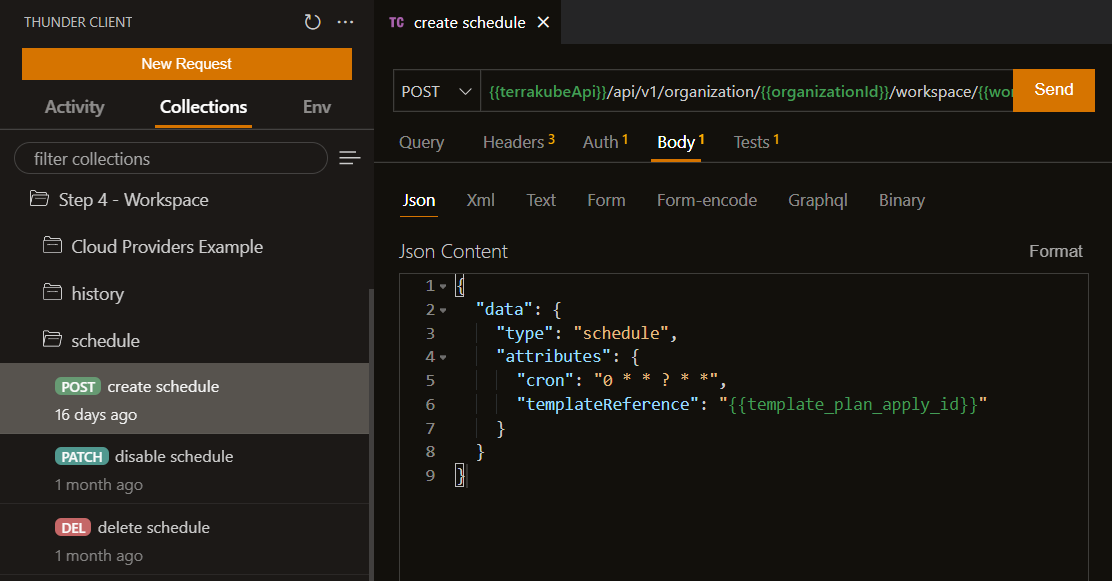

Request
This schedule will run the workspace using one template every minute
The Terrakube scheduler is based in "Quartz". You can create different schedules for your workspace. Please refer to the following information to define the "cron expression" or you can use the following link to build the expresion.

Worspace History

When Terrakube runs a job it will start saving all the states and changes inside the workspace history. To validate all the state changes we can use the workspace history endpoint.

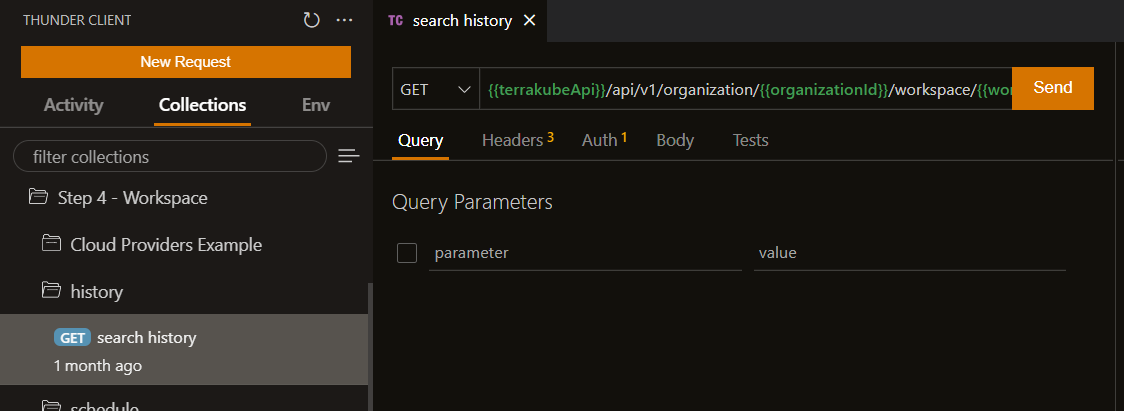

Request

Worspace (Azure/GCP/AWS)

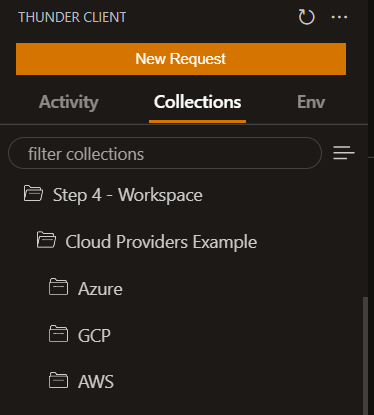

To understan how you can create workspace for any cloud provider please refer to the following examples inside the collection:
Basically to use any terraform provider we just need to define the worspace environment variables.

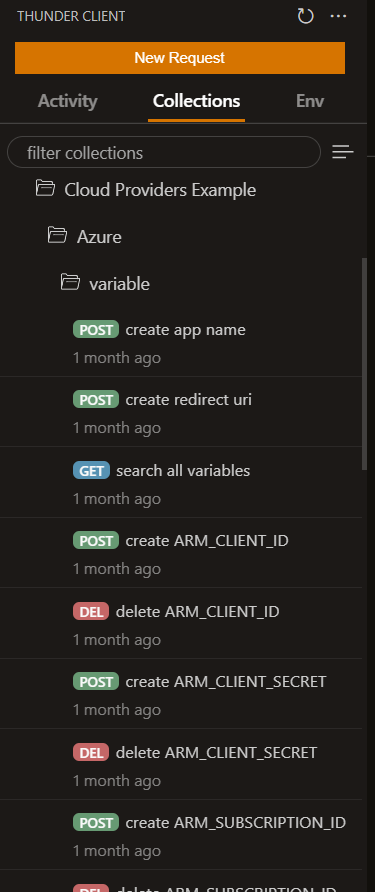

This is an example of an Azure workspace.
For more information about the workspace please check the api methods for:

Jobs

After we have a workspace we can star creating jobs for our workspaces using the templates the we have define earlier.

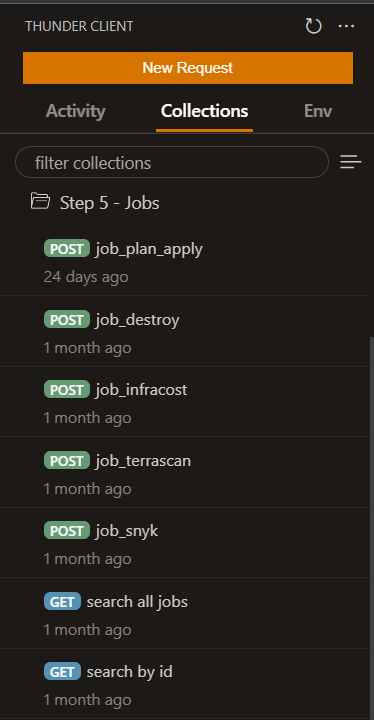

To create it we will use the request inside the postman collection "Step 5 - Jobs"

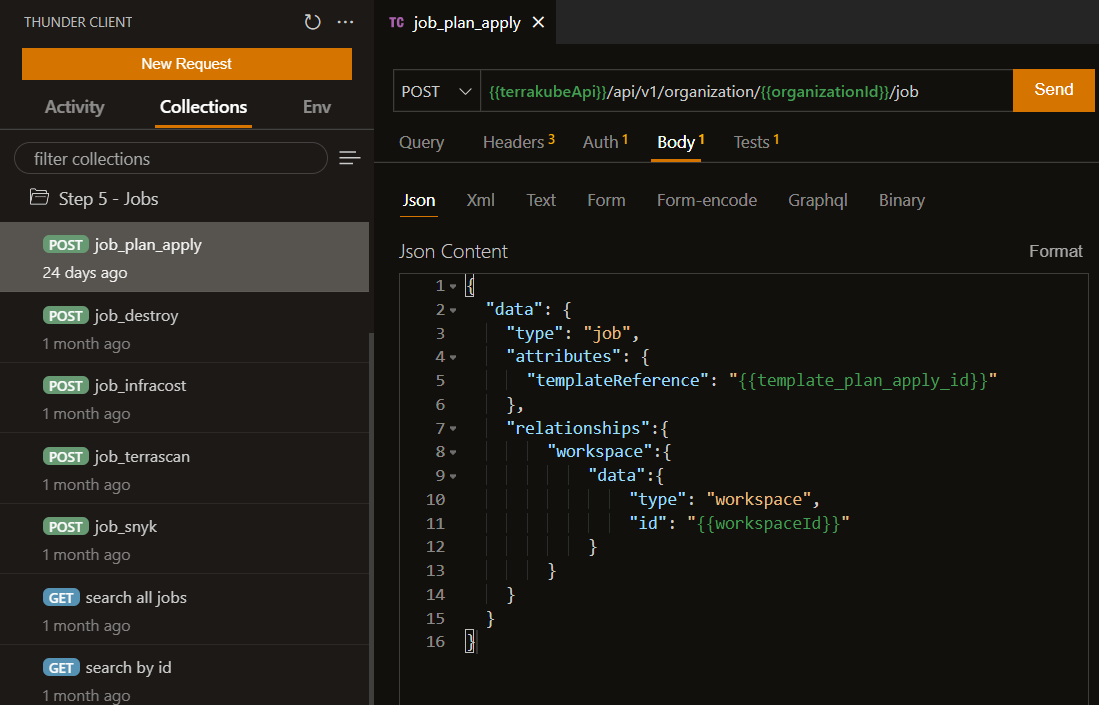

Request:
After a couple of minutes Terrakube should have completed the job execution
The job output should be similar to the following:
{
"data": {
"type": "job",
"id": "1",
"attributes": {
"approvalTeam": null,
"createdBy": "[email protected]",
"createdDate": "2022-04-16T16:21Z",
"output": " Step 15cc4aaf-98cc-48f3-a7eb-eaf7eabb53a1 completed\n",
"status": "completed",
"tcl": "ZmxvdzoKICAtIHR5cGU6ICJ0ZXJyYWZvcm1QbGFuIgogICAgc3RlcDogMTAwCiAgLSB0eXBlOiAidGVycmFmb3JtQXBwbHkiCiAgICBzdGVwOiAyMDA=",
"templateReference": "f8347f0e-145e-4bc4-800a-de1fe134fb74",
"terraformPlan": "http://localhost:8090/state/de64af52-f676-4e62-bfa3-775d5a8b8dc0/464105d6-d6b9-47b5-9abb-fc541cba3233/1/c7f1dbfd-19ff-4a75-bb77-3b0fb82b4db8/terraformLibrary.tfPlan",
"updatedBy": "[email protected]",
"updatedDate": "2022-04-16T16:24Z"
},
"relationships": {
"organization": {
"data": {
"type": "organization",
"id": "de64af52-f676-4e62-bfa3-775d5a8b8dc0"
}
},
"step": {
"data": [
{
"type": "step",
"id": "15cc4aaf-98cc-48f3-a7eb-eaf7eabb53a1"
},
{
"type": "step",
"id": "c7f1dbfd-19ff-4a75-bb77-3b0fb82b4db8"
}
]
},
"workspace": {
"data": {
"type": "workspace",
"id": "464105d6-d6b9-47b5-9abb-fc541cba3233"
}
}
}
},
"included": [
{
"type": "step",
"id": "c7f1dbfd-19ff-4a75-bb77-3b0fb82b4db8",
"attributes": {
"name": "Running Step100",
"output": "http://localhost:8090/output/de64af52-f676-4e62-bfa3-775d5a8b8dc0/1/c7f1dbfd-19ff-4a75-bb77-3b0fb82b4db8.tfoutput",
"status": "completed",
"stepNumber": 100
},
"relationships": {
"job": {
"data": {
"type": "job",
"id": "1"
}
}
}
},
{
"type": "step",
"id": "15cc4aaf-98cc-48f3-a7eb-eaf7eabb53a1",
"attributes": {
"name": "Running Step200",
"output": "http://localhost:8090/output/de64af52-f676-4e62-bfa3-775d5a8b8dc0/1/15cc4aaf-98cc-48f3-a7eb-eaf7eabb53a1.tfoutput",
"status": "completed",
"stepNumber": 200
},
"relationships": {
"job": {
"data": {
"type": "job",
"id": "1"
}
}
}
}
]
}

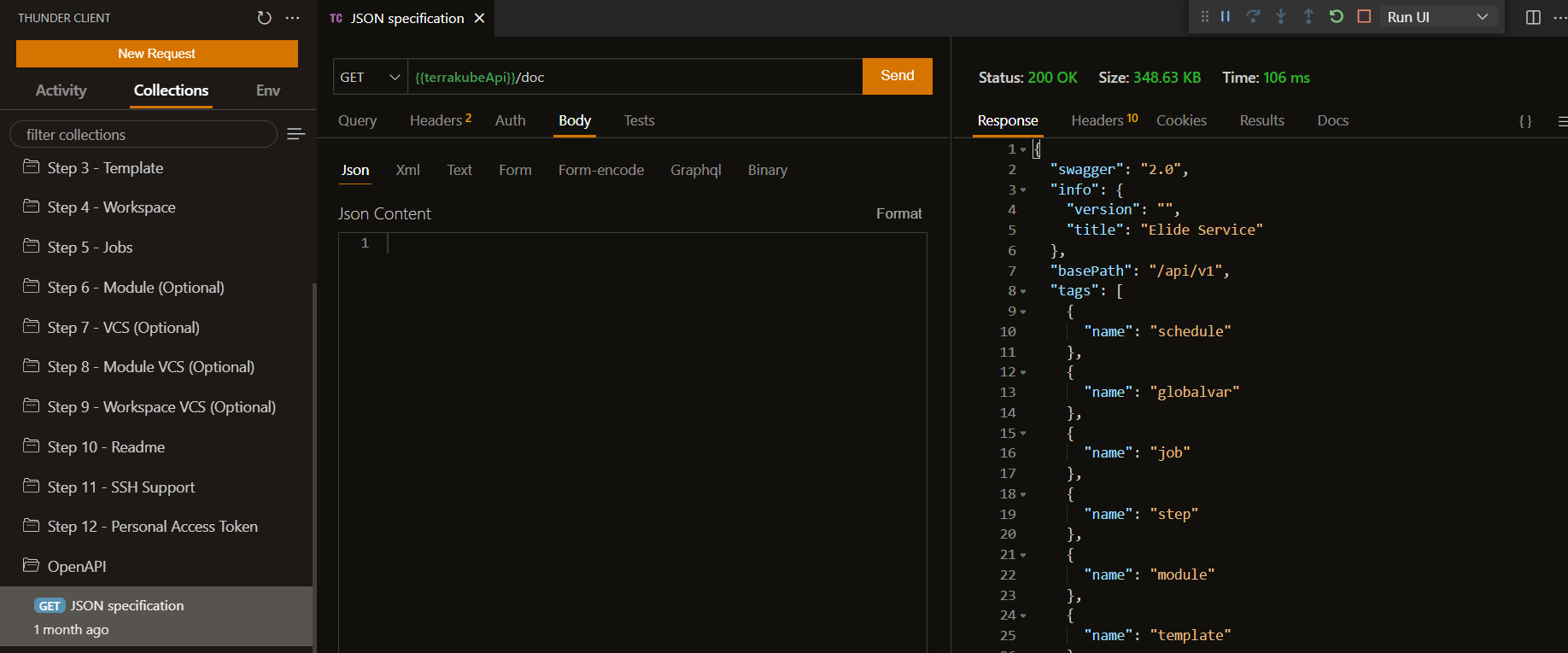

Terrakube Open API Specification.

If you wan to check all the available methods you can use the following enpoint.
