🔑Minikube + HTTPS

Terrakube can be installed in minikube as a sandbox environment with HTTPS, using terrakube with HTTPS will allow to use the Terraform registry and the Terraform remote state backend to be used locally without any issue.

Please follow these instructions:

Requirements:

Install mkcert to generate the local certificates.

We will be using following domains in our test installation:

terrakube-api.minikube.net
terrakube-ui.minikube.net
terrakube-reg.minikube.net

Generate local CA certificate

mkcert -install
Created a new local CA 💥
The local CA is now installed in the system trust store! ⚡️
The local CA is now installed in the Firefox trust store (requires browser restart)! 🦊

Local CA certificate path

mkcert -CAROOT
/home/myuser/.local/share/mkcert

Local CA certificate content

cat /home/myuser/.local/share/mkcert/rootCA.pem

Generate certificate for *.minikube.net

These command will generate two files key.pem and cert.pem that we will be using later.

mkcert -key-file key.pem -cert-file cert.pem minikube.net *.minikube.net

Created a new certificate valid for the following names 📜
 - "minikube.net"
 - "*.minikube.net"

Reminder: X.509 wildcards only go one level deep, so this won't match a.b.minikube.net ℹ️

The certificate is at "cert.pem" and the key at "key.pem" ✅

It will expire on 19 January 2026 🗓

Now we have all the necessary to install Terrakube with HTTPS

Setup Helm Repository

helm repo add terrakube-repo https://AzBuilder.github.io/terrakube-helm-chart
helm repo update

Setup Minikube

minikube start
minikube addons enable ingress
minikube addons enable storage-provisioner
minikube ip

Copy the minikube ip address ( Example: 192.168.59.100)

Create Kubernetes secret with local certificate

kubectl -n kube-system create secret tls mkcert --key key.pem --cert cert.pem

Setup Terrakube namespace

kubectl create namespace terrakube

Setup DNS records

sudo nano /etc/hosts

192.168.59.100 terrakube-ui.minikube.net
192.168.59.100 terrakube-api.minikube.net
192.168.59.100 terrakube-reg.minikube.net

Setup Ingress Certificates

minikube addons configure ingress

-- Enter custom cert(format is "namespace/secret"): kube-system/mkcert
✅  ingress was successfully configured

minikube addons disable ingress

🌑  "The 'ingress' addon is disabled

minikube addons enable ingress

🔎  Verifying ingress addon...
🌟  The 'ingress' addon is enabled

Helm Values.

We need to generate a file called value.yaml with the following using the content of our rootCa.pem from the previous step:

security:
  caCerts:
    rootCA.pem: |
      -----BEGIN CERTIFICATE-----
      XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
      XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
      XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
      XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
      XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
      XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
      XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
      XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
      XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
      XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
      XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
      -----END CERTIFICATE-----

## API properties
api:
  env:
  - name: SERVICE_BINDING_ROOT
    value: /mnt/platform/bindings
  volumes:
    - name: ca-certs
      secret:
        secretName: terrakube-ca-secrets
        items:
        - key: "rootCA.pem"
          path: "rootCA.pem"
        - key: "type"
          path: "type"
  volumeMounts:
  - name: ca-certs
    mountPath: /mnt/platform/bindings/ca-certificates
    readOnly: true
  properties:
    databaseType: "H2"

executor:
  env:
  - name: SERVICE_BINDING_ROOT
    value: /mnt/platform/bindings
  volumes:
    - name: ca-certs
      secret:
        secretName: terrakube-ca-secrets
        items:
        - key: "rootCA.pem"
          path: "rootCA.pem"
        - key: "type"
          path: "type"
  volumeMounts:
  - name: ca-certs
    mountPath: /mnt/platform/bindings/ca-certificates
    readOnly: true

## Registry properties
registry:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"
  env:
  - name: SERVICE_BINDING_ROOT
    value: /mnt/platform/bindings
  volumes:
    - name: ca-certs
      secret:
        secretName: terrakube-ca-secrets
        items:
        - key: "rootCA.pem"
          path: "rootCA.pem"
        - key: "type"
          path: "type"
  volumeMounts:
  - name: ca-certs
    mountPath: /mnt/platform/bindings/ca-certificates
    readOnly: true

dex:
  config:
    issuer: https://terrakube-api.minikube.net/dex

    storage:
      type: memory
    web:
      http: 0.0.0.0:5556
      allowedOrigins: ['*']
      skipApprovalScreen: true
    oauth2:
      responseTypes: ["code", "token", "id_token"]

    connectors:
    - type: ldap
      name: OpenLDAP
      id: ldap
      config:
        # The following configurations seem to work with OpenLDAP:
        #
        # 1) Plain LDAP, without TLS:
        host: terrakube-openldap-service:1389
        insecureNoSSL: true
        #
        # 2) LDAPS without certificate validation:
        #host: localhost:636
        #insecureNoSSL: false
        #insecureSkipVerify: true
        #
        # 3) LDAPS with certificate validation:
        #host: YOUR-HOSTNAME:636
        #insecureNoSSL: false
        #insecureSkipVerify: false
        #rootCAData: 'CERT'
        # ...where CERT="$( base64 -w 0 your-cert.crt )"

        # This would normally be a read-only user.
        bindDN: cn=admin,dc=example,dc=org
        bindPW: admin

        usernamePrompt: Email Address

        userSearch:
          baseDN: ou=users,dc=example,dc=org
          filter: "(objectClass=person)"
          username: mail
          # "DN" (case sensitive) is a special attribute name. It indicates that
          # this value should be taken from the entity's DN not an attribute on
          # the entity.
          idAttr: DN
          emailAttr: mail
          nameAttr: cn

        groupSearch:
          baseDN: ou=Groups,dc=example,dc=org
          filter: "(objectClass=groupOfNames)"

          userMatchers:
            # A user is a member of a group when their DN matches
            # the value of a "member" attribute on the group entity.
          - userAttr: DN
            groupAttr: member

          # The group name should be the "cn" value.
          nameAttr: cn

    staticClients:
    - id: example-app
      redirectURIs:
      - 'https://terrakube-ui.minikube.net'
      - '/device/callback'
      - 'http://localhost:10000/login'
      - 'http://localhost:10001/login'
      name: 'example-app'
      public: true

## Ingress properties
ingress:
  useTls: true
  includeTlsHosts: true
  ui:
    enabled: true
    domain: "terrakube-ui.minikube.net"
    path: "/"
    pathType: "Prefix"
    tlsSecretName: tls-secret-ui-terrakube
    annotations:
      nginx.ingress.kubernetes.io/use-regex: "true"
  api:
    enabled: true
    domain: "terrakube-api.minikube.net"
    path: "/"
    pathType: "Prefix"
    tlsSecretName: tls-secret-api-terrakube
    annotations:
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/configuration-snippet: "proxy_set_header Authorization $http_authorization;"
  registry:
    enabled: true
    domain: "terrakube-reg.minikube.net"
    path: "/"
    pathType: "Prefix"
    tlsSecretName: tls-secret-reg-terrakube
    annotations:
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/configuration-snippet: "proxy_set_header Authorization $http_authorization;"
  dex:
    enabled: true
    path: "/dex/"
    pathType: "Prefix"
    annotations:
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/configuration-snippet: "proxy_set_header Authorization $http_authorization;"

Install Terrakube with local HTTPS support

helm install terrakube terrakube-repo/terrakube -n terrakube --values values.yaml

If you found the following message "Snippet directives are disabled by the Ingress administrator", please update the ingres-nginx-controller configMap in namespace ingress-nginx adding the following:

allow-snippet-annotations: "true"

Reference: https://github.com/AzBuilder/terrakube/issues/618#issuecomment-1838980

Using Terrakube

The environment has some users, groups and sample data so you can test it quickly.

Visit https://terrakube-ui.minikube.net and login using admin@example.com with password admin

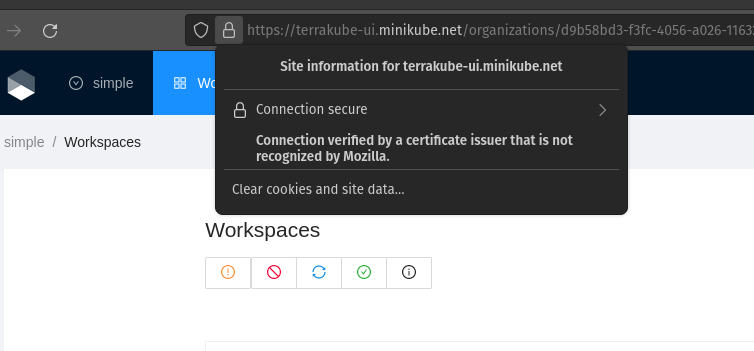

We should be able to use the UI using a valid certificate.

Connect to Terrakube

Using terraform we can connect to the terrakube api and the private registry using the following command with the same credentials that we used to login to the UI.

terraform login terrakube-api.minikube.net
terraform login terrakube-reg.minikube.net

Terraform Remote State.

Lets create a simple Terraform file.

terraform {
  cloud {
    organization = "simple"
    hostname = "terrakube-api.minikube.net"

    workspaces {
      tags = ["myplayground", "example"]
    }
  }
}

# This resource will destroy (potentially immediately) after null_resource.next
resource "null_resource" "previous" {}

resource "time_sleep" "wait_5_seconds" {
  depends_on = [null_resource.previous]

  create_duration = "5s"
}

# This resource will create (at least) 30 seconds after null_resource.previous
resource "null_resource" "next" {
  depends_on = [time_sleep.wait_5_seconds]
}

Execute Terraform Remotely

Terraform Init:

$ terraform init

Initializing Terraform Cloud...

No workspaces found.

  There are no workspaces with the configured tags (example, myplayground)
  in your Terraform Cloud organization. To finish initializing, Terraform needs at
  least one workspace available.

  Terraform can create a properly tagged workspace for you now. Please enter a
  name to create a new Terraform Cloud workspace.

  Enter a value: simple


Initializing provider plugins...
- Finding latest version of hashicorp/null...
- Finding latest version of hashicorp/time...
- Installing hashicorp/null v3.2.1...
- Installed hashicorp/null v3.2.1 (signed by HashiCorp)
- Installing hashicorp/time v0.9.1...
- Installed hashicorp/time v0.9.1 (signed by HashiCorp)

Terraform has created a lock file .terraform.lock.hcl to record the provider
selections it made above. Include this file in your version control repository
so that Terraform can guarantee to make the same selections by default when
you run "terraform init" in the future.

Terraform apply:

$ terraform apply

Running apply in Terraform Cloud. Output will stream here. Pressing Ctrl-C
will cancel the remote apply if it's still pending. If the apply started it
will stop streaming the logs, but will not stop the apply running remotely.

Preparing the remote apply...

To view this run in a browser, visit:
https://terrakube-api.minikube.net/app/simple/simple/runs/40

Waiting for the plan to start...

***************************************
Running Terraform PLAN
***************************************

Terraform used the selected providers to generate the following execution
plan. Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  # null_resource.next will be created
  + resource "null_resource" "next" {
      + id = (known after apply)
    }

  # null_resource.previous will be created
  + resource "null_resource" "previous" {
      + id = (known after apply)
    }

  # time_sleep.wait_5_seconds will be created
  + resource "time_sleep" "wait_5_seconds" {
      + create_duration = "5s"
      + id              = (known after apply)
    }

Plan: 3 to add, 0 to change, 0 to destroy.

Changes to Outputs:
  + creation_time = "5s"

Do you want to perform these actions in workspace "simple"?
  Terraform will perform the actions described above.
  Only 'yes' will be accepted to approve.

  Enter a value: yes

null_resource.previous: Creating...
null_resource.previous: Creation complete after 0s [id=6182221597368620892]
time_sleep.wait_5_seconds: Creating...
time_sleep.wait_5_seconds: Creation complete after 5s [id=2023-10-19T20:25:22Z]
null_resource.next: Creating...
null_resource.next: Creation complete after 0s [id=9093191930998774410]

Apply complete! Resources: 3 added, 0 changed, 0 destroyed.

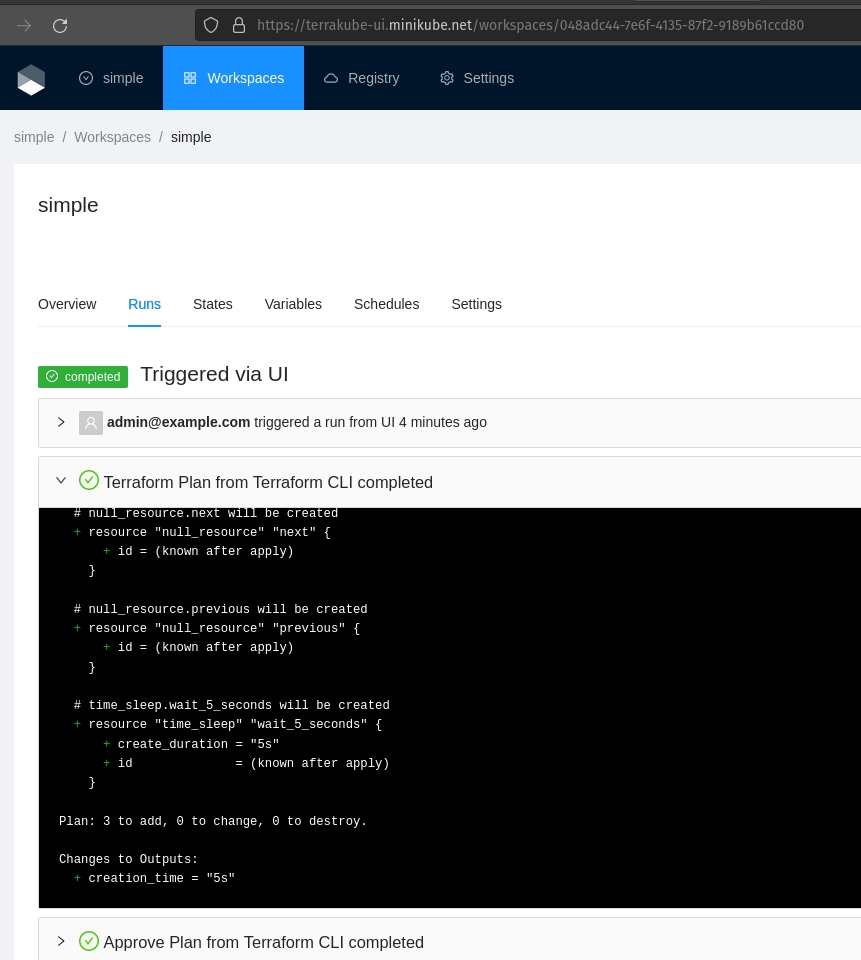

Checking the UI will show:
