🔐Custom CA Certs

Adding certificates at runtime

Terrakube componentes (api, registry and executor) are using buildpacks to create the docker images

When using buildpack to add a custom CA certificate at runtime you need to do the following:

Provide the following environment variable to the container:

SERVICE_BINDING_ROOT: /mnt/platform/bindings

Inside the path there is a folder call "ca-certificates"

cnb@terrakube-api-678cb68d5b-ns5gt:/mnt/platform/bindings$ ls
ca-certificates

We need to mount some information to that path

/mnt/platform/bindings/ca-certificates

Inside this folder we should put out custom PEM CA certs and one additional file call type

cnb@terrakube-api-678cb68d5b-ns5gt:/mnt/platform/bindings/ca-certificates$ ls
terrakubeDemo1.pem  terrakubeDemo2.pem  type

The content of the file type is just the text "ca-certificates"

cnb@terrakube-api-678cb68d5b-ns5gt:/mnt/platform/bindings/ca-certificates$ cat type
ca-certificates

Finally your helm terrakube.yaml should look something like this because we are mounting out CA certs and the file called type in the following path " /mnt/platform/bindings/ca-certificates"

## Terrakube Security
security:
  caCerts:
    terrakubeDemo1.pem: |
      -----BEGIN CERTIFICATE-----
      MIIDZTCCA.........

      -----END CERTIFICATE-----
    terrakubeDemo2.pem: |
      -----BEGIN CERTIFICATE-----
      MIIDZTCCA.....


      -----END CERTIFICATE-----

## API properties
api:
  version: "2.11.2"
  env:
  - name: SERVICE_BINDING_ROOT
    value: /mnt/platform/bindings
  volumes:
    - name: ca-certs
      secret:
        secretName: terrakube-ca-secrets
        items:
        - key: "terrakubeDemo1.pem"
          path: "terrakubeDemo1.pem"
        - key: "terrakubeDemo2.pem"
          path: "terrakubeDemo2.pem"
        - key: "type'
          path: "type"
  volumeMounts:
  - name: ca-certs
    mountPath: /mnt/platform/bindings/ca-certificates
    readOnly: true

Checking the terrakube component two additional ca certs are added inside the sytem truststore

Added 2 additional CA certificate(s) to system truststore
Setting Active Processor Count to 2
Calculating JVM memory based on 5791152K available memory
For more information on this calculation, see https://paketo.io/docs/reference/java-reference/#memory-calculator
Calculated JVM Memory Configuration: -XX:MaxDirectMemorySize=10M -Xmx5033128K -XX:MaxMetaspaceSize=246023K -XX:ReservedCodeCacheSize=240M -Xss1M (Total Memory: 5791152K, Thread Count: 250, Loaded Class Count: 41022, Headroom: 0%)
Enabling Java Native Memory Tracking
Adding 126 container CA certificates to JVM truststore
Spring Cloud Bindings Enabled
Picked up JAVA_TOOL_OPTIONS: -Djava.security.properties=/layers/paketo-buildpacks_bellsoft-liberica/java-security-properties/java-security.properties -XX:+ExitOnOutOfMemoryError -XX:ActiveProcessorCount=2 -XX:MaxDirectMemorySize=10M -Xmx5033128K -XX:MaxMetaspaceSize=246023K -XX:ReservedCodeCacheSize=240M -Xss1M -XX:+UnlockDiagnosticVMOptions -XX:NativeMemoryTracking=summary -XX:+PrintNMTStatistics -Dorg.springframework.cloud.bindings.boot.enable=true

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::                (v2.7.8)

Additinal information about buildpacks can be found in this link:

Adding certificate at build time

Terrakube allow to add the certs when building the application, to use this option use the following:

git clone https://github.com/AzBuilder/terrakube
cd terrakube
git checkout <<TERRAKUBE-VERSION>>
mv EXAMPLE.pem bindings/ca-certificates

# This script should be run from the root folder
./scripts/build/terrakubeBuild.sh

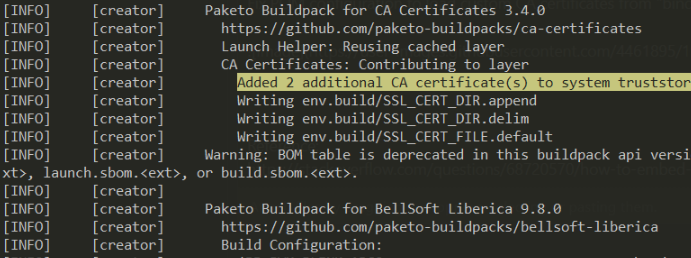

The certs will be added at runtime as the following image.
