Template Scheduling in Jobs

When we deploy some infrastructure we can set some other template to execute in some specific time for example to destroy the infrascturture or resize it.

This example will show the basic logic to accomplish but it is not creaing a real VM it just running some scripts that are showing the injected terraform variables when running the job.

Example

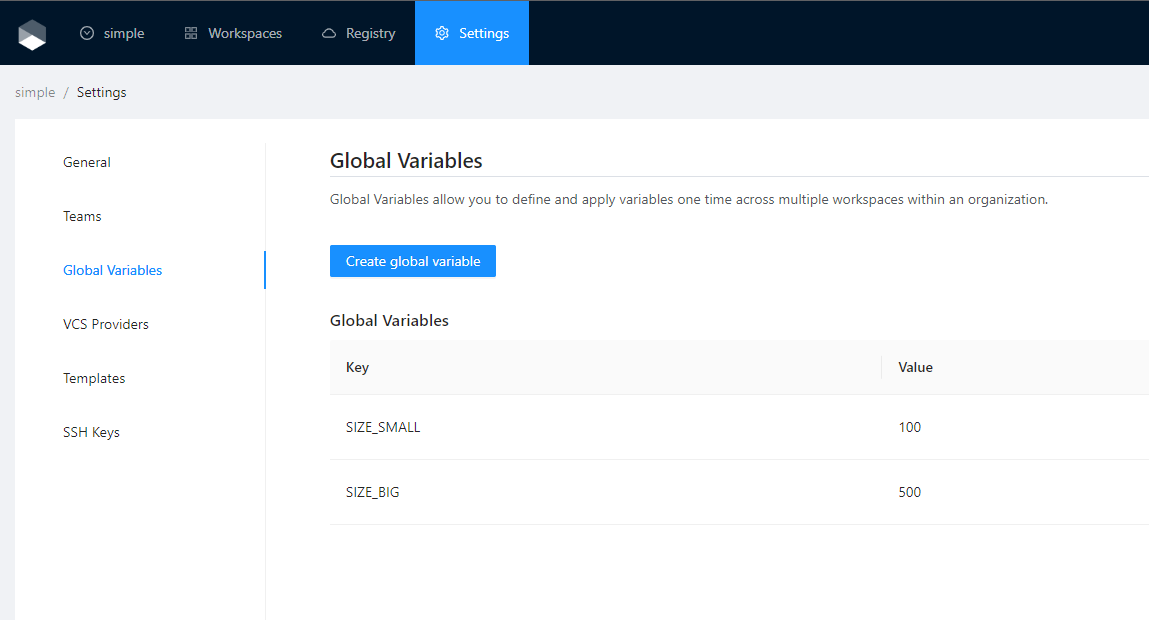

Define the size as global terraform variables for example SIZE_SMALL and SIZE_BIG, this terraform variables will be injected in our future templates "schedule1" and "schedule2" as terraform variables dynamically.

We define a job template that creates the infrasctucture using some small size and create two schedule at the end of the template.

Create Virtual Machine (Example)

flow:
  - type: "customScripts"
    step: 100
    inputsTerraform:
      SIZE: $SIZE_SMALL
    commands:
      - runtime: "BASH"
        priority: 100
        before: true
        script: |
          echo "SIZE : $SIZE"
  - type: "scheduleTemplates"
    step: 200
    templates:
      - name: "schedule1"
        schedule: "0 0/5 * ? * * *"
      - name: "schedule2"
        schedule: "0 0/10 * ? * * *"

This will create our "virtual machine" using size small, after it will set two addtional schedules to run every 5 and 10 minutes to resize it.

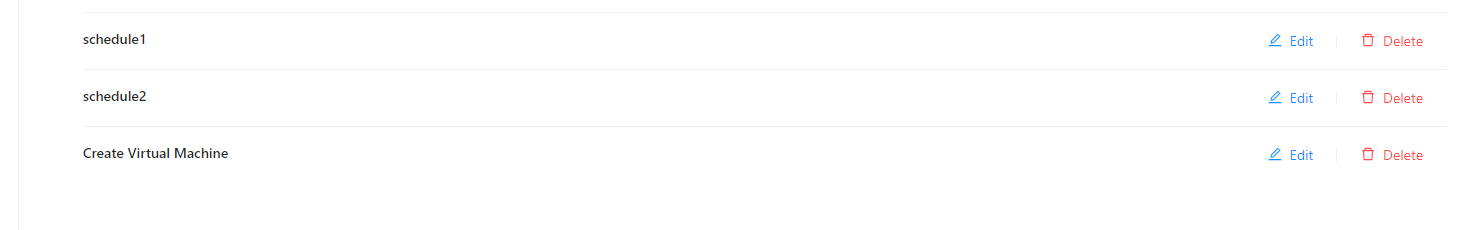

We will have 3 templates, one to create the virtual machine and two to resize it

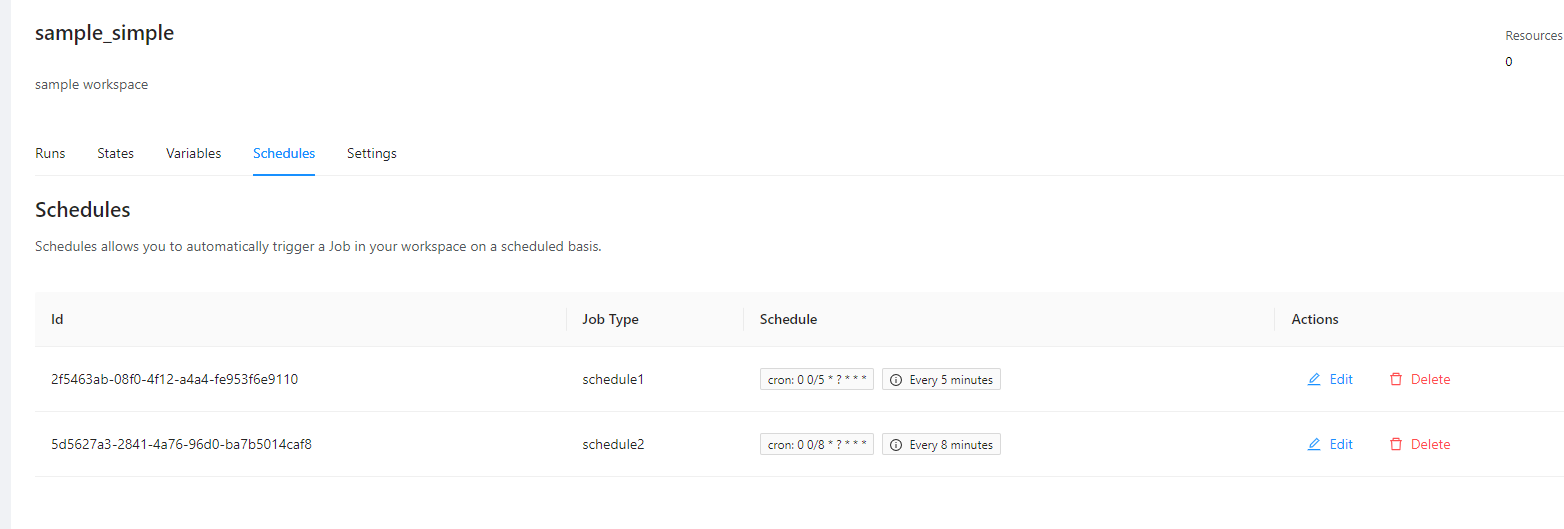

Once the workspace is executed creating the infrasctructure two automatic shedules will be define

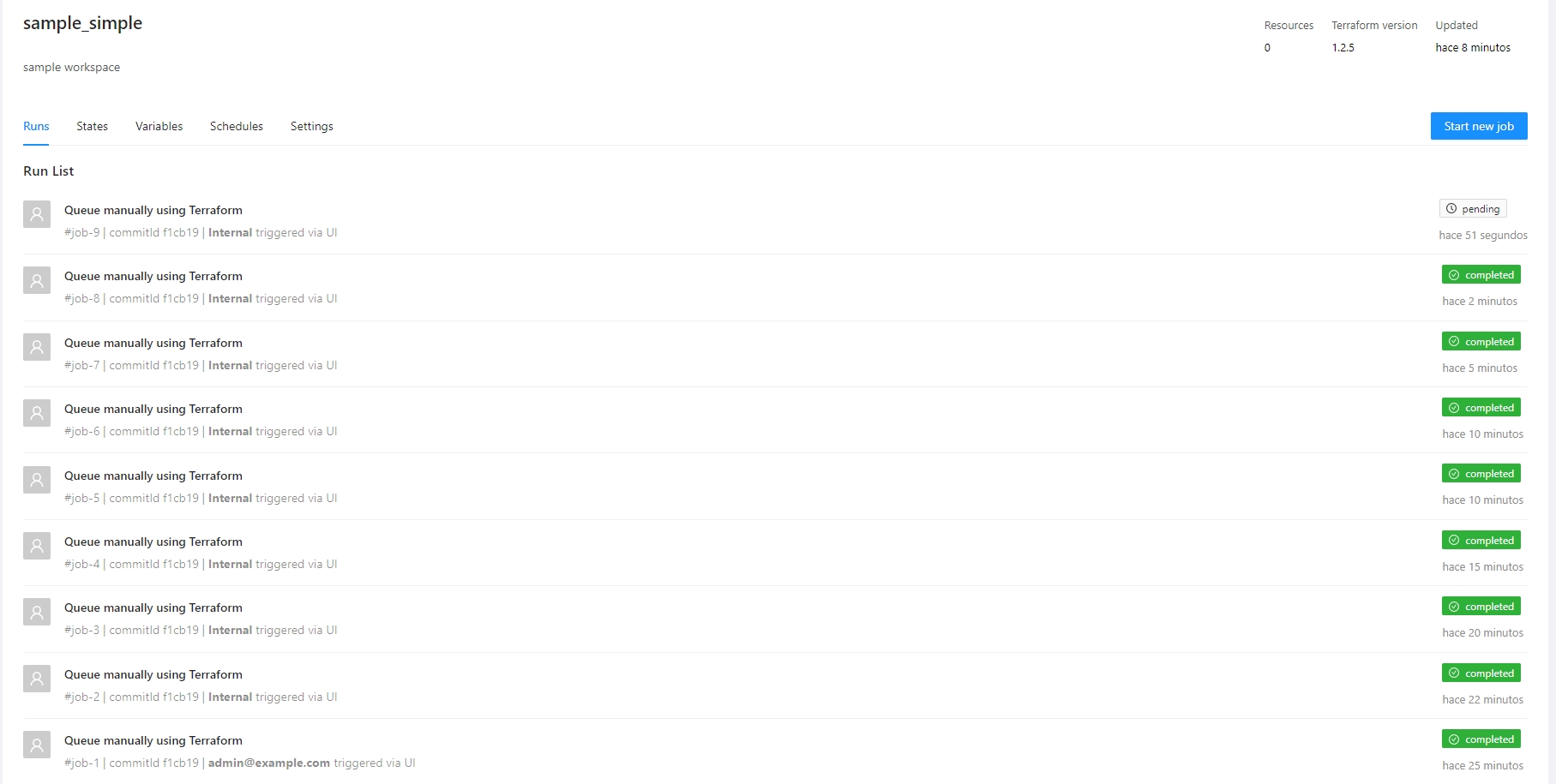

Differente jobs will be executed.

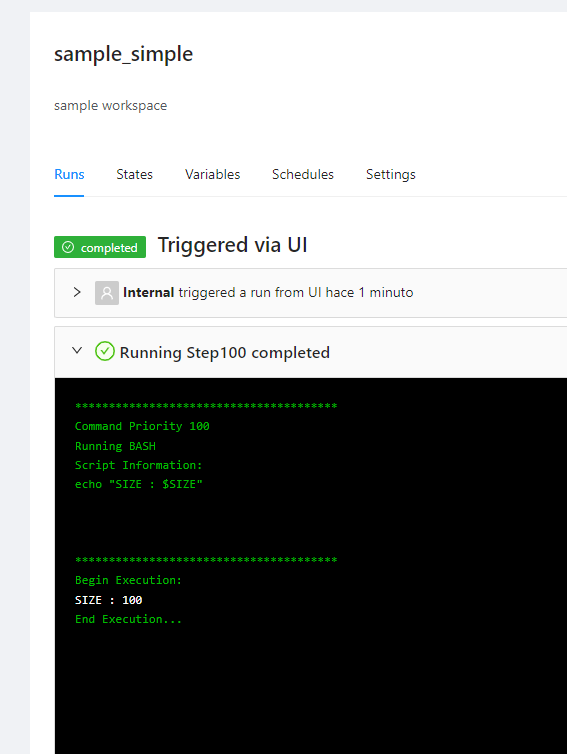

Resize Template (schedule1)

Inject the new size using global terraform variables

flow:
  - type: "customScripts"
    step: 100
    inputsTerraform:
      SIZE: $SIZE_SMALL
    commands:
      - runtime: "BASH"
        priority: 100
        before: true
        script: |
          echo "SIZE : $SIZE"

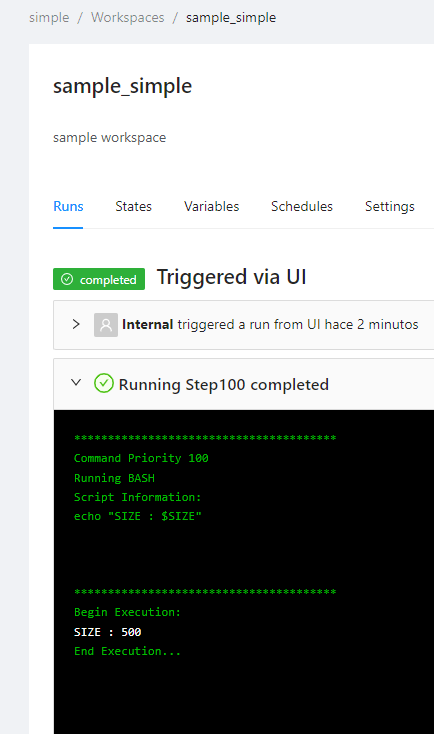

Resize Template (schedule2)

Inject the new size using global terraform variables

flow:
  - type: "customScripts"
    step: 100
    inputsTerraform:
      SIZE: $SIZE_BIG
    commands:
      - runtime: "BASH"
        priority: 100
        before: true
        script: |
          echo "SIZE : $SIZE"
