  1. User Guide
  2. Organizations

Templates

Templates allows you to customize the job workflow inside each workspace. You can define multiple templates inside each organization. Templates are written in yaml and you can specify each step to be executed once you use this template in the workspace. Lets see an example for a basic template:

Example 1:

flow:
  - name: "Plan"
    type: "terraformPlan"
    step: 100
  - name: "Apply"
    type: "terraformApply"
    step: 200

Example 2:

flow:
- type: "terraformPlanDestroy"
  name: "Terraform Plan Destroy from Terraform CLI"
  step: 100
- type: "approval"
  name: "Approve Plan from Terraform CLI"
  step: 150
  team: "TERRAFORM_CLI"
- type: "terraformApply"
  name: "Terraform Apply from Terraform CLI"
  step: 200

Example 3:

flow:
  - type: "terraformDestroy"
    step: 100
  - type: "disableWorkspace"
    step: 200

If you notice inside the flow section you can define any step required, for this case only 2 steps are defined. Using the type property you can specify the kind of step to be performed, in the above case we are using some default types like terraformPlan and terraformApply. However the power of terrakube is that you can extend your workflow to execute additional tasks using bash or groovy code. Lets see a more advanced template:

flow:
  - name: "Plan"
    type: "terraformPlan"
    step: 100
    commands:
      - runtime: "GROOVY"
        priority: 100
        before: true
        script: |
          @Grapes([
            @Grab('commons-io:commons-io:2.8.0'),
            @Grab('org.apache.commons:commons-compress:1.21'),
          ])

          import org.apache.commons.io.FileUtils

          class TerraTagDownloader {
            def downloadTerraTag(workingDirectory, version, os, arch) {
              String terraTagFile = "terratag_${version}_${os}_${arch}.tar.gz"
              String terraTagURL = "https://github.com/env0/terratag/releases/download/v${version}/${terraTagFile}"
              println "Downloading $terraTagURL"
              FileUtils.copyURLToFile(new URL(terraTagURL), new File("${workingDirectory}/${terraTagFile}"))
            }
          }
          new TerraTagDownloader().downloadTerraTag("$workingDirectory", "0.1.29", "darwin", "amd64")
          "TerraTag Download Compledted..."
      - runtime: "BASH"
        priority: 200
        before: true
        script: |
          cd $workingDirectory;
          tar -xvf terratag_0.1.29_darwin_amd64.tar.gz;
          chmod +x terratag;
          ./terratag -tags="{\"environment_id\": \"development\"}"
  - name: "Apply"
    type: "terraformApply"
    step: 300
  - name: "Destroy"
    type: "terraformDestroy"
    step: 400
flow:
  - name: "Plan"
    type: "terraformPlan"
    step: 100
    commands:
      - runtime: "GROOVY"
        priority: 100
        before: true
        script: |
          import TerraTag
          new TerraTag().loadTool(
            "$workingDirectory",
            "$bashToolsDirectory",
            "0.1.30")
          "Terratag download completed"

Persistent Context

Creating a Template

Manage VCS Templates permission is required to perform this action, please check Team Management for more info

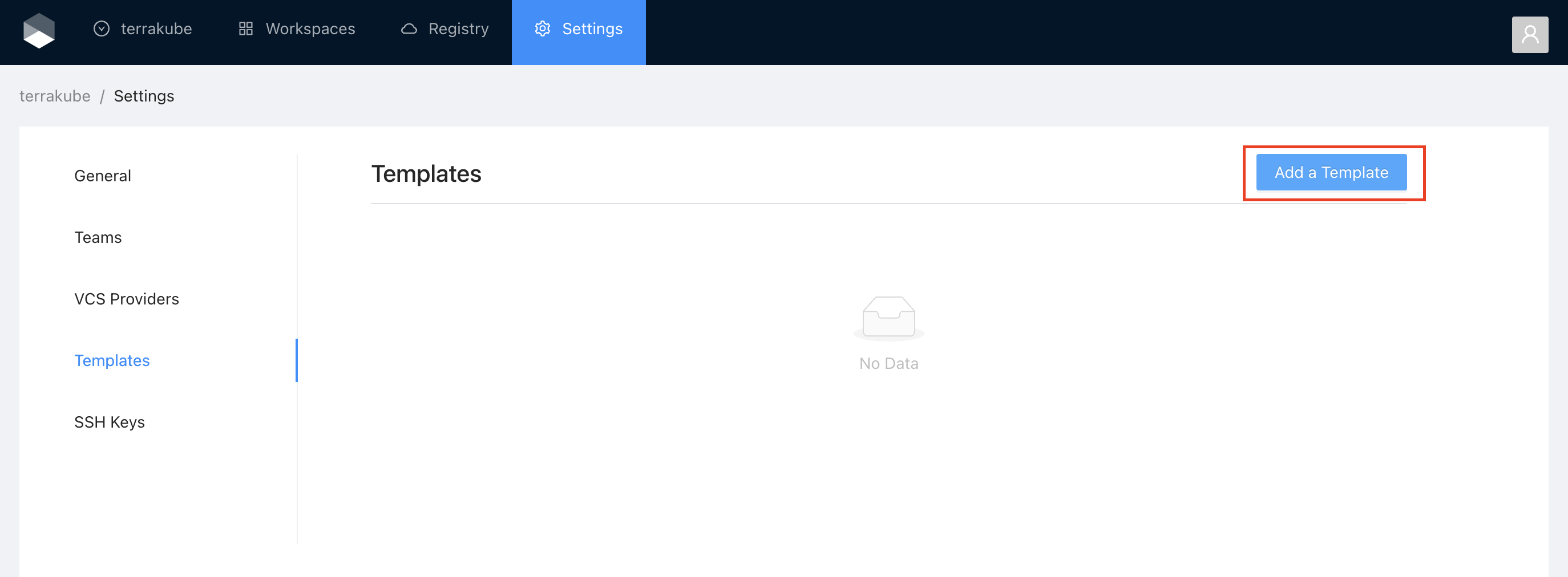

Once you are in the desired organization, click the Settings button, then in the left menu select the Templates option and click the Add Template button

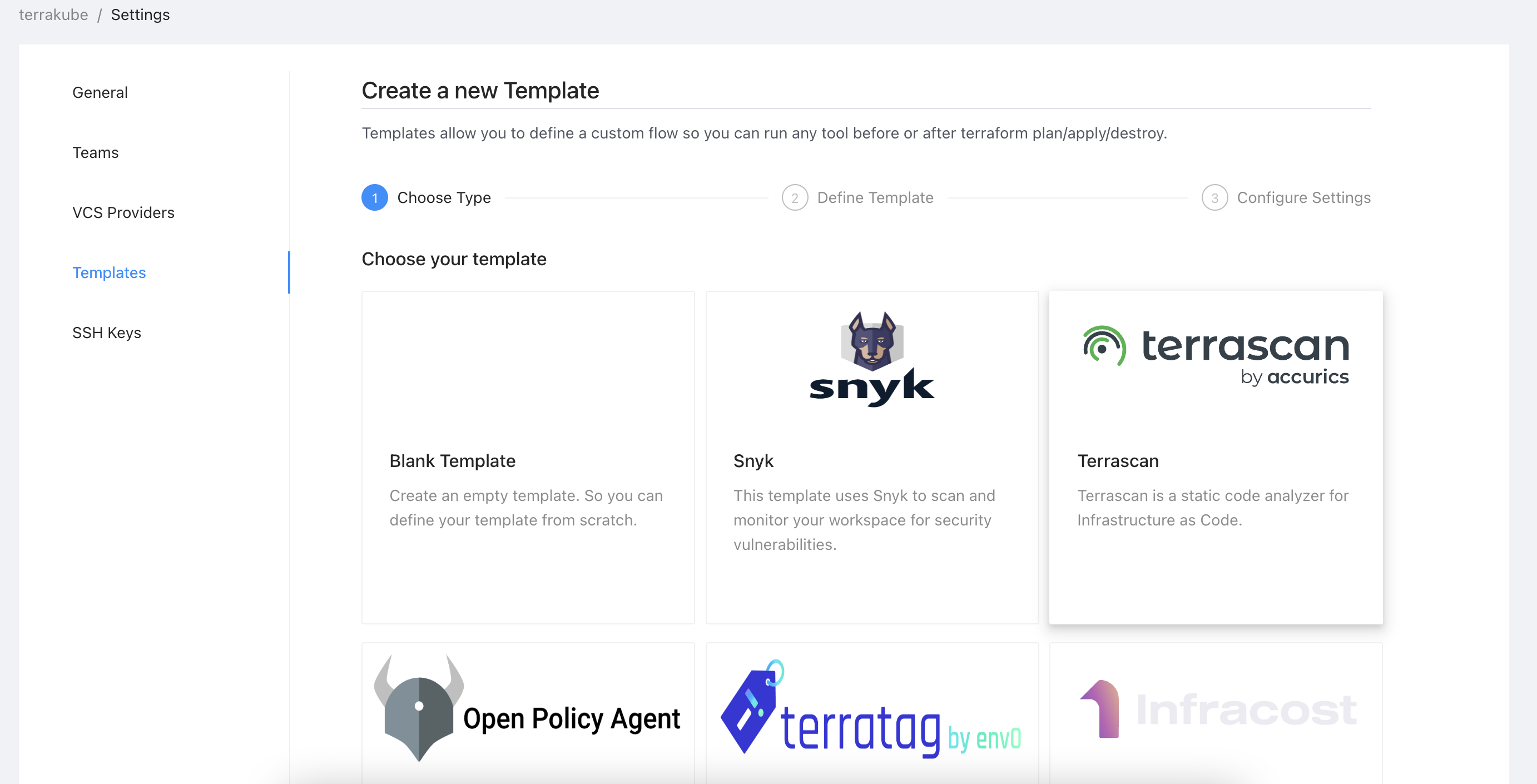

You will see a list of some predefined templates than you can utilize as a quick start or if you prefer you can click the Blank Template to start from scratch

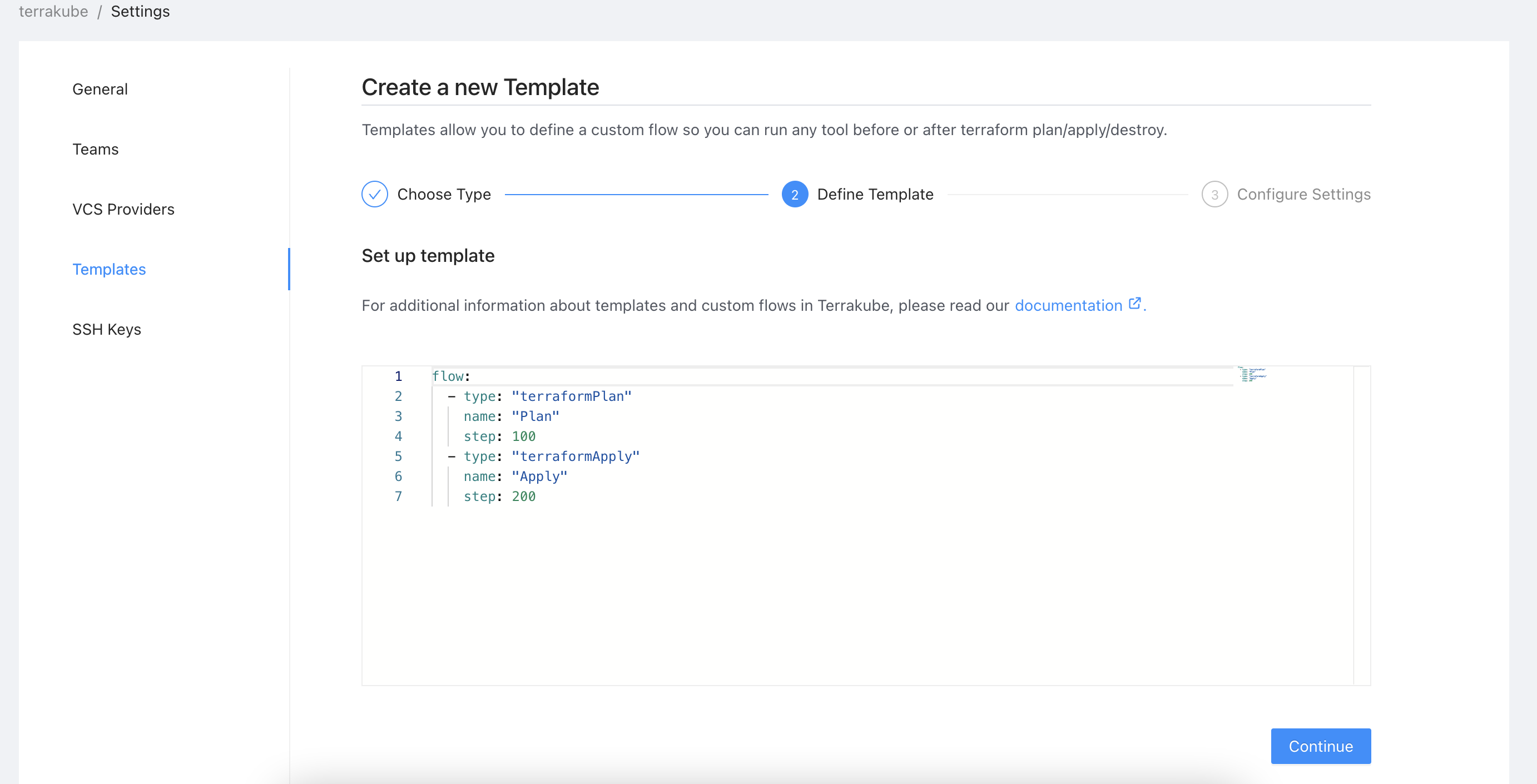

In the next screen you can define your template and when you are ready click the Continue button.

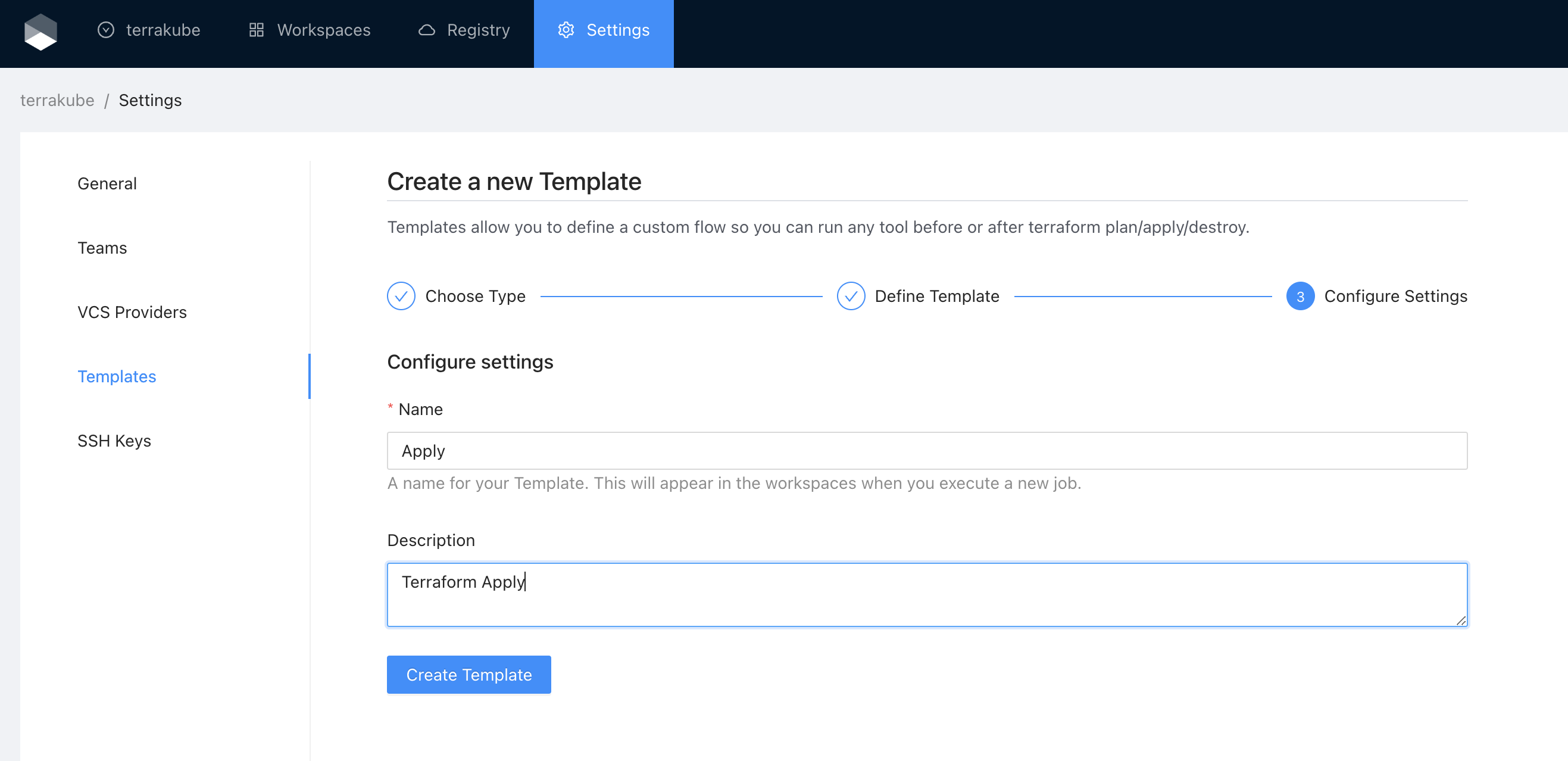

Finally, you can assign a name and description to your template and click the Create Template button.

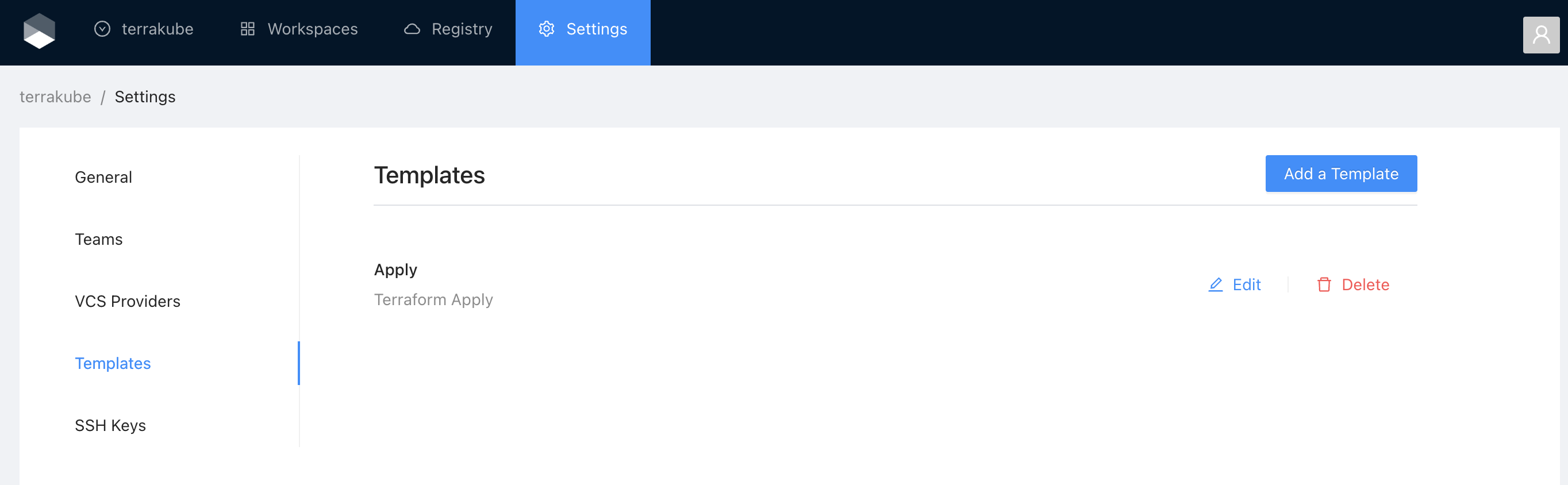

Now you template is ready and you can start using it in any workspace within your organization.

By default Terrakube don't create any template, so you have to define the templates in your organization based on your requirements.

Editing a Template

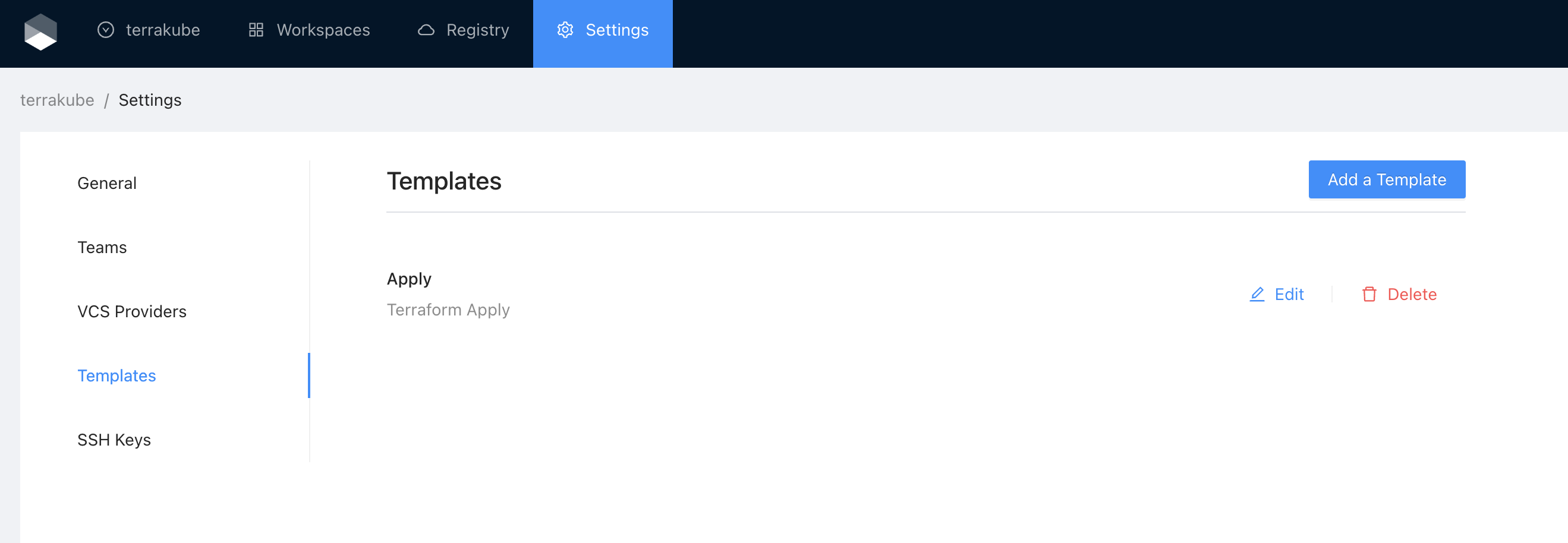

Click the Edit button next to the Template you would like to edit

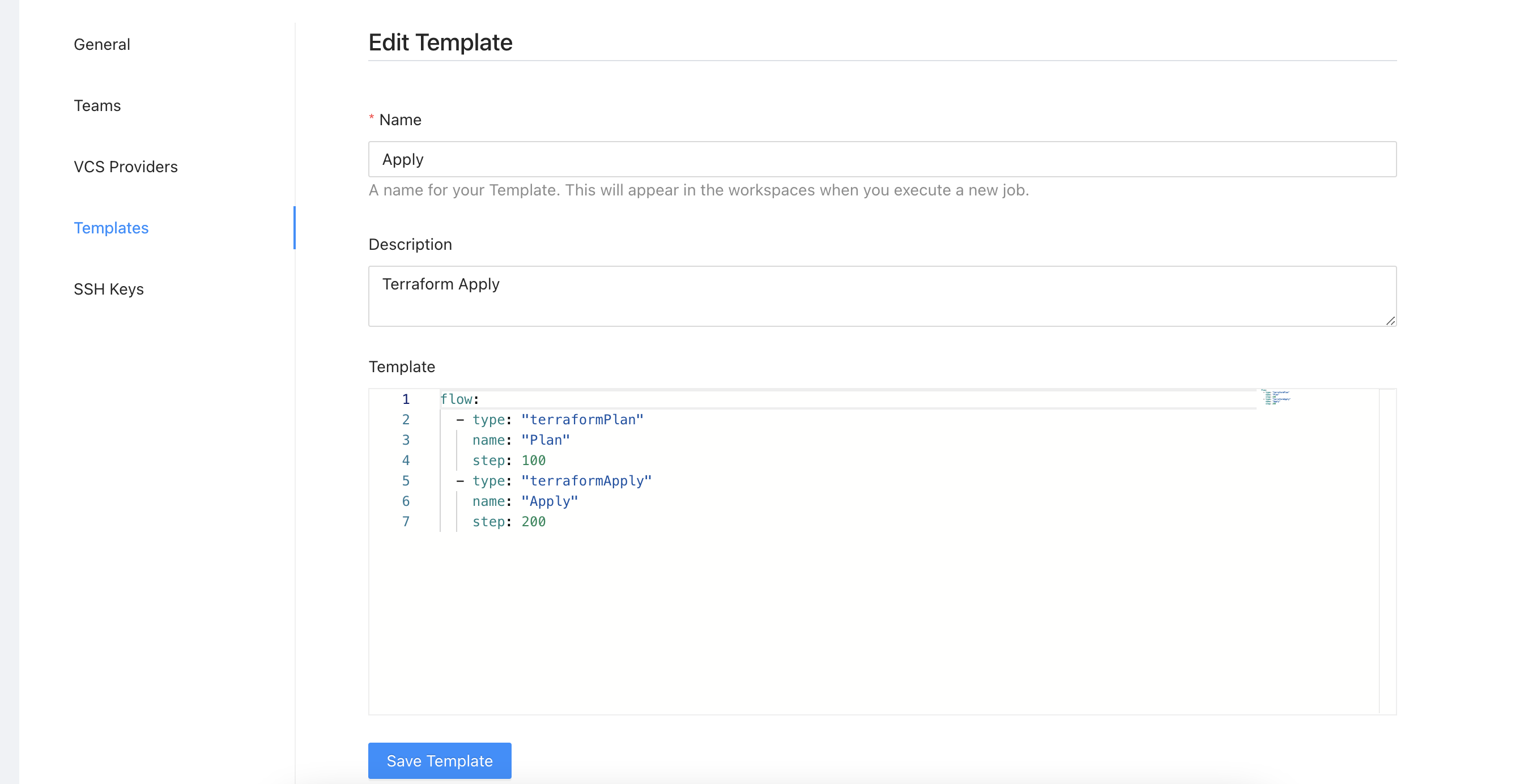

Edit your template definition, description or name as desired and when you are ready click the Save Template button

Deleting a Template

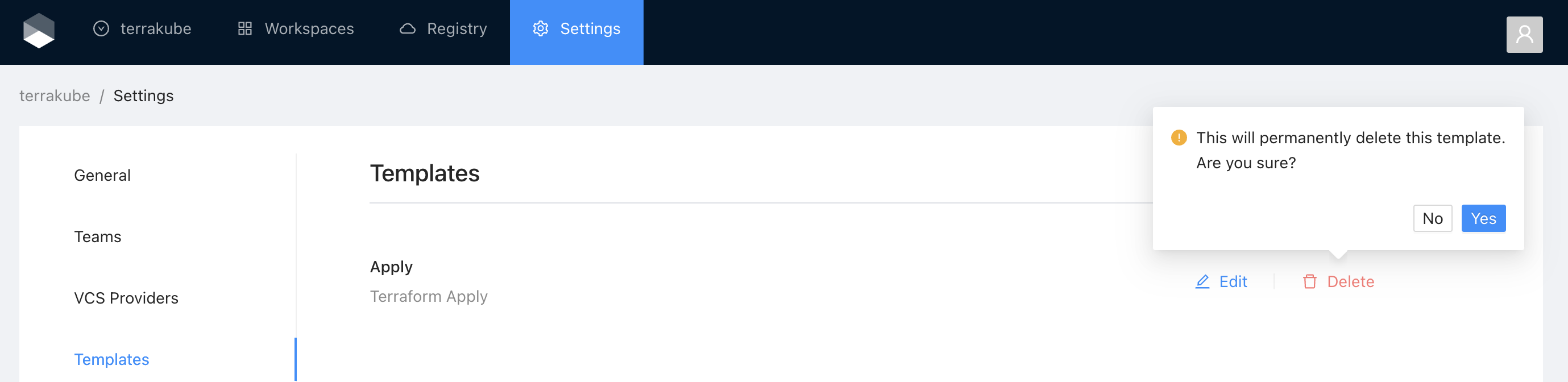

Click the Delete button next to the Template you want to delete and then click Yes to confirm the deletion

PreviousAPI TokensNextDefault Templates

Last updated 1 year ago

The previous example is using to add the environment_id to all the resources in the workspace. To acomplish that, the template defines some additional commands during the Terraform Plan, in this case a groovy class is utilized to download the Terratag binary, and a bash script is used to execute the terratag cli to append the required tags.

Using templates you can define all the business logic you need to execute in your workspace, basically you can integrate terrakube with any external tool. For example you can use to calculate the cost of the resources to be created in your workspace or verify some policies using .

Terrakube extensions can be stored inside a GIT repository that you can configure when staring the platform. This is an example repository that you can fork or customiza to create your custom extensions

There are some tools that are very common, and you don't want repeat the same code everytime or maybe other engineer already created the code and the logic to integrate with a specific tool. For these cases, inside the template is possible to reuse some logic using . Basically if someone else developed an integration with an external third party service, you don't need to implement it again, you can use the extension. Let's see how the template looks like using the :

If you notice the above script is more compact as is reusing some logic. If you want to simplify and reuse some templates in your organization, please check .

Using Templates you can even customize the UI for each job, see for more details.

To see the complete list for terrakube extensions see the . This repo is always growing so its possible the tool you need is already there. In this repo you can also see more templates examples for things like approvals, variable injection and so on.

If you need to store information generated on the steps defined in your template, you can use .

📓
Terratag
Infracost
Open Policy Agent
https://github.com/AzBuilder/terrakube-extensions
Terrakube extensions
Terratag extension
Import Templates
UI templates
github repo
persistent context
