# Amazon Cognito

{% hint style="warning" %}
AWS Cognito Authentication with Dex Connecor require Terrakube >= 2.6.0 and Helm Chart >= 2.0.0
{% endhint %}

### Requirements

* AWS Cognito
* AWS S3 Bucket

For this example lets image that you will be using the following domains to deploy Terrakube.

* registry.terrakube.aws.com
* ui.terrakube.aws.com
* api.terrakube.aws.com

### Setup AWS Cognito Authentication

You need to complete the AWS Cognito authentication setup for Dex using the OIDC connector. You can found information in this [link](https://dexidp.io/docs/connectors/oidc/)

You need to create a new Cognito user pool

<figure><img src="https://2695156030-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiAistJ55LNNLsrfZftuX%2Fuploads%2Fgit-blob-62175bc5acb0b6244a70f5147bf474383de4d422%2Fimage%20(114).png?alt=media" alt=""><figcaption></figcaption></figure>

You can keep the default values

<figure><img src="https://2695156030-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiAistJ55LNNLsrfZftuX%2Fuploads%2Fgit-blob-9d011a741ed01ab103e63f47b9bb85c4c67c2373%2Fimage%20(216).png?alt=media" alt=""><figcaption></figcaption></figure>

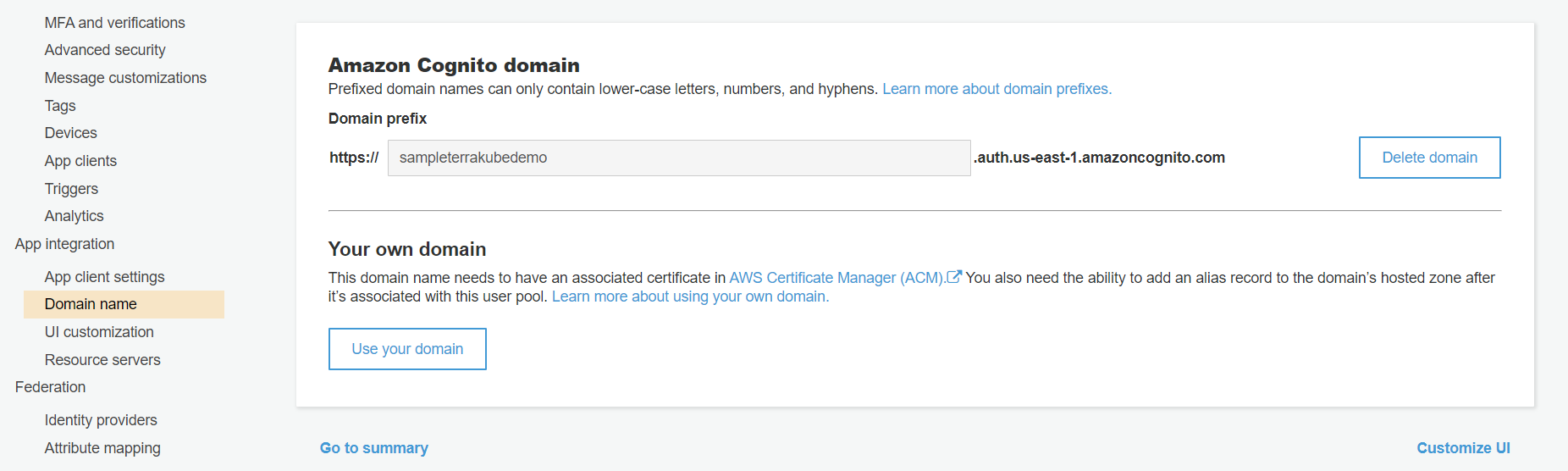

Add the domain name to cognito

<figure><img src="https://2695156030-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiAistJ55LNNLsrfZftuX%2Fuploads%2Fgit-blob-47f9db959ab3a44c9465bf2d6ea1af0c482c332e%2Fimage%20(145)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

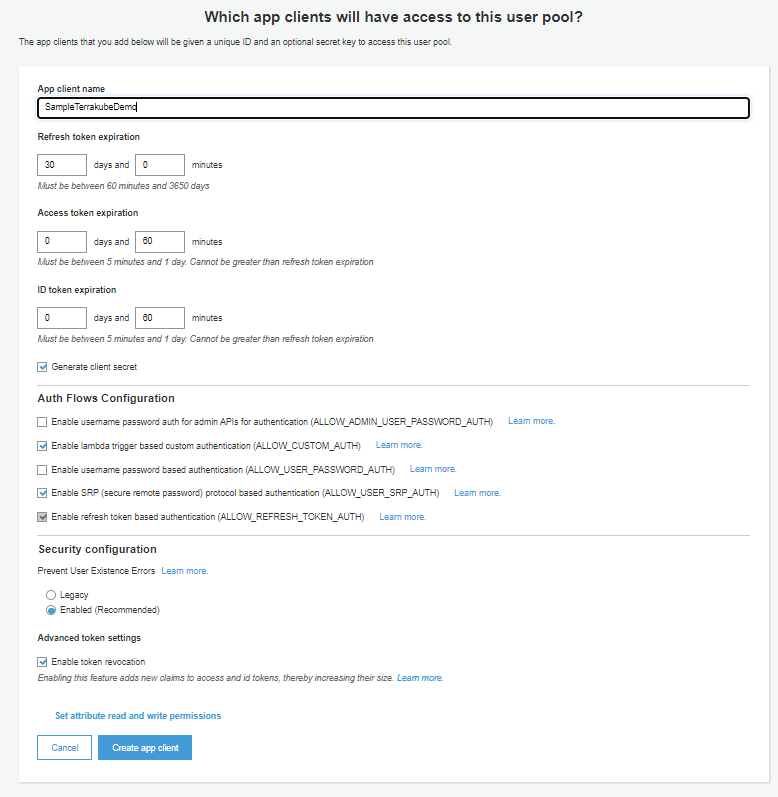

Once the user pool is created you will need to create a new application.

<figure><img src="https://2695156030-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiAistJ55LNNLsrfZftuX%2Fuploads%2Fgit-blob-e0c484778d51b6c0c8b7cfd68bc4eb26f3e8fe4c%2Fimage%20(124)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

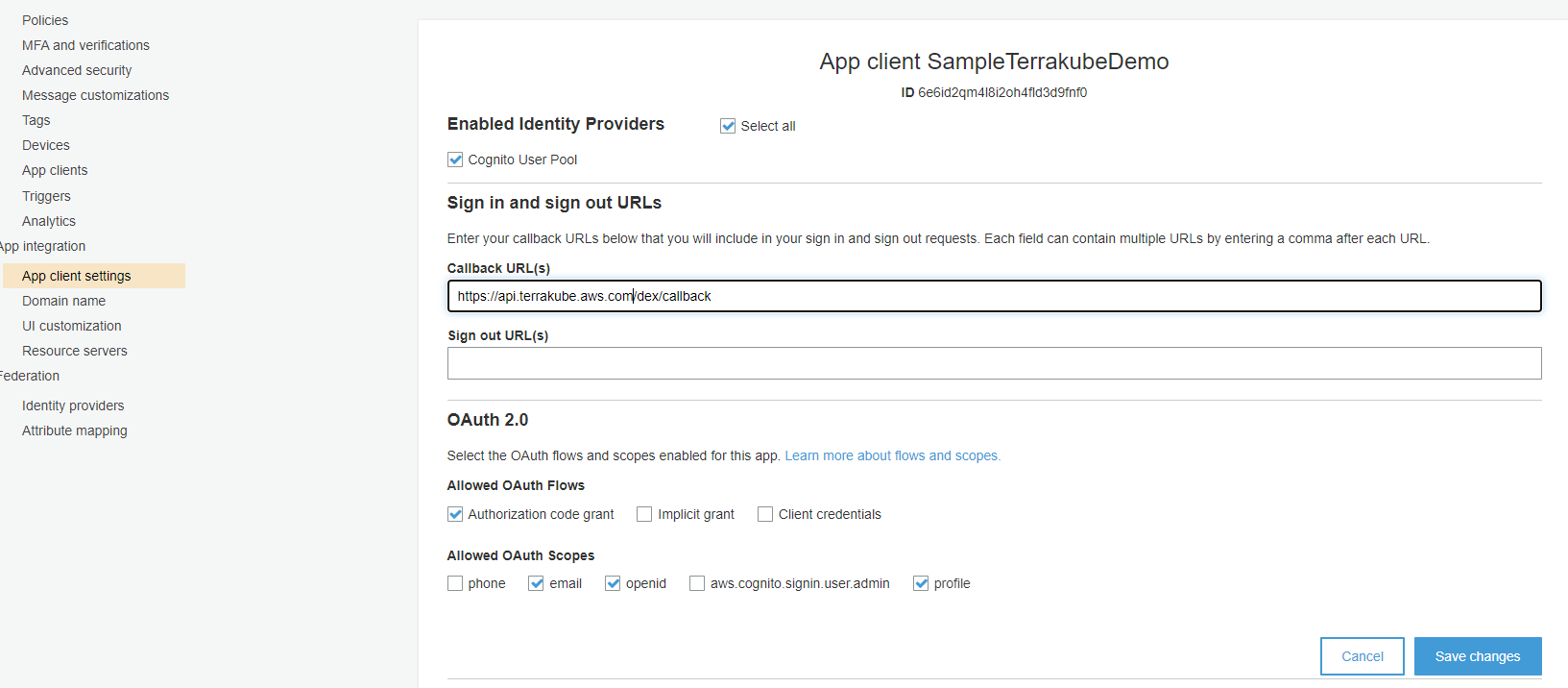

Update the application configuration and update the redirect URL configuration.

<figure><img src="https://2695156030-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiAistJ55LNNLsrfZftuX%2Fuploads%2Fgit-blob-ef44f7f335b2793e080462d02015400331a7f4f5%2Fimage%20(105)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

Now you can create the DEX configuration, you will use this config later when deploying the helm chart.

```
## Dex
dex:
  config:
    issuer: https://terrakube-api.yourdomain.com/dex #<<CHANGE_THIS>>
    storage:
      type: memory
    oauth2:
      responseTypes: ["code", "token", "id_token"]
      skipApprovalScreen: true
    web:
      allowedOrigins: ["*"]

    staticClients:
    - id: cognito
      redirectURIs:
      - 'https://ui.yourdomain.com' #<<CHANGE_THIS>>
      - 'http://localhost:3000'
      - 'http://localhost:10001/login'
      - 'http://localhost:10000/login'
      - '/device/callback'
      name: 'cognito'
      public: true

    connectors:
    - type: oidc
      id: cognito
      name: cognito
      config:
        issuer: "https://cognito-idp.XXXXX.amazonaws.com/XXXXXXX" #<<CHANGE_THIS>>
        clientID: "XXXX" #<<CHANGE_THIS>>
        clientSecret: "XXXXX" #<<CHANGE_THIS>>
        redirectURI: "https://terrakube-api.yourdomain.com/dex/callback" #<<CHANGE_THIS>>
        scopes:
          - openid
          - email
          - profile
        insecureSkipEmailVerified: true
        insecureEnableGroups: true
        userNameKey: "cognito:username"
        claimMapping:
          groups: "cognito:groups"
```

The firt step is to clone the repository.

```
git clone https://github.com/AzBuilder/terrakube-helm-chart.git
```

Replace *<\<CHANGE\_THIS>>* with the real values, create the values.yaml file and run the helm install

```
## Global Name
name: "terrakube"

## Terrakube Security
security:
  adminGroup: "<<CHANGE_THIS>>" # The value should be a valida azure ad group (example: TERRAKUBE_ADMIN)
  patSecret: "<<CHANGE_THIS>>"  # Sample Key 32 characters z6QHX!y@Nep2QDT!53vgH43^PjRXyC3X
  internalSecret: "<<CHANGE_THIS>>" # Sample Key 32 characters Kb^8cMerPNZV6hS!9!kcD*KuUPUBa^B3
  dexClientId: "cognito"
  dexClientScope: "email openid profile offline_access groups"

## Terraform Storage
storage:
  aws:
    accessKey: "XXXXX" #<<CHANGE_THIS>>
    secretKey: "XXXXX" #<<CHANGE_THIS>>
    bucketName: "XXXXX" #<<CHANGE_THIS>>
    region: "XXXXX" #<<CHANGE_THIS>>

## Dex
dex:
  config:
    issuer: https://terrakube-api.yourdomain.com/dex #<<CHANGE_THIS>>
    storage:
      type: memory
    oauth2:
      responseTypes: ["code", "token", "id_token"]
      skipApprovalScreen: true
    web:
      allowedOrigins: ["*"]

    staticClients:
    - id: cognito
      redirectURIs:
      - 'https://ui.yourdomain.com' #<<CHANGE_THIS>>
      - 'http://localhost:3000'
      - 'http://localhost:10001/login'
      - 'http://localhost:10000/login'
      - '/device/callback'
      name: 'cognito'
      public: true

    connectors:
    - type: oidc
      id: cognito
      name: cognito
      config:
        issuer: "https://cognito-idp.XXXXX.amazonaws.com/XXXXXXX" #<<CHANGE_THIS>>
        clientID: "XXXX" #<<CHANGE_THIS>>
        clientSecret: "XXXXX" #<<CHANGE_THIS>>
        redirectURI: "https://terrakube-api.yourdomain.com/dex/callback" #<<CHANGE_THIS>>
        scopes:
          - openid
          - email
          - profile
        insecureSkipEmailVerified: true
        insecureEnableGroups: true
        userNameKey: "cognito:username"
        claimMapping:
          groups: "cognito:groups"

## API properties
api:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"
  properties:
    databaseType: "H2"

## Executor properties
executor:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"
  properties:
    toolsRepository: "https://github.com/AzBuilder/terrakube-extensions"
    toolsBranch: "main"

## Registry properties
registry:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"

## UI Properties
ui:
  enabled: true
  replicaCount: "1"
  serviceType: "ClusterIP"

## Ingress properties
ingress:
  useTls: true
  ui:
    enabled: true
    domain: "ui.terrakube.azure.com"
    path: "/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      cert-manager.io/cluster-issuer: letsencrypt
  api:
    enabled: true
    domain: "api.terrakube.azure.com"
    path: "/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/configuration-snippet: "proxy_set_header Authorization $http_authorization;"
      cert-manager.io/cluster-issuer: letsencrypt
  registry:
    enabled: true
    domain: "registry.terrakube.azure.com"
    path: "/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/configuration-snippet: "proxy_set_header Authorization $http_authorization;"
      cert-manager.io/cluster-issuer: letsencrypt
  dex:
    enabled: true
    path: "/dex/(.*)"
    pathType: "Prefix"
    annotations:
      kubernetes.io/ingress.class: nginx
      nginx.ingress.kubernetes.io/use-regex: "true"
      nginx.ingress.kubernetes.io/configuration-snippet: "proxy_set_header Authorization $http_authorization;"
      cert-manager.io/cluster-issuer: letsencrypt

```

Run the installation

```bash
helm install --debug --values ./values.yaml terrakube ./terrakube-helm-chart/ -n terrakube
```

{% hint style="warning" %}
For any question or feedback please open an issue in our [helm chart repository](https://github.com/AzBuilder/terrakube-helm-chart)
{% endhint %}
