📐Architecture

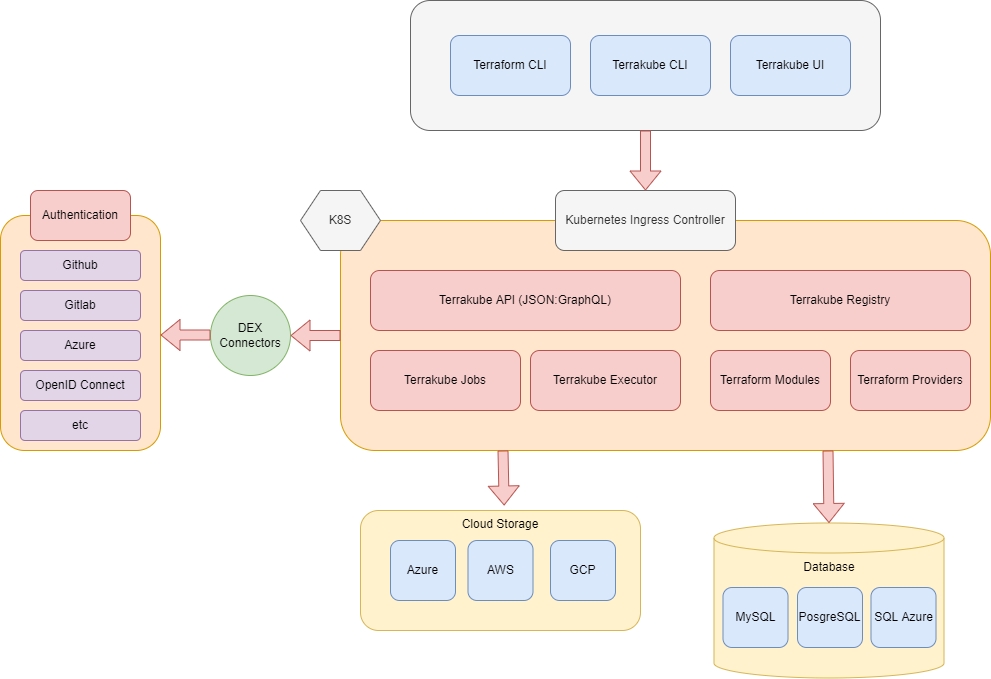

This is the high level architecture of the platform

Component descriptions:

• Terrakube API:

  • Expose a JSON:API or GraphQL API providing endpoints to handle:

    • Organizations.

    • Workspace API with the following support:

      • Terraform state history

      • Terraform output history

      • Terraform Variables (public/secrets)

      • Environment Variables (public/secrets)

      • Cron like support to schedule the jobs execution programmatically

    • Job.

      • Custom terraform flows based on Terrakube Configuration Language

    • Modules

    • Providers

    • Teams

    • Teamplate

• Terrakube Jobs:

  • Automatic process that check for any pending job operations in any workspace to trigger a custom logic flow based on Terrakube Configuration Language

• Terrakube Executor:

  • Service that executes the Terrakube job operations written in Terrakube Configuration Language, handle the terraform state and outputs using cloud storage providers like Azure Storage Account

• Terrakube Open Registry:

  • This component allows to expose an open source private repository protected by Dex that you can use to handle your company private terraform modules or providers.

• Cloud Storage:

  • Cloud storage to handle terraform state, outputs and terraform modules used by terraform CLI

• RDBMS:

  • The platform can be used with any database supported by the Liquibase project.

• Security:

  • All authentication and authorization is handle using Dex.

• Terrakube CLI:

  • Go based CLI that can communicate with the Terrakube API and execute operation for organizations, workspaces, jobs, templates, modules or providers

• Terrakube UI:

  • React based frontend to handle all Terrakube Operations.

Terrakube can installed in any kuberentes cluster using any cloud provider. We provide a Helm Chart that can be found in the following link.
