OpenBao/Vault

Requirementes

The dynamic provider credential setup in OpenBao/Vault can be found inside the following link:

https://github.com/AzBuilder/terrakube/tree/main/dynamic-credential-setup/openbao-vault

The code will also create a sample workspace with all the require environment variables that can be used to test the functionality using the CLI driven workflow.

Make sure to mount your public and private key to the API container as explained here

Mare sure the private key is in "pkcs8" format

Validate the following terrakube api endpoints are working:

• https://terrakube-api.mydomain.com/.well-known/jwks

• https://terrakube-api.mydomain.com/.well-known/openid-configuration

Setup OpenBao/Vault

Running openbao in development mode

bao server -dev -dev-root-token-id="dev-only-token"

Use the following openbao policy

# Allow tokens to query themselves
path "auth/token/lookup-self" {
  capabilities = ["read"]
}

# Allow tokens to renew themselves
path "auth/token/renew-self" {
  capabilities = ["update"]
}

# Allow tokens to revoke themselves
path "auth/token/revoke-self" {
  capabilities = ["update"]
}

# Configure the actual secrets the token should have access to
path "shared/data/kv/creds" {
  capabilities = ["read"]
}

JWT Role

{
  "policies": ["tfc-policy"],
  "role_type": "jwt",
  "bound_audiences": ["vault.workload.identity"],
  "bound_claims_type": "glob",
  "user_claim": "terrakube_workspace_name",
  "bound_claims": {
    "sub":"organization:simple:workspace:vault"
  },
  "token_ttl": "20m"
}

Adding test values, policy and jwt role to openbao with the following:

export VAULT_ADDR='http://localhost:8200'
bao login dev-only-token
bao auth enable userpass
bao write auth/userpass/users/terrakube password=p@ssw0rd
bao auth enable approle
bao write auth/approle/role/terrakube-role secret_id_ttl=10m token_ttl=20m token_max_ttl=30m
bao secrets enable -path shared -version 2 kv
bao kv put -mount shared kv/creds username=terrakube password=p@ssw0rd
bao auth enable jwt
bao write auth/jwt/config oidc_discovery_url="https://terrakube-api.platform.local" bound_issuer="https://terrakube-api.platform.local"
bao policy write tfc-policy terrakube-policy.hcl
bao write auth/jwt/role/tfc-role @vault-jwt-auth-role.json

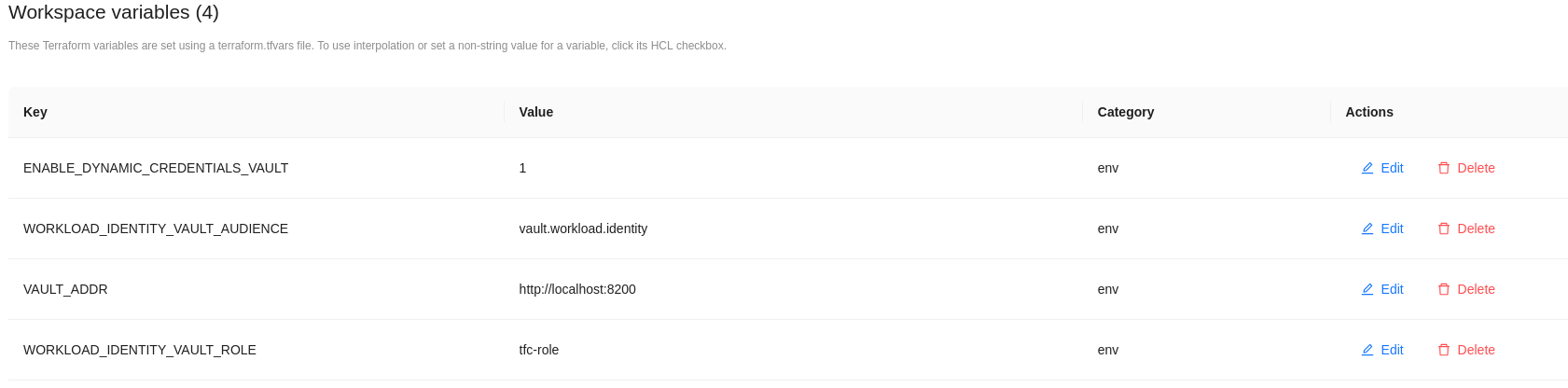

At the workspace level we need to define the following environment variables:

ENABLE_DYNAMIC_CREDENTIALS_VAULT=1
WORKLOAD_IDENTITY_VAULT_AUDIENCE=vault.workload.identity
VAULT_ADDR=http://localhost:8200
WORKLOAD_IDENTITY_VAULT_ROLE=tfc-role

Example:

Now running cli driven workflow with the following terraform code to test

terraform {
  cloud {
    hostname = "terrakube-api.platform.local"
    organization = "simple"
    workspaces {
      name = "vault"
    }
  }
}

provider vault {
  skip_tls_verify = true
  skip_child_token = true
  }

data "vault_kv_secret_v2" "password" {
  mount = "shared"
  name  = "kv/creds"
}

It will show the following:

user@pop-os:~/git/terrakube/vault$ terraform plan

Running plan in Terraform Cloud. Output will stream here. Pressing Ctrl-C
will stop streaming the logs, but will not stop the plan running remotely.

Preparing the remote plan...

To view this run in a browser, visit:
https://terrakube-api.platform.local/app/simple/vault/runs/run-1

Waiting for the plan to start...

***************************************
Running Terraform PLAN
***************************************
data.vault_kv_secret_v2.password: Reading...
data.vault_kv_secret_v2.password: Read complete after 0s [id=shared/data/kv/creds]

No changes. Your infrastructure matches the configuration.
