Self-Hosted Agents

This feature is supported from version 2.20.0 and helm chart version 3.16.0

Terrakube allow to have one or multiple agents to run jobs, you can have as many agents as you want for a single organization.

To use this feature you could deploy a single executor component using the following values:

# Executor should be enable but we need to customize the apiServiceUrl
executor:
  enabled: true
  apiServiceUrl: "http://terrakube-api-service.terrakube:8080" ## The API is in another namespace called "terrakube"

# We need to disable the default openLdap but we need to provide the internal secret
# so the executor can authenticat with the API and the Registry
security:
  useOpenLDAP: false
  internalSecret: "AxxPdgpCi72f8WhMXCTGhtfMRp6AuBfj"

# We need to disable dex in this deployment
dex:
  enabled: false

# We need to disable default storage MINIO and set some custom values
# in this example will be deploying like using an external MINIO
#(other backend storage could be used too)
storage:
  defaultStorage: false
  minio:
    accessKey: "admin"
    secretKey: "superadmin"
    bucketName: "terrakube"
    endpoint: "http://terrakube-minio.terrakube:9000" ## MINIO is in another namespace called "terrakube"

# We need to disable API, the default redis and default postgresql database
# But we need to provide some properties like the redis connection
api:
  enabled: false
  defaultRedis: false
  defaultDatabase: false
  properties:
    redisHostname: "terrakube-redis-master.terrakube" ## REDIS is in another namespace called "terrakube"
    redisPassword: "7p9iWVeRV4S944"

# We need to disable registry deployment
registry:
  enabled: false

# We need to disable ui deployment
ui:
  enabled: false

# We need to disable the ingress configuration
# but we need to specify the api and registry URL
ingress:
  useTls: false
  includeTlsHosts: false
  ui:
    enabled: false
  api:
    enabled: false
    domain: "terrakube-api.minikube.net"
  registry:
    enabled: false
    domain: "terrakube-reg.minikube.net"
  dex:
    enabled: false

The above values are assuming the we have deploy terrakube using the domain "minikube.net" inside a namespace called "terrakube"

Now that we have our values.yaml we can use the following helm command:

helm install --debug --values ./your-values.yaml terrakube terrakube-repo/terrakube -n self-hosted-executor

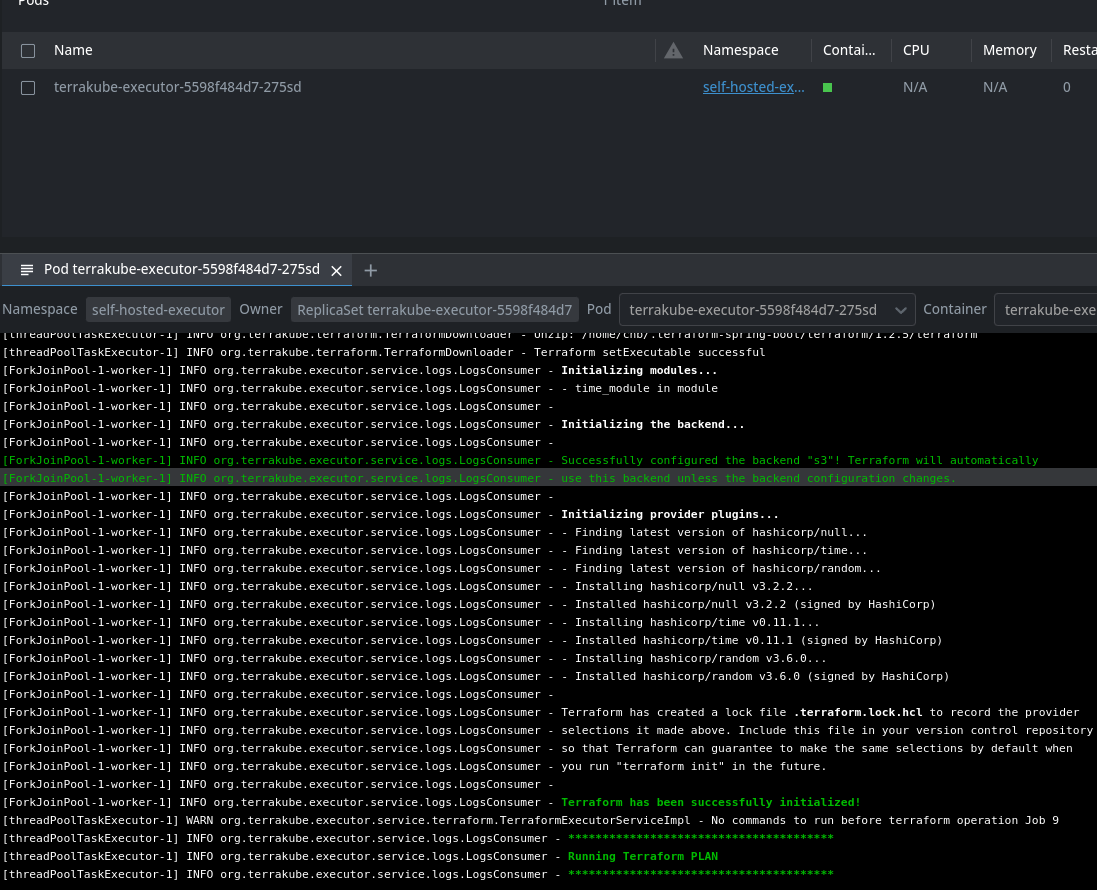

Now we have a single executor component ready to accept jobs, or we can increase executor.replicaCount to run a pool of agents:

Scaling to multiple replicas

Reliable multi-replica scheduling requires Terrakube 2.33+ and Helm chart 4.7.7+. On earlier versions, a Kubernetes Service could round-robin an incoming job to a pod that was already mid-run, since each executor pod only ever processes one job at a time.

From 2.33 onward, an executor pod publishes REFUSING_TRAFFIC on its readiness probe for the duration of a job, so Kubernetes pulls it out of the Service's endpoints as soon as it picks up work, and puts it back once it's free. This makes it safe to run executor.replicaCount greater than 1 as a static pool — there's no autoscaling, so size the pool to your expected peak concurrent job count.

Two values control this behavior:

executor:
  replicaCount: "3"
  properties:
    # Longest a single job may run before this pod is marked unhealthy (liveness)
    # so Kubernetes restarts it - covers a hung terraform process or a
    # looping hook script.
    maxJobDurationMinutes: "360"
  readinessProbe:
    # Low periodSeconds/failureThreshold so a pod that just started a job is
    # pulled out of the Service's endpoints almost immediately.
    periodSeconds: 2
    failureThreshold: 1

Ephemeral executors (see Ephemeral Agents) skip restoring ACCEPTING_TRAFFIC after a job, since the pod is about to be torn down anyway.

Admission control backstops the readiness probe. Even with fast readiness polling, Kubernetes can still route a second job to a pod before its REFUSING_TRAFFIC state has propagated — in practice this showed up as several jobs landing on the same pod within a couple of seconds while other replicas sat idle. A busy persistent executor pod now rejects a second concurrent job outright with 503 Service Unavailable instead of queuing it locally; the API scheduler treats 503 as retryable and reassigns the job to another pod. This is purely a safety net underneath the readiness-probe behavior above — it doesn't change how many jobs a pod can run at once (still one) or require any configuration.

The API dispatcher keeps queued work in first-in, first-out order while it looks for an available executor. If an executor stops responding after a job has been dispatched, Terrakube detects the stale dispatch and returns the job to the queue so another healthy replica can run it. This recovery is automatic; use the existing job-status and executor logs when investigating a repeated failure.
