# External Redis

By default the helm chart is using bitnami redis, this container is only for testing purposes and for a real cluster it is better to use an external redis.

To enable it, the following values can be used:

```yaml
api:
  defaultRedis: false
  env:
  - name: TerrakubeRedisSSL
    value: "true"
  - name: TerrakubeRedisTruststorePath
    value: /layers/paketo-buildpacks_bellsoft-liberica/jre/lib/security/cacerts
  - name: TerrakubeRedisTruststorePassword
    value: changeit
  properties:
    redisHostname: "MY-REDIS-IN-AZURE.redis.cache.windows.net"
    redisPassword: "MY-REDIS-ACCESS-KEY"
    redisPort: "6380"

executor:
  env:
  - name: SERVICE_BINDING_ROOT
    value: /mnt/platform/bindings
  - name: TerrakubeRedisSSL
    value: "true"
  - name: TerrakubeRedisTruststorePath
    value: /layers/paketo-buildpacks_bellsoft-liberica/jre/lib/security/cacerts
  - name: TerrakubeRedisTruststorePassword
    value: changeit
```

{% hint style="warning" %}
"changeit" is the default password for the java keystore included in the container in this path "/layers/paketo-buildpacks\_bellsoft-liberica/jre/lib/security/cacerts"
{% endhint %}

### Ephemeral Executor with Redis SSL

{% hint style="info" %}
Using EPHEMERAL\_JOB\_ENV\_VARS is supported from version 2.28.0
{% endhint %}

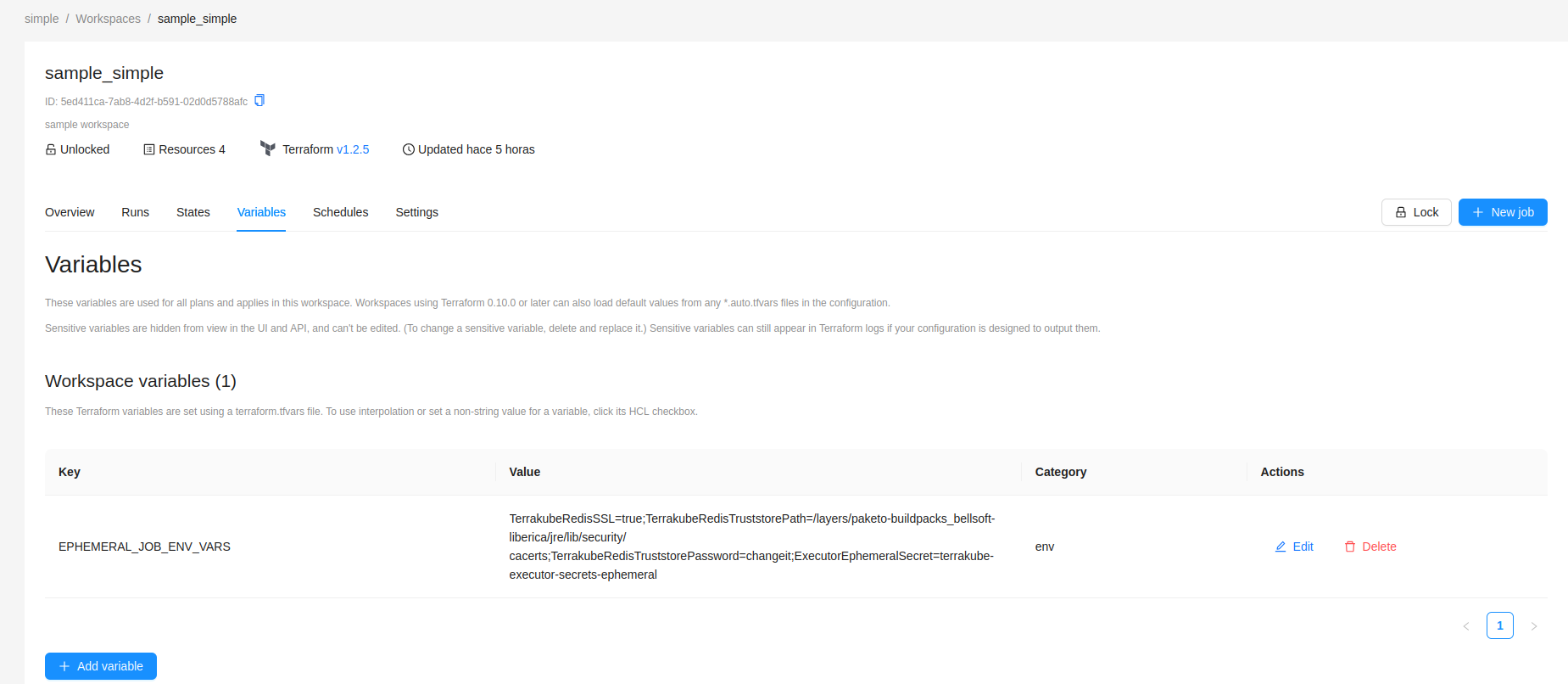

To add the additional environment variables to the ephemeral executor the following could be used:

<figure><img src="https://3934308512-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FCtajpHVKO4bym06TrmbV%2Fuploads%2Fgit-blob-c32256f72cd387a3d8303fd366d9bbbef3f28746%2Fimage%20(3).png?alt=media" alt=""><figcaption></figcaption></figure>

Value:

```
EPHEMERAL_JOB_ENV_VARS=TerrakubeRedisSSL=true;TerrakubeRedisTruststorePath=/layers/paketo-buildpacks_bellsoft-liberica/jre/lib/security/cacerts;TerrakubeRedisTruststorePassword=changeit;ExecutorEphemeralSecret=terrakube-executor-secrets-ephemeral
```


---
