Terrakube components support by default to enable effective observability.

To enable telemetry inside the Terrakube components please add the following environment variable:

OTEL_JAVAAGENT_ENABLE=true

Terrakube API, Registry and Executor support the setup for now from version 2.12.0.

UI support will be added in the future.

Once the open telemetry agent is enable we can use other environment variables to setup the monitoring for our application for example to enable jaeger we could add the following using addtional environment variables:

OTEL_TRACES_EXPORTER=jaeger
OTEL_EXPORTER_JAEGER_ENDPOINT=http://jaeger-all-in-one:14250
OTEL_SERVICE_NAME=TERRAKUBE-API

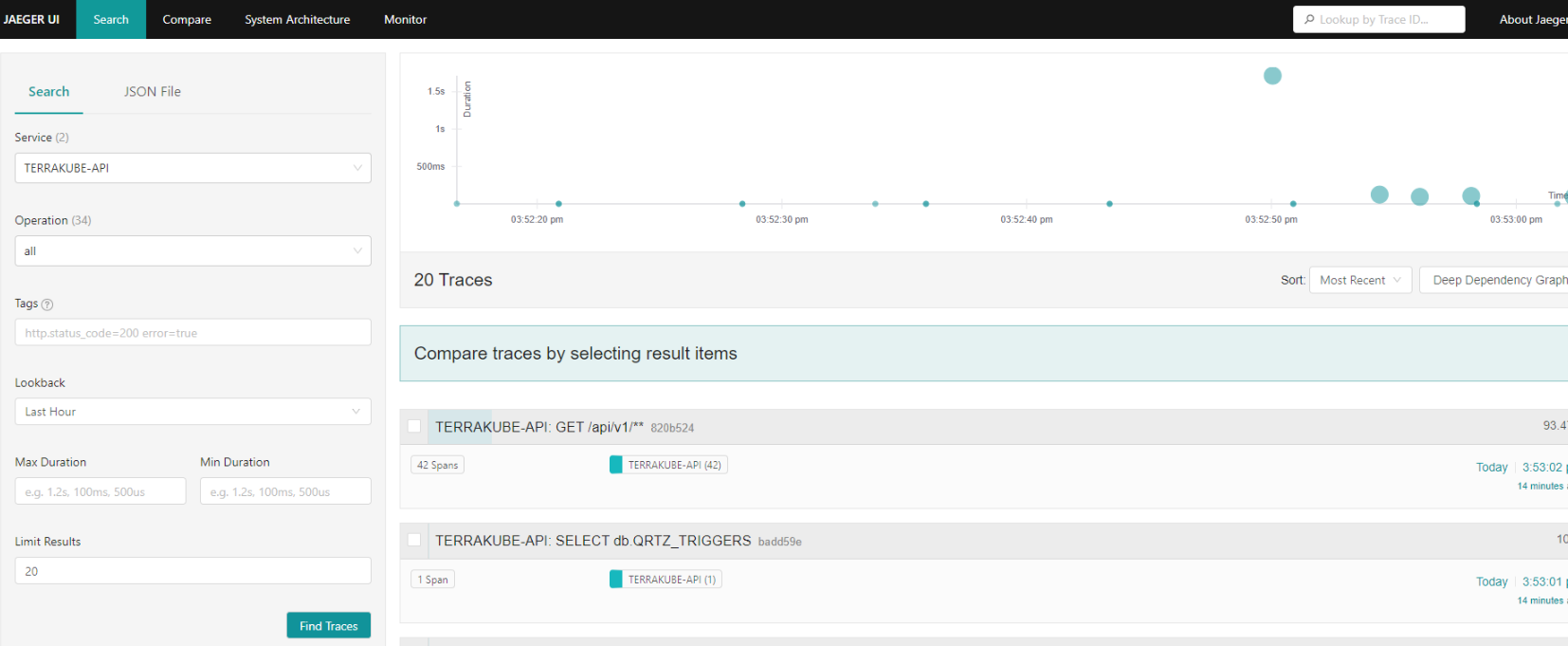

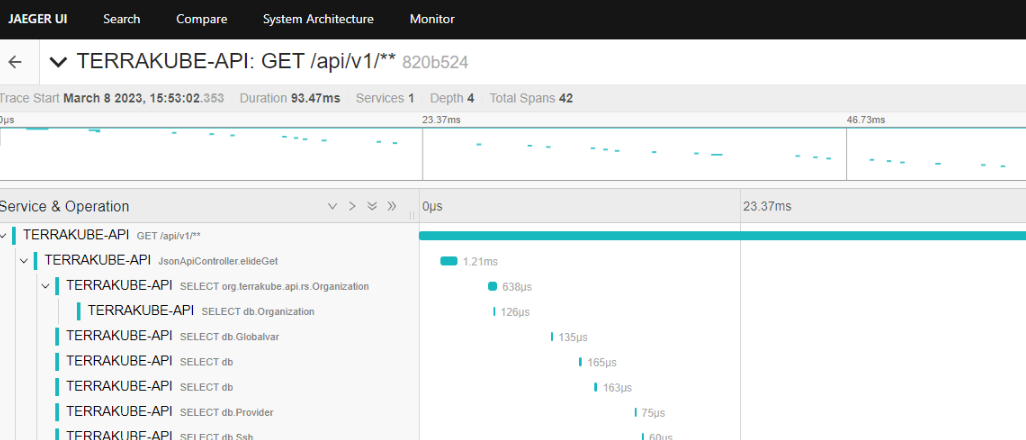

Now we can go the jaeger ui to see if everything is working as expected.

There are several differente configuration options for example:

Jaeger exporter

System property
Environment variable
Description

otel.traces.exporter=jaeger

OTEL_TRACES_EXPORTER=jaeger

Select the Jaeger exporter

otel.exporter.jaeger.endpoint

OTEL_EXPORTER_JAEGER_ENDPOINT

The Jaeger gRPC endpoint to connect to. Default is http://localhost:14250.

otel.exporter.jaeger.timeout

OTEL_EXPORTER_JAEGER_TIMEOUT

The maximum waiting time, in milliseconds, allowed to send each batch. Default is 10000.

Zipkin exporter

System property
Environment variable
Description

otel.traces.exporter=zipkin

OTEL_TRACES_EXPORTER=zipkin

Select the Zipkin exporter

otel.exporter.zipkin.endpoint

OTEL_EXPORTER_ZIPKIN_ENDPOINT

The Zipkin endpoint to connect to. Default is http://localhost:9411/api/v2/spans. Currently only HTTP is supported.

Prometheus exporter

System property
Environment variable
Description

otel.metrics.exporter=prometheus

OTEL_METRICS_EXPORTER=prometheus

Select the Prometheus exporter

otel.exporter.prometheus.port

OTEL_EXPORTER_PROMETHEUS_PORT

The local port used to bind the prometheus metric server. Default is 9464.

otel.exporter.prometheus.host

OTEL_EXPORTER_PROMETHEUS_HOST

The local address used to bind the prometheus metric server. Default is 0.0.0.0.

Open Telemetry Example

One small example to show how to use open telemetry with docker compose can be found in the following URL:

The exporter. This exporter uses gRPC for its communications protocol.

The exporter. It sends JSON in to a specified HTTP URL.

The exporter.

For more information please check, .

📥
🚦
Jaeger
Zipkin
Zipkin format
Prometheus
the official open telemetry documentation
Open Telemetry
https://github.com/AzBuilder/terrakube/tree/main/telemetry-compose
